Project Overview

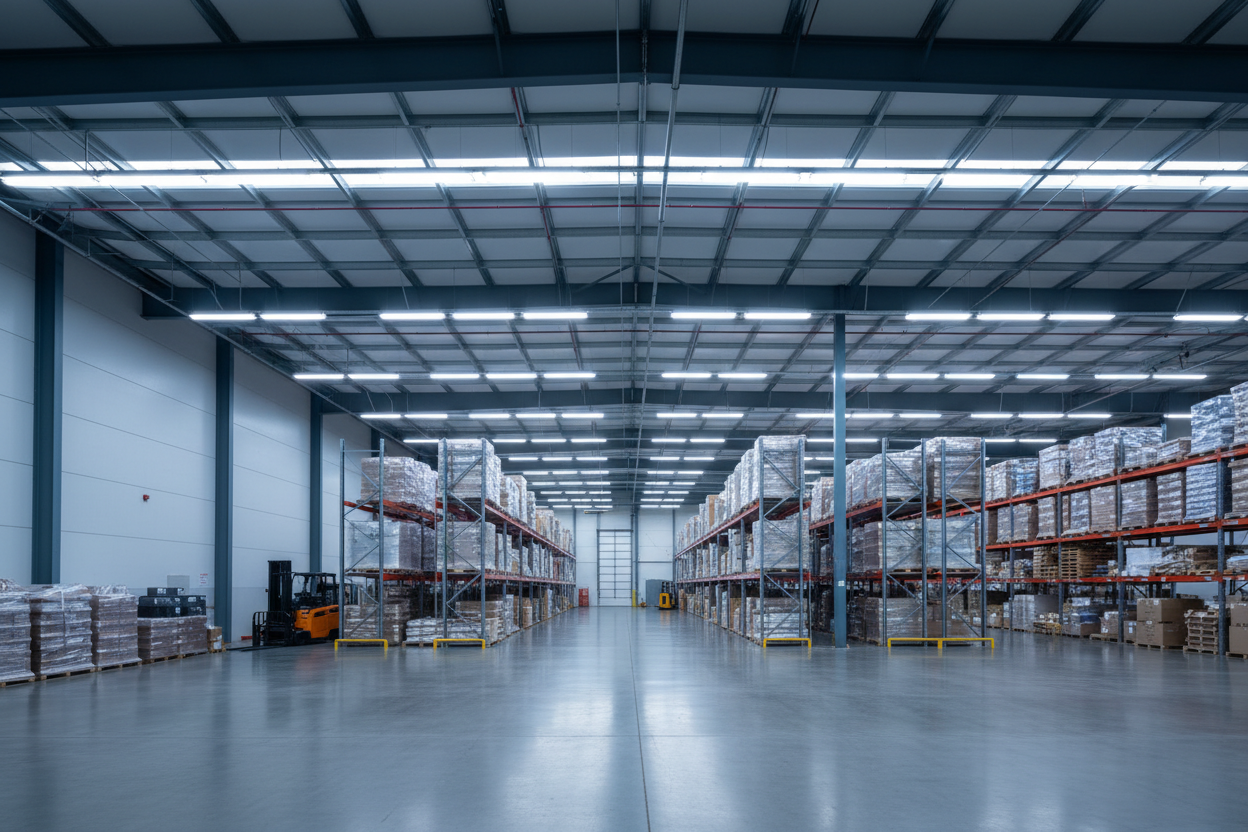

A major logistics operator required a complete lighting upgrade for a 60,000 sqm warehouse facility in Guangzhou. The existing metal halide system was consuming excessive energy, required frequent lamp replacements, and provided uneven illumination across racking aisles.
Customer Requirements
- Minimum 300 lux at floor level across all racking aisles
- IP65 rating for dusty warehouse environment
- Motion sensor dimming to reduce energy in unoccupied zones
- Operating temperature range: -10°C to +45°C
- Payback period target: under 3 years
Engineering Solution
DansLED engineered a custom 200W high-bay luminaire with IP65 housing, wide-angle optics for 8m mounting height, and integrated 0-10V dimming compatible with PIR motion sensors. A photometric simulation was conducted for each racking zone to optimize fixture spacing and achieve uniform illumination.
Products Used
- Custom 200W High-Bay — IP65, 130lm/W, 0-10V dimming
- Custom 100W High-Bay — IP65, perimeter and office areas
- PIR motion sensors with 10-minute hold time
Result
1,200 high-bay fixtures installed. Energy consumption reduced by 81% compared to the previous metal halide system. Projected payback period: 2.4 years. Zero lamp replacements required in the first 3 years of operation.
