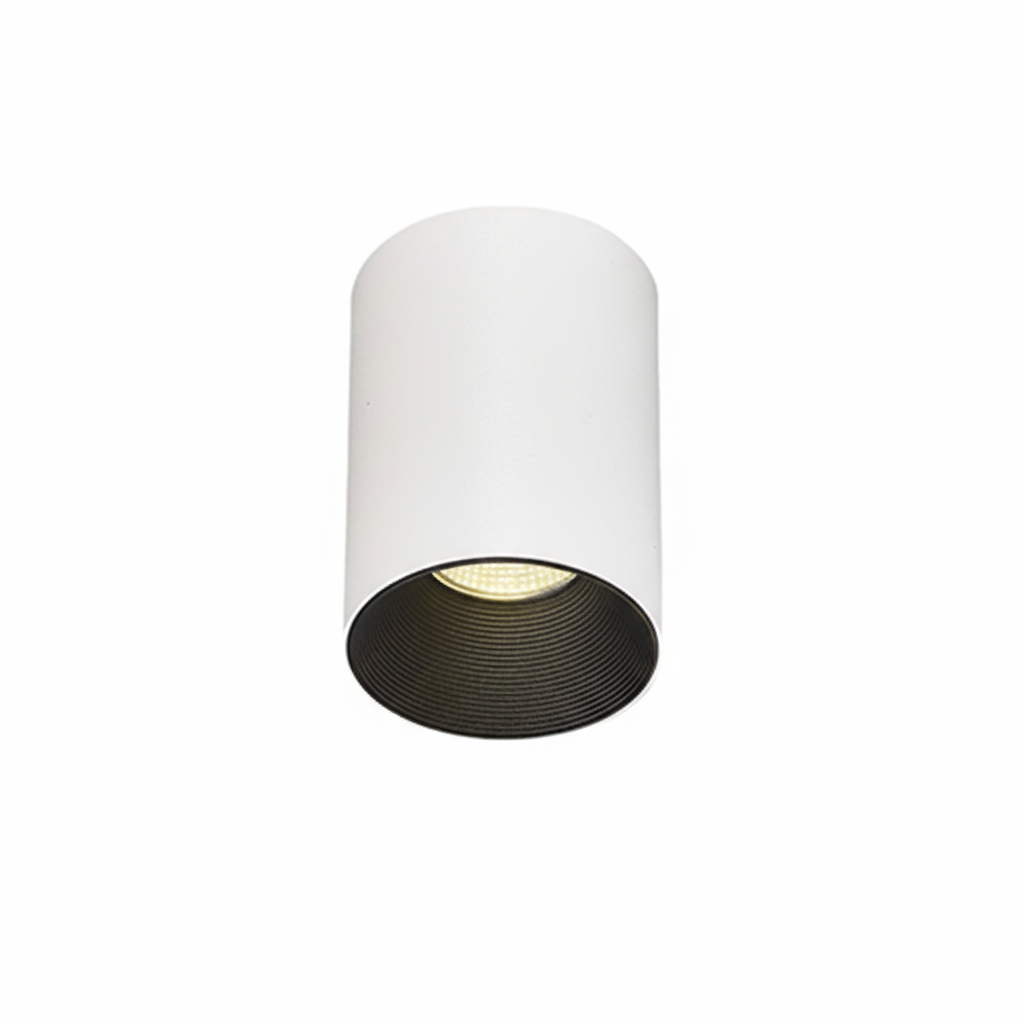

BDL Series | Surface Mounted Cylinder Downlight

BDL Series — Surface Mounted Cylinder Downlight

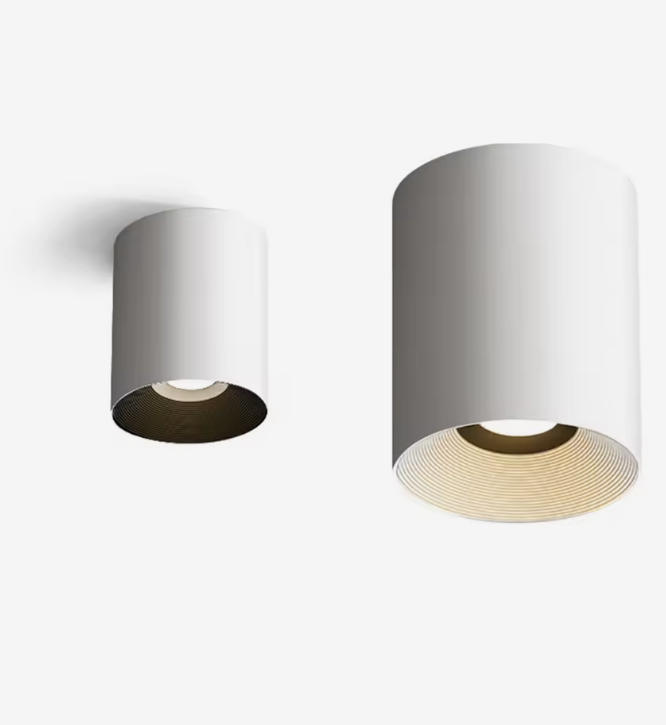

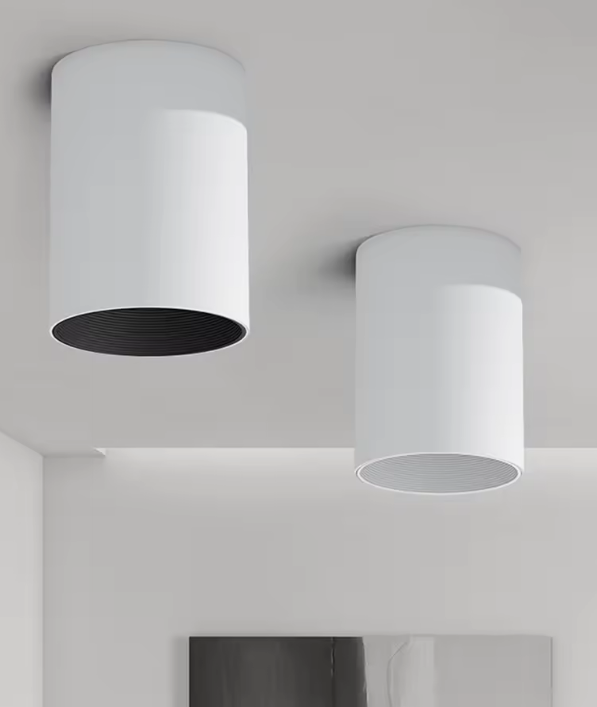

The BDL Series is engineered for architects and lighting designers who demand clean form, reliable performance, and scalable output. Its precision-machined cylindrical housing mounts directly to the ceiling surface, making it ideal for spaces where recessed installation is not possible — or where the fixture itself becomes a design statement.

Available in six power configurations from 12W to 70W, the BDL Series scales effortlessly from intimate accent lighting to large-area commercial illumination. With a deep-set COB light source, precision reflector cup, and Ra>90 color rendering, it delivers focused, glare-controlled light that makes spaces and products look their best.

Features & Benefits

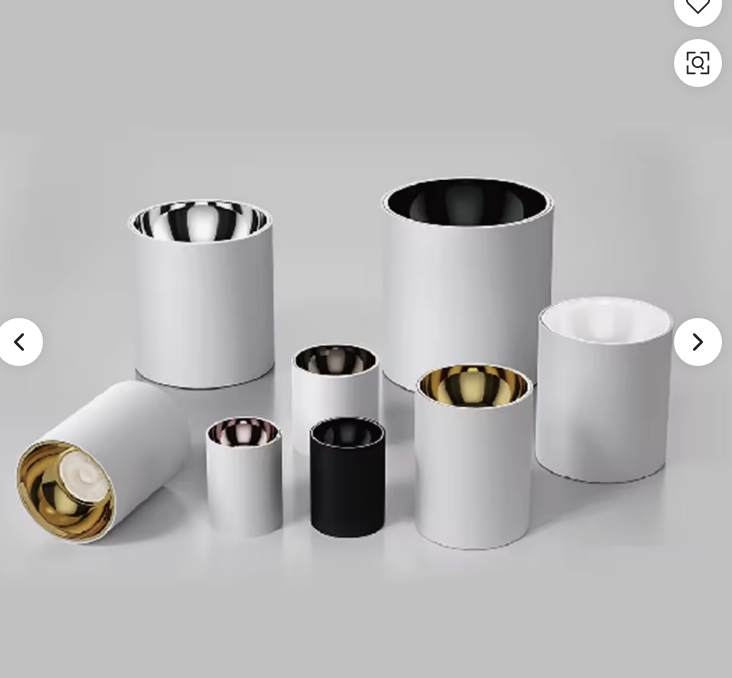

• Six Power Options: 12W to 70W — scalable for any project size or ceiling height
• High CRI: Ra>90 for accurate, vibrant color rendering

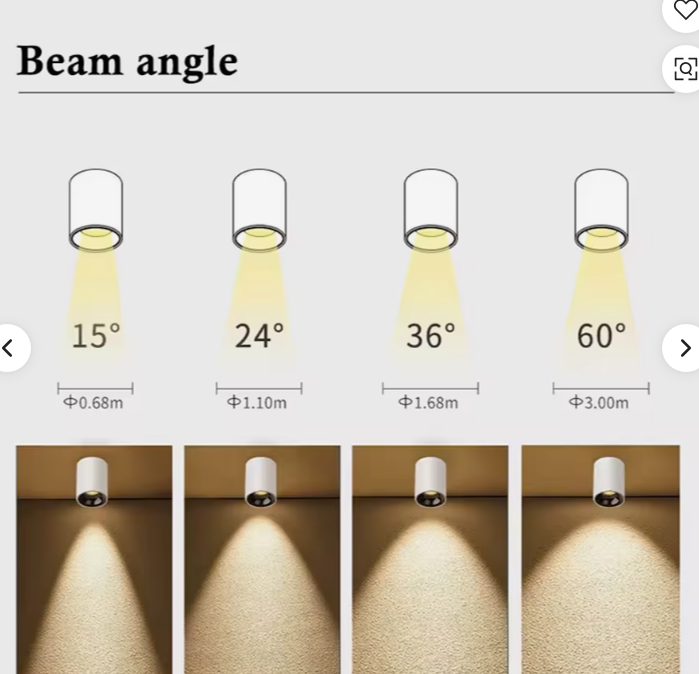

• Multiple Beam Angles: 15°, 24°, 36°, 60° — precise optical control for accent or ambient lighting
• Flicker-Free Technology: Flicker index 0.002 — protects occupant eye health and comfort
• Superior Color Consistency: SDCM<3 ensures uniform appearance across all fixtures
• High Power Factor: PF>0.9 for energy-efficient operation
• Two CCT Options: 4000K (neutral white) and 6000K (daylight)
• Two Finish Options: White and Black to complement any interior
• Universal Voltage: 110V/220V for global compatibility
• Long Service Life: 50,000 hours rated lifespan
• 5-Year Warranty: Backed by DansLED's comprehensive guarantee

Typical Applications

• Retail stores & boutiques — accent merchandise with precision beam control
• Hotels & restaurants — create layered, atmospheric lighting
• Art galleries & museums — faithful color rendering without glare
• Office lobbies & reception areas — professional, comfortable illumination
• High-end residential — living rooms, dining areas, corridors

Specifications

Power & Size Options
