DDL Series — Flat LED In-Ground Light
The DDL Series is a precision-engineered flat in-ground luminaire designed for architects and landscape designers who demand durability, discretion, and visual impact in equal measure. Flush-mounted into floors, plazas, pool surrounds, and pathways, the DDL Series disappears into the surface by day and transforms outdoor environments into immersive light experiences by night.
Built with a 6063 aluminum body and 304 stainless steel front cover, the DDL Series is rated IP67 for full dust and water ingress protection, making it equally at home in wet zones, high-traffic pedestrian areas, and decorative landscape installations. Powered by OSRAM LED chips and available in three glass face options, it delivers consistent, high-quality light with a service life of 35,000 hours.
Features & Benefits
- IP67 Waterproof Rating: Full protection against dust and water immersion — suitable for pools, fountains, and outdoor plazas
- OSRAM LED Chip: Premium light source for reliable output, consistent color, and long service life
- Three Glass Face Options: Frosted, Half-Moon, and Milky White for different diffusion and aesthetic effects (15° transparent glass also available)
- Multiple Beam Angles: 15°, 45°, and 120° — standard stock in 45° for versatile landscape applications
- Wide CCT Range: 2900–3100K, 4000–4500K, and 6000–6500K; RGB color options also available
- Low Voltage Operation: DC12–24V for safe installation in wet and public environments
- Premium Material Construction: 6063 aluminum heatsink body with 304 stainless steel front cover for corrosion resistance
- Compact Flat Profile: Minimal above-surface presence for seamless integration into any hardscape
- Wide Operating Temperature: -25°C to +45°C for year-round outdoor reliability
- OEM & ODM Available: Custom configurations, colors, and glass options supported
Typical Applications

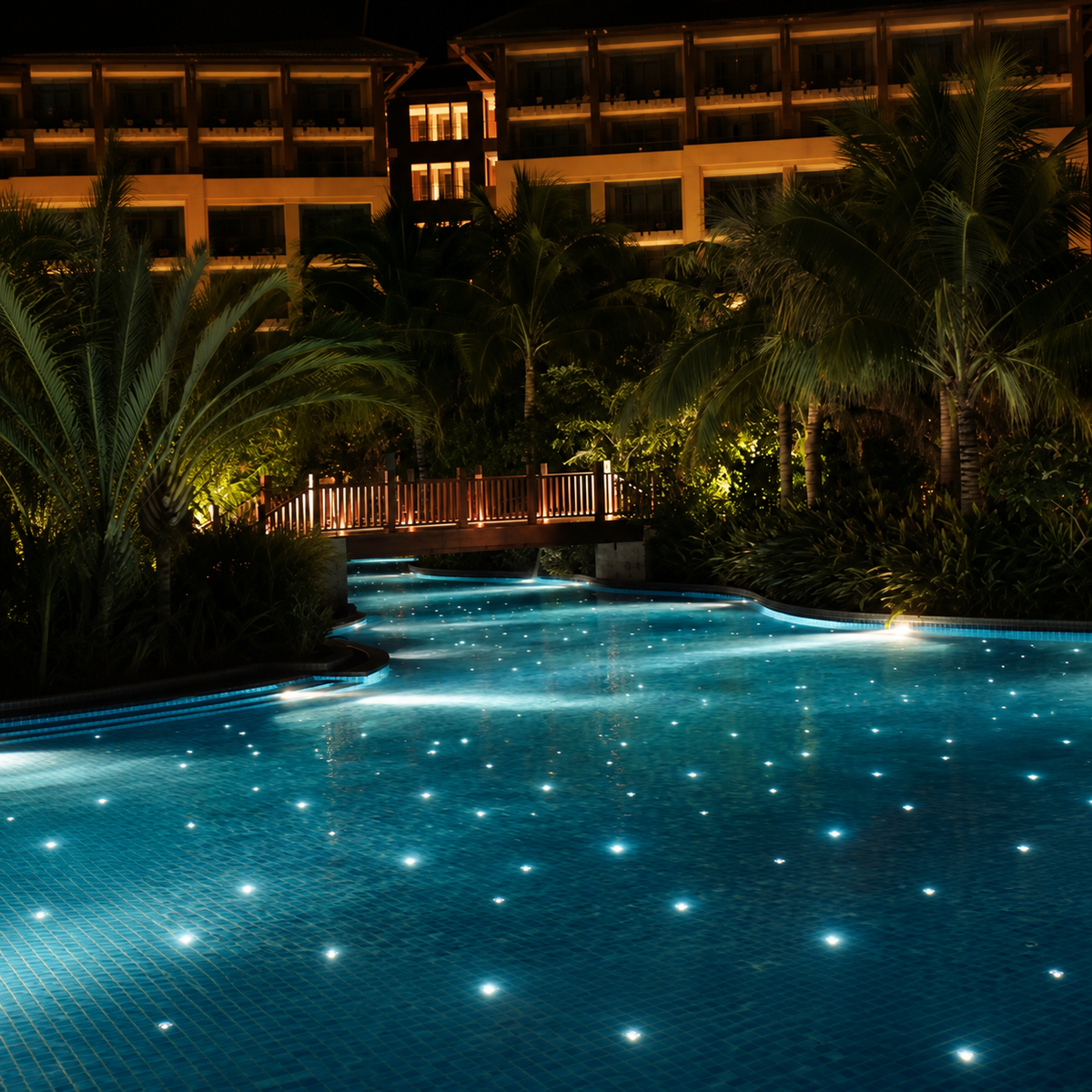

- Swimming pools & water features — underwater and pool-surround accent lighting
- Public plazas & pedestrian walkways — flush floor lighting with high traffic durability
- Hotel & resort landscapes — starry ground effect for premium outdoor ambiance
- Architectural facades & driveways — low-profile uplighting and path marking
- Garden & terrace lighting — decorative ground accents for residential outdoor spaces
Specifications
| Product No. | DDL-Y1W-A / DDL-Y3W-A |
|---|---|
| Input Voltage | DC 12–24V |
| LED Chip | OSRAM |
| CRI | > 80 Ra |
| Beam Angle | 15° / 45° / 120° (Standard: 45°) |
| CCT Options | 2900–3100K / 4000–4500K / 6000–6500K |
| Other Colors | Red / Green / Blue |
| Glass Face | Frosted / Half-Moon / Milky White (Default: Frosted) |
| Material | 6063 Aluminum + 304 Stainless Steel |
| Protection Grade | IP67 |
| Ambient Temperature | -25°C ~ +45°C |
| Service Life | 35,000 hrs |
Power & Size Options
| Power | Dimension | Cut-out | Lumen Output |
|---|---|---|---|
| 1W | φ35 × H50mm | φ28mm | 95 lm |
| 3W | φ35 × H60mm | φ28mm | 195 lm |
