EDL Series — Anti-Glare Recessed Downlight
The EDL Series is engineered for lighting designers and specifiers who demand visual comfort without compromise. With a deep-set anti-glare reflector achieving UGR<19, the EDL Series eliminates discomfort glare in occupied spaces while delivering precise, high-quality illumination that enhances any interior environment.
Available in three power configurations from 7W to 12W, the EDL Series supports TRIAC, 0-10V, and DALI dimming protocols — including a Dim to Warm mode that transitions from 1800K to 3000K for warm, hospitality-grade ambiance. With SDCM<3 color consistency, flicker-free design, and an optional emergency backup module, it is the ideal choice for offices, hotels, retail spaces, and any environment where safety compliance and premium lighting quality are equally critical.
Features & Benefits
- Anti-Glare Performance: UGR<19 rating minimizes visual discomfort in occupied spaces such as offices, retail, and hospitality
- Three Dimming Protocols: TRIAC, 0-10V, and DALI — compatible with all major building management and smart lighting systems
- Dim to Warm: 1800K–3000K tunable warm white for dynamic, hospitality-grade atmosphere control

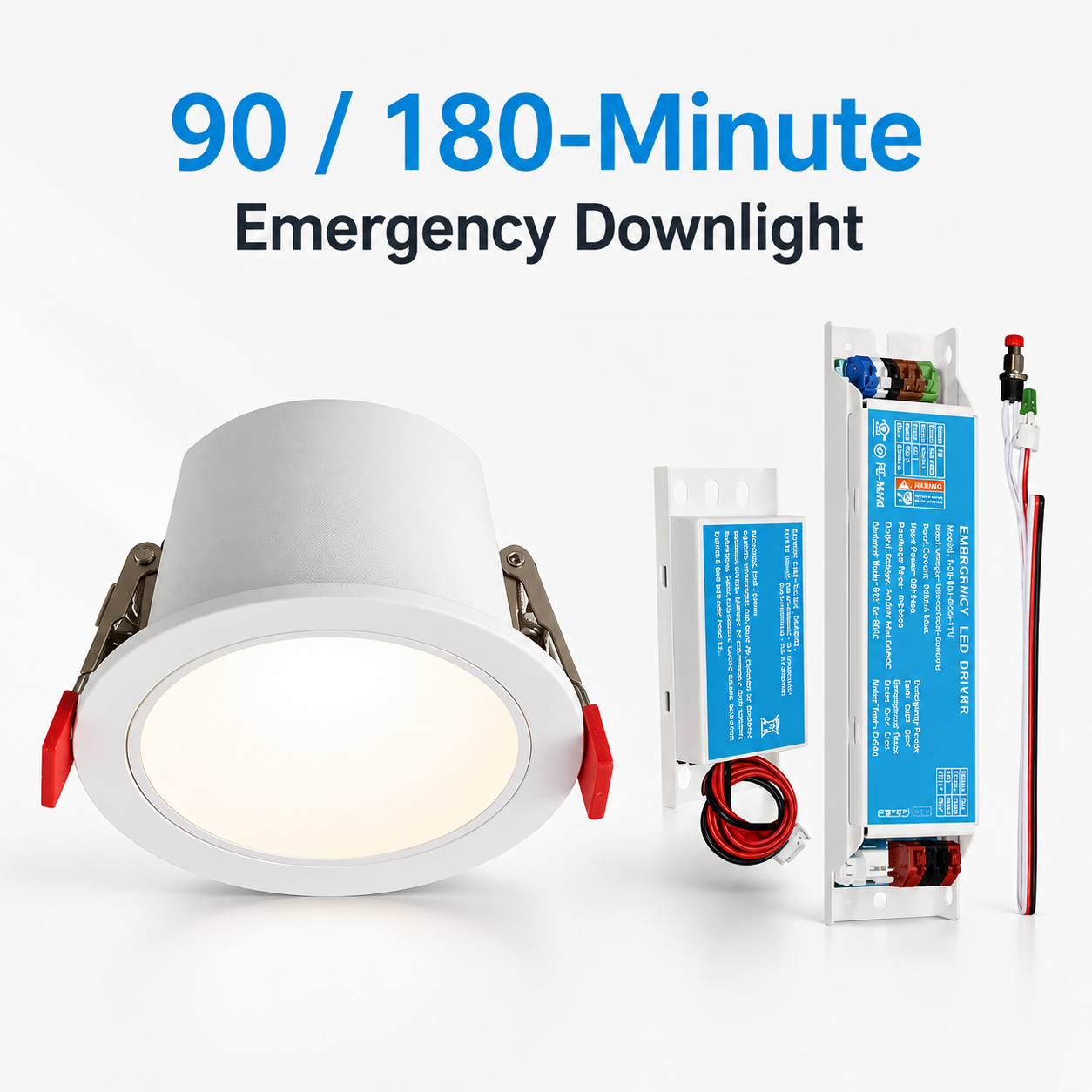

- Optional Emergency Backup: 90 or 180-minute emergency module available — maintains illumination during power failure for safety compliance
- Superior Color Consistency: SDCM<3 ensures uniform color appearance across all fixtures in an installation
- Flicker-Free Technology: Flicker index 0.002 — protects occupant eye health and comfort
- Multi-CCT Options: 3000K, 4000K, and 6000K to suit any design intent
- High Power Factor: PF>0.9 for energy-efficient, grid-friendly operation
- Two Frame Colors: White and Black to complement any interior aesthetic
- Universal Voltage: 110V/220V for global compatibility
- Long Service Life: 50,000 hours rated lifespan
- 5-Year Warranty: Backed by DansLED’s comprehensive guarantee
Typical Applications
- Corporate offices & meeting rooms — glare-free task lighting for sustained visual comfort
- Hotels & restaurants — dimmable, warm-white ambiance for premium guest experience
- Retail stores & boutiques — accent and general lighting with precise beam control
- Public buildings & corridors — emergency-compliant lighting with seamless aesthetic integration
- High-end residential — living rooms, dining areas, and corridors
Specifications
| Anti-Glare | UGR < 19 |
|---|---|
| Input Voltage | 110V / 220V |
| Power Factor | PF > 0.9 |
| SDCM | < 3 |
| CCT | 3000K / 4000K / 6000K |
| Dimming | TRIAC / 0-10V / DALI |
| Dim to Warm | 1800K – 3000K |
| Emergency Option | 90 min / 180 min (customizable) |
| Color of Frame | White / Black |
| Flicker Free | 0.002 (Flicker Index) |
| Life Span | 50,000 hrs |
| Warranty | 5 Years |

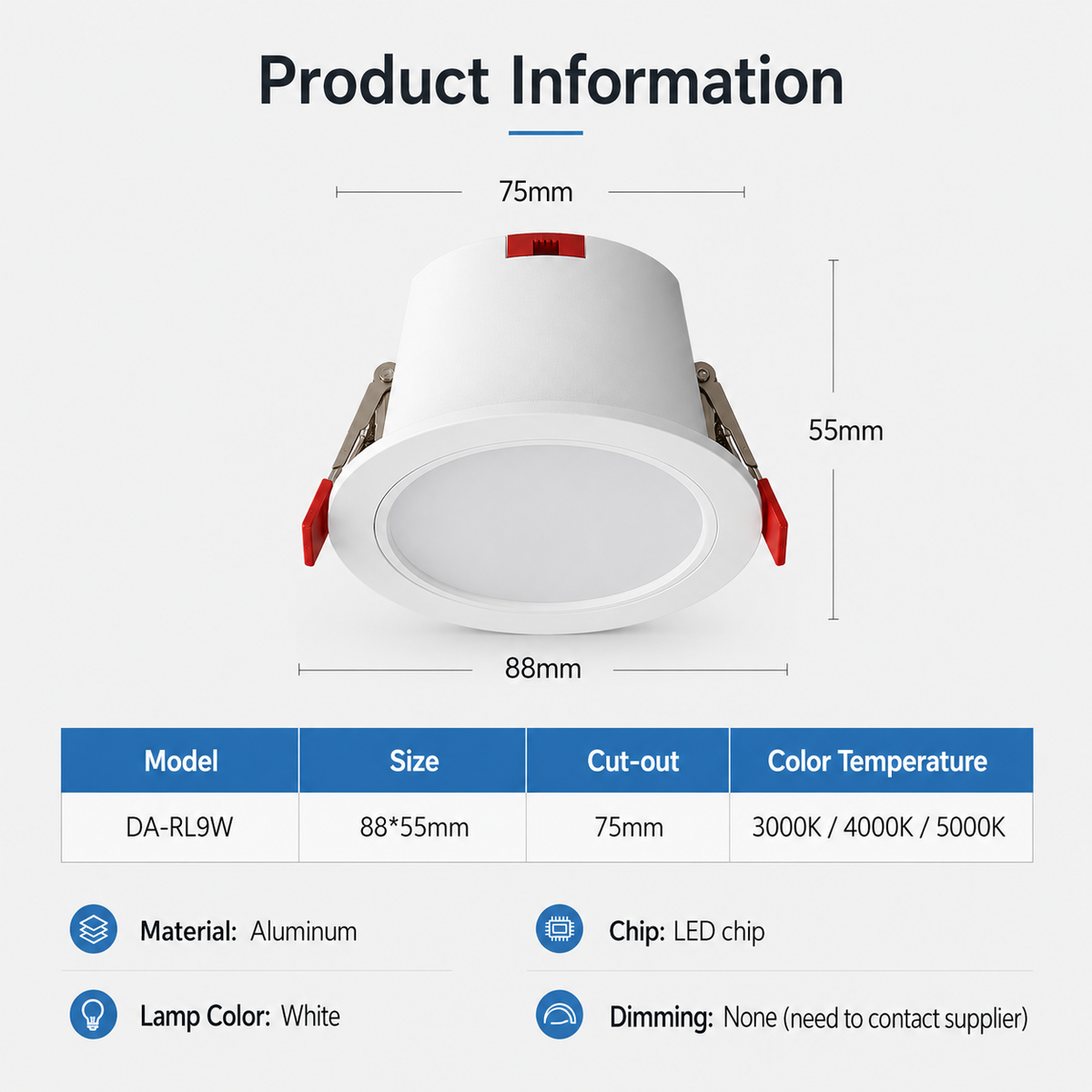

Power & Size Options
| Power | Dimension | Cut-out | Lumen Output |
|---|---|---|---|
| 7W | φ90 × H70mm | φ75mm | 840 lm |
| 9W | φ105 × H70mm | φ95mm | 1,080 lm |
| 12W | φ105 × H70mm | φ95mm | 1,440 lm |
