FDL Series — COB Anti-Glare Recessed Downlight
The FDL Series is a high-performance COB recessed downlight engineered for commercial and architectural environments where anti-glare performance and precise beam control are non-negotiable. Featuring a deep-set COB light source with a precision-machined reflector, the FDL Series achieves UGR<19 while delivering a focused, high-intensity beam that renders colors with exceptional accuracy.
Available in four power configurations from 7W to 20W, the FDL Series supports TRIAC, 0-10V, and DALI dimming protocols — including a Dim to Warm mode from 1800K to 3000K for warm, hospitality-grade ambiance. With SDCM<3 color consistency and a flicker-free design, it is the preferred choice for retail, hospitality, gallery, and premium office environments.
Features & Benefits
- COB Light Source: High-intensity, single-point COB LED for superior beam quality and optical punch
- Anti-Glare Performance: UGR<19 rating minimizes visual discomfort in occupied spaces
- Three Dimming Protocols: TRIAC, 0-10V, and DALI — compatible with all major building management and smart lighting systems
- Dim to Warm: 1800K–3000K tunable warm white for dynamic, hospitality-grade atmosphere control
- Wide CCT Range: 2700K, 3000K, 3500K, 4000K, and 5000K to suit any design intent
- Superior Color Consistency: SDCM<3 ensures uniform color appearance across all fixtures
- Flicker-Free Technology: Flicker index 0.002 — protects occupant eye health and comfort
- High Power Factor: PF>0.9 for energy-efficient operation

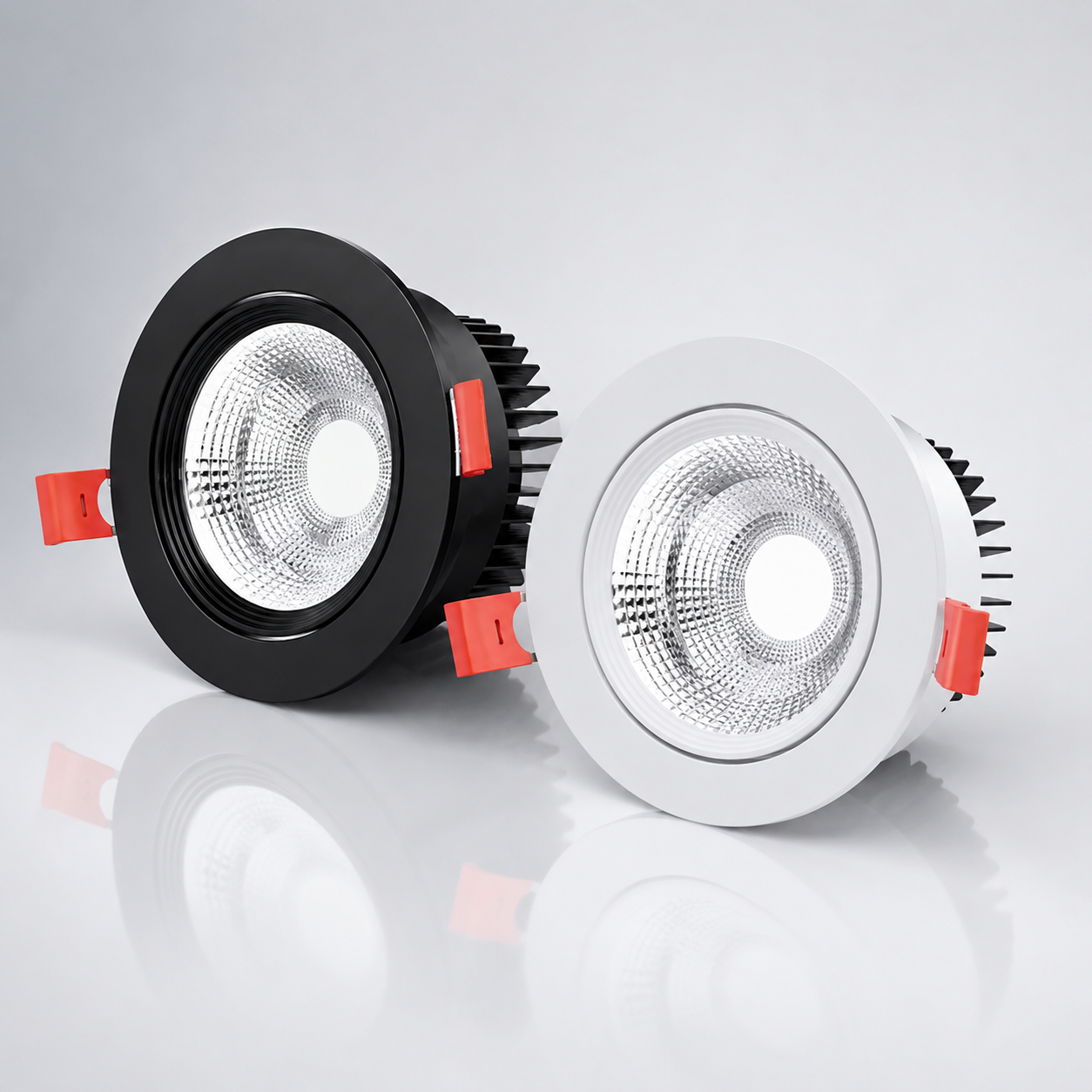

- Two Frame Colors: White and Black to complement any interior aesthetic
- Universal Voltage: 110V/220V for global compatibility
- Long Service Life: 50,000 hours rated lifespan
- 5-Year Warranty: Backed by DansLED’s comprehensive guarantee
Typical Applications
- Retail stores & boutiques — high-intensity COB accent lighting for merchandise display
- Hotels & restaurants — dimmable, warm-white ambiance for premium guest experience
- Art galleries & museums — precise beam control with faithful color rendering
- Corporate offices & lobbies — glare-free, professional illumination
- High-end residential — living rooms, dining areas, and feature lighting
Specifications
| Anti-Glare | UGR < 19 |
|---|---|
| Input Voltage | 110V / 220V |
| Power Factor | PF > 0.9 |
| SDCM | < 3 |
| CCT | 2700K / 3000K / 3500K / 4000K / 5000K |
| Dimming | TRIAC / 0-10V / DALI |
| Dim to Warm | 1800K – 3000K |
| Color of Frame | White / Black |
| Flicker Free | 0.002 (Flicker Index) |
| Life Span | 50,000 hrs |
| Warranty | 5 Years |
Power & Size Options
| Power | Dimension | Cut-out | Lumen Output |
|---|---|---|---|
| 7W | φ85 × H60mm | φ75mm | 840 lm |
| 9W | φ108 × H70mm | φ95mm | 1,080 lm |
| 12W | φ108 × H70mm | φ95mm | 1,440 lm |
| 20W | φ138 × H90mm | φ110mm | 1,800 lm |
