LDL Series | Linear Anti-Glare Recessed Grille Light

LDL Series — Linear Anti-Glare Recessed Grille Light

The LDL Series is a precision-engineered linear recessed grille light designed for architects and interior designers who demand seamless ceiling integration with maximum glare control. Featuring a deep-set multi-spot COB array within a slim rectangular housing, the LDL Series achieves UGR<19 while creating a clean, continuous line of light that defines modern commercial and hospitality interiors.

Available in six power configurations from 2W to 30W, the LDL Series scales from compact single-module accents to full-length linear installations. With TRIAC, 0-10V, and DALI dimming support — including Dim to Warm from 1800K to 3000K — and SDCM<3 color consistency, it delivers the optical precision and design flexibility demanded by the most exacting architectural specifications.

Features & Benefits

• Linear Anti-Glare Design: UGR<19 with a deep-set multi-spot array for seamless, glare-free linear illumination
• Multiple Beam Angles: 30°, 36°, and 45° options for precise light distribution control
• Three Dimming Protocols: TRIAC, 0-10V, and DALI — compatible with all major building management and smart lighting systems
• Dim to Warm: 1800K–3000K tunable warm white for dynamic, hospitality-grade atmosphere control
• Wide CCT Range: 2700K, 3000K, 3500K, 4000K, and 5000K to suit any design intent
• Superior Color Consistency: SDCM<3 ensures uniform color appearance across all fixtures in an installation
• Flicker-Free Technology: Flicker index 0.002 — protects occupant eye health and comfort
• High Power Factor: PF>0.9 for energy-efficient operation

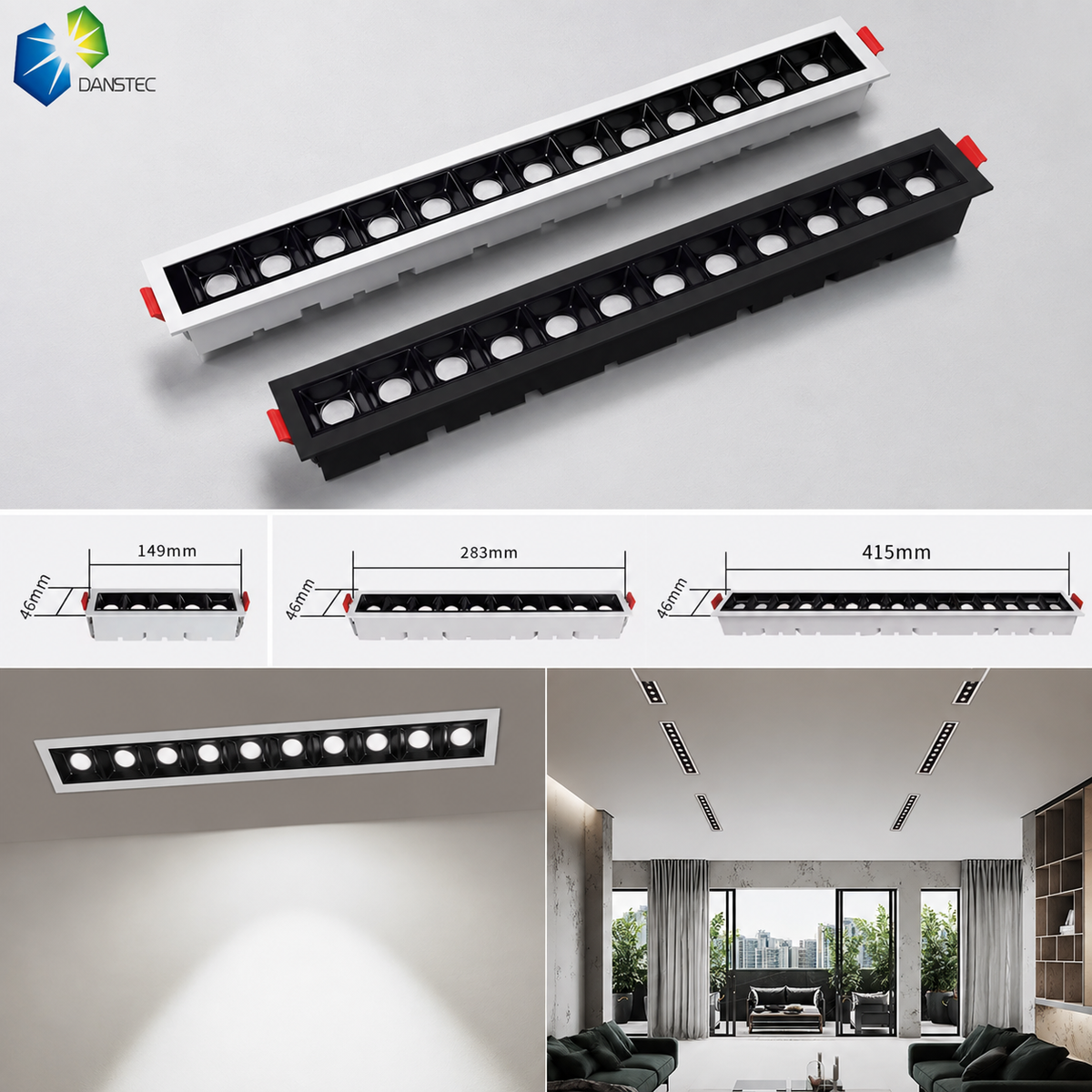

• Two Frame Colors: White and Black to complement any interior aesthetic
• Universal Voltage: 110V/220V for global compatibility
• Long Service Life: 50,000 hours rated lifespan
• 5-Year Warranty: Backed by DansLED’s comprehensive guarantee

Typical Applications

• Corporate offices & meeting rooms — clean linear illumination with glare-free visual comfort
• Luxury retail & boutiques — continuous light lines for merchandise display and perimeter lighting
• Hotels & restaurants — dimmable, warm-white linear ambiance for premium guest experience
• Art galleries & museums — precise beam control for wall-wash and artwork illumination

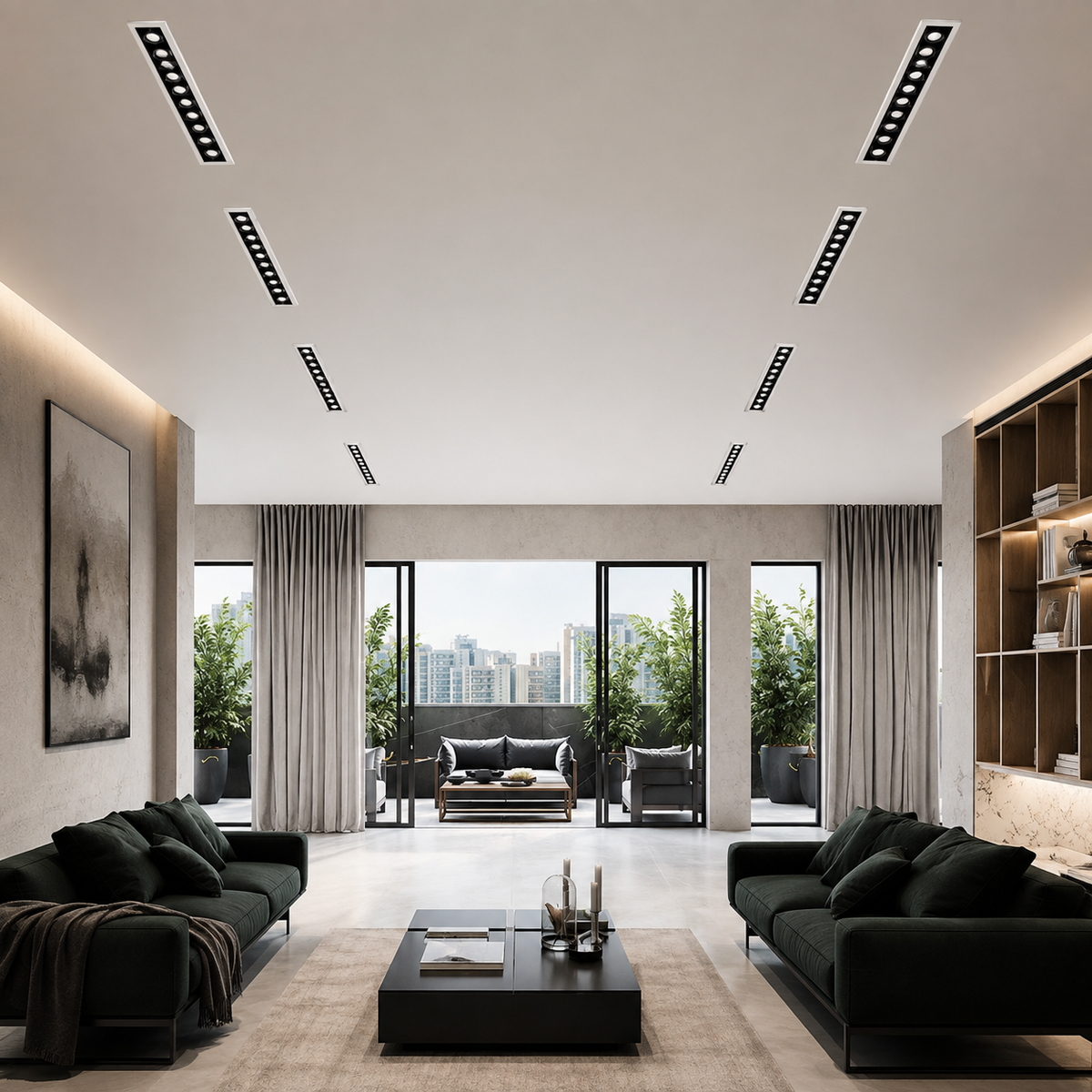

• High-end residential — kitchen islands, corridors, and architectural feature lighting

Specifications

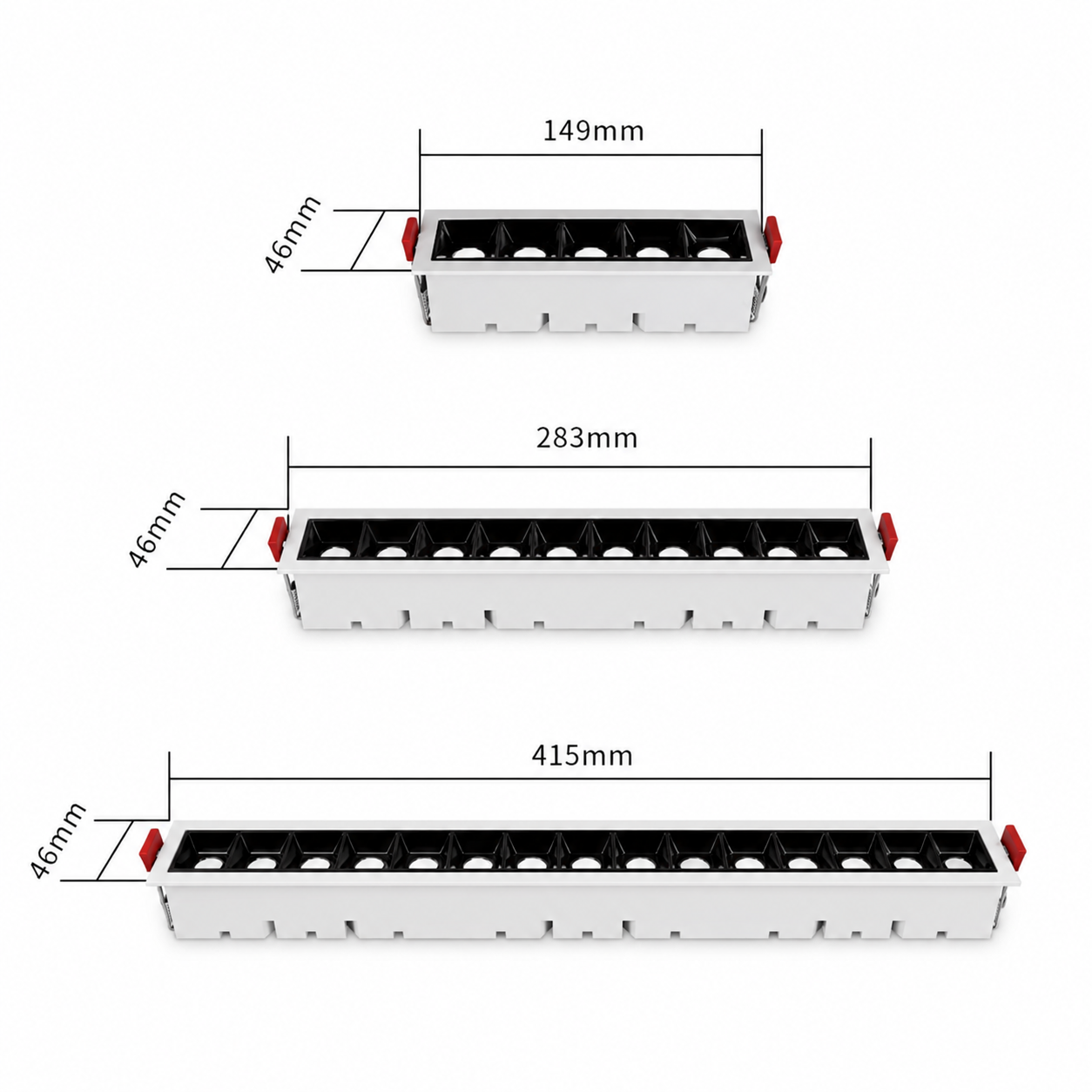

Power & Size Options
