MFM Series | 48V Magnetic Linear Panel Light

MFM Series | 48V Magnetic Linear Panel Light

$0.00

MFM Series — 48V Magnetic Linear Panel Light

The MFM Series is a premium 48V DC magnetic linear panel light engineered for architects and interior designers who require soft, uniform, glare-free illumination from a magnetic track system. Featuring a high-transmission diffuser panel that delivers smooth, shadow-free light output, the MFM Series is the definitive solution for office, healthcare, and hospitality environments where visual comfort and ceiling aesthetics are equally critical.

Available in five lengths from 112mm to 543mm, with power outputs from 6W to 28W and CRI80 or CRI90 options, the MFM Series provides a scalable linear lighting solution for any project scale. With TRIAC, 0-10V, and DALI dimming compatibility, SDCM<3 color consistency, and a full CCT range from 1800K to 6000K (including 1800K/4000K/5700K DIP selectable), it delivers the optical quality and installation flexibility demanded by the most exacting architectural specifications.

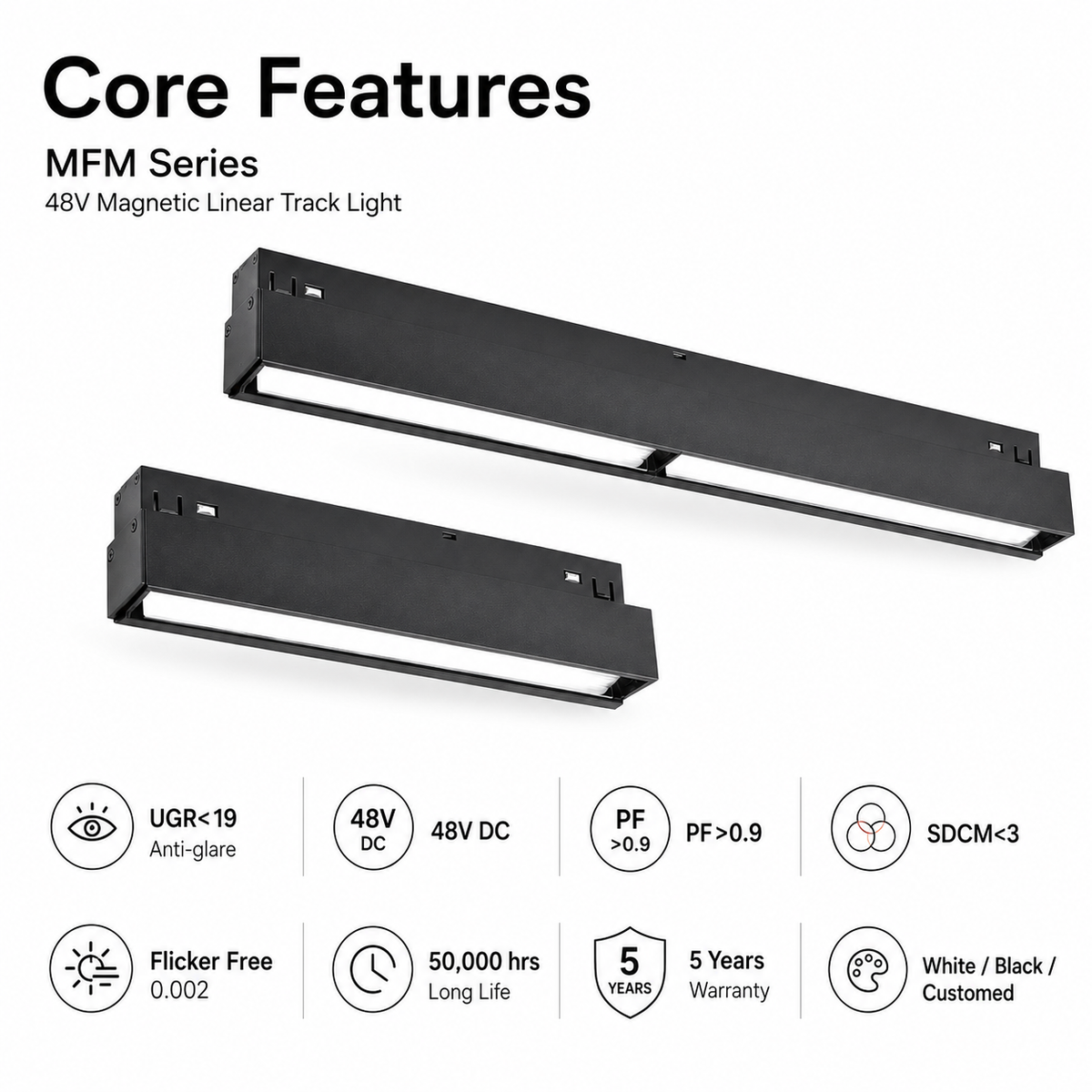

Features & Benefits

  • Diffused Linear Panel: High-transmission diffuser for soft, uniform, shadow-free illumination — ideal for environments requiring visual comfort over accent lighting
  • 48V DC Magnetic Mounting: Tool-free snap-on installation onto any compatible 48V magnetic track — reposition fixtures in seconds without ceiling modification
  • UGR<19 Anti-Glare: Superior visual comfort for office, healthcare, and hospitality environments
  • CRI80 & CRI90 Options: Choose the right color rendering index for your application — CRI90 for retail and hospitality, CRI80 for office and general commercial

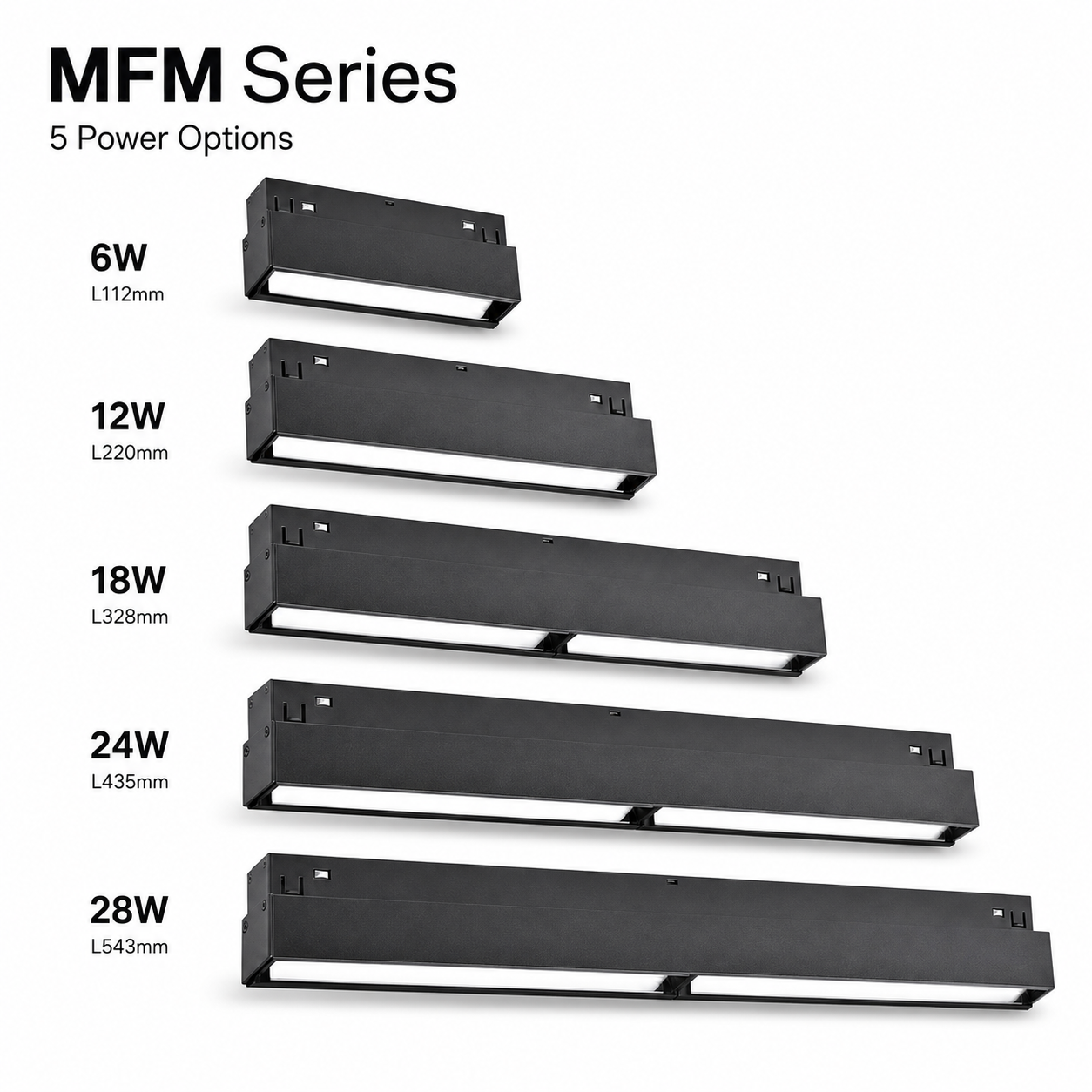

  • Five Length Options: 112mm to 543mm — scalable from compact task lighting to full-length linear illumination

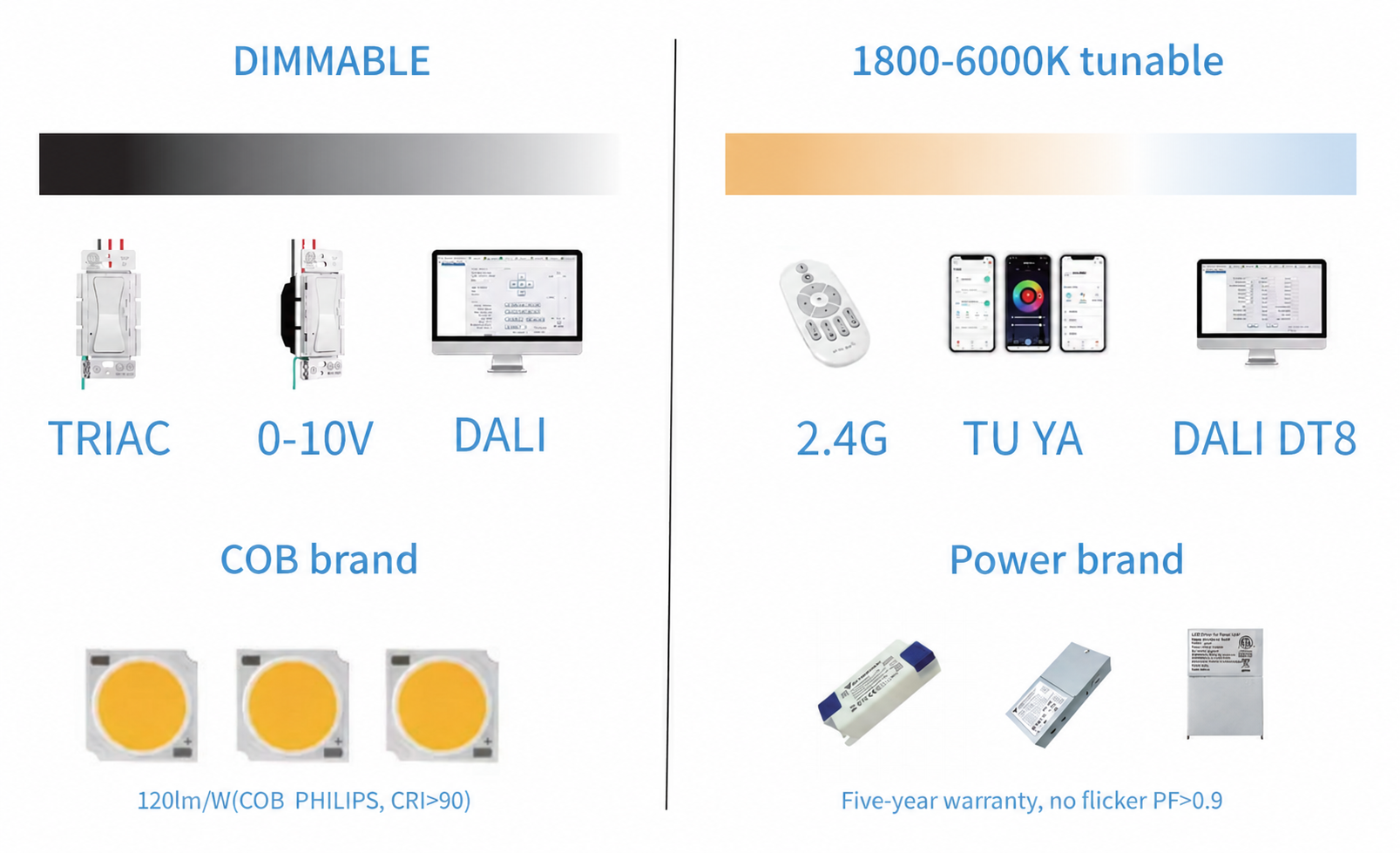

  • Three Dimming Protocols: TRIAC, 0-10V, and DALI — compatible with all major building management and smart lighting systems
  • Wide CCT Range: 1800K, 3000K, 3500K, 4000K, 5000K, 6000K — plus 1800K/4000K/5700K DIP selectable option
  • Superior Color Consistency: SDCM<3 ensures uniform color appearance across all fixtures in an installation
  • Flicker-Free Technology: Flicker index 0.002 — protects occupant eye health and comfort
  • Frame Options: White, Black, and Custom colors
  • Long Service Life: 50,000 hours rated lifespan
  • 5-Year Warranty: Backed by DansLED’s comprehensive guarantee

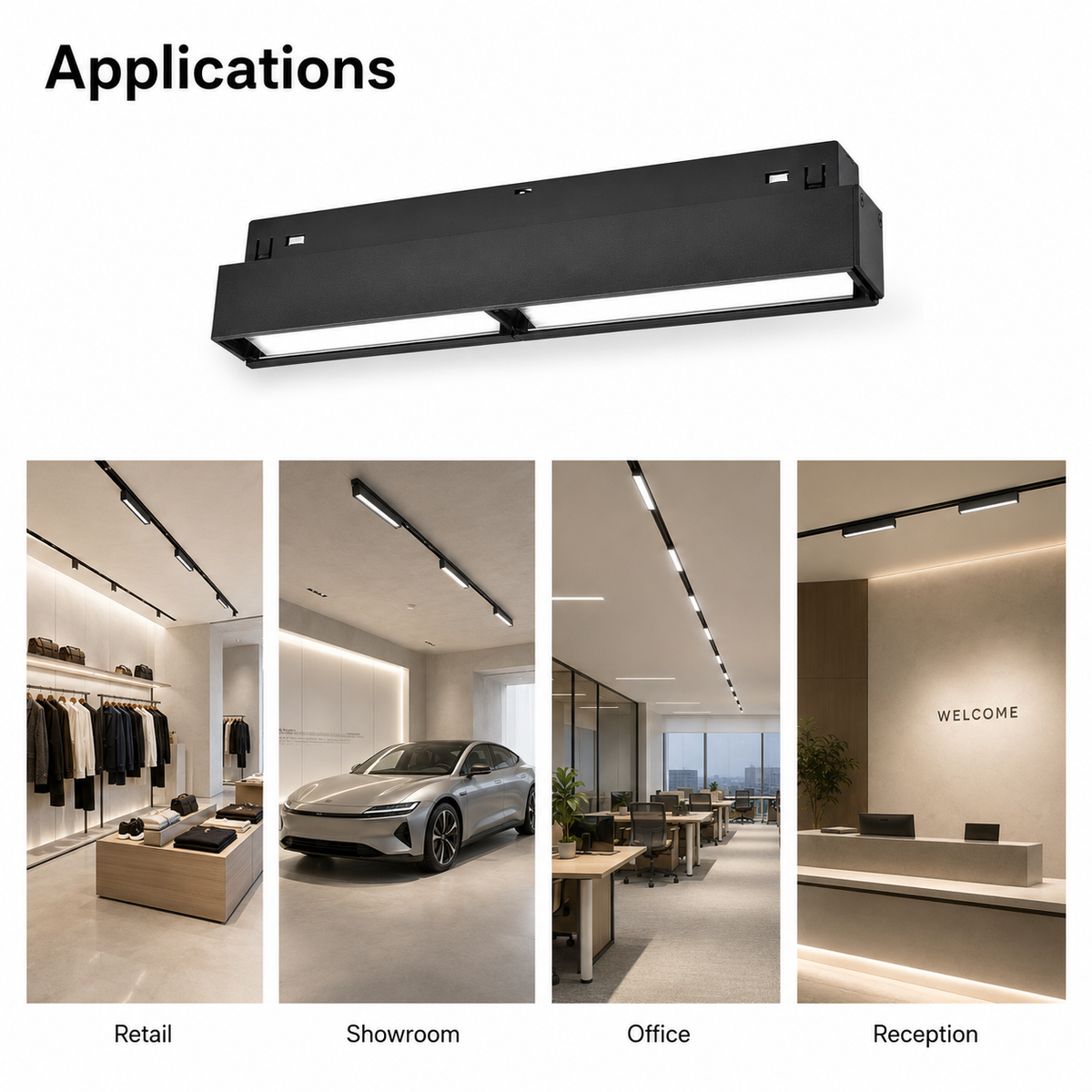

Typical Applications

  • Corporate offices — UGR<19 glare-free panel lighting for workstations and meeting rooms
  • Healthcare facilities — flicker-free, soft illumination for patient comfort
  • Hotels & hospitality — warm, diffused linear lighting for corridors and reception areas
  • Retail — CRI90 panel lighting for accurate color rendering of merchandise
  • High-end residential — kitchen, living room, and dining area linear lighting

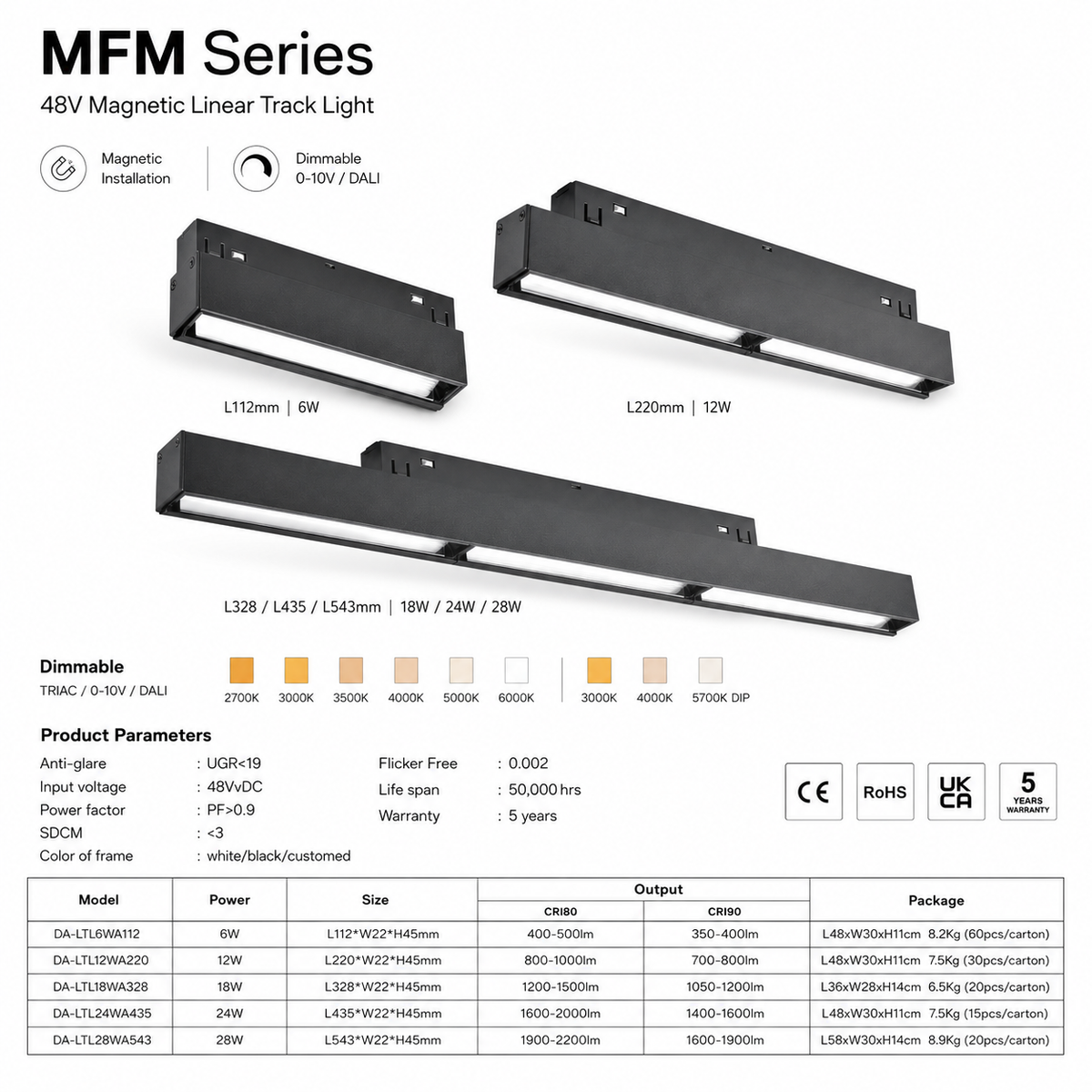

Specifications

Anti-Glare UGR < 19
Input Voltage 48V DC
Power Factor PF > 0.9
SDCM < 3
CCT 1800K / 3000K / 3500K / 4000K / 5000K / 6000K
3000K / 4000K / 5700K (DIP selectable)
Dimming TRIAC / 0-10V / DALI
Color of Frame White / Black / Customized
Flicker Free 0.002 (Flicker Index)
Life Span 50,000 hrs
Warranty 5 Years

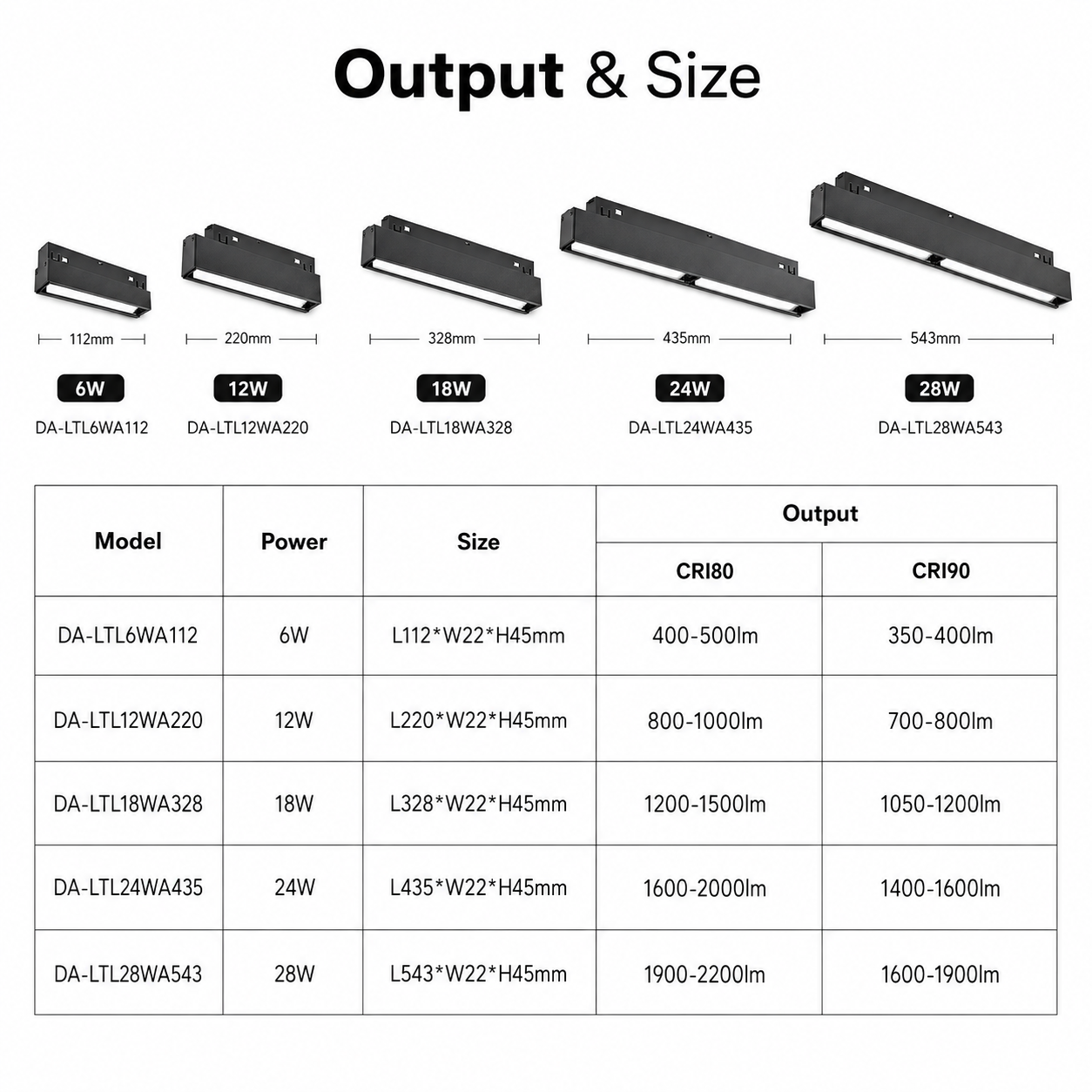

Model Options

Model Power Size CRI80 Output CRI90 Output
DA-LTL6WA112 6W L112 × W22 × H45mm 400–500 lm 350–400 lm
DA-LTL12WA220 12W L220 × W22 × H45mm 800–1,000 lm 700–800 lm
DA-LTL18WA328 18W L328 × W22 × H45mm 1,200–1,500 lm 1,050–1,200 lm
DA-LTL24WA435 24W L435 × W22 × H45mm 1,600–2,000 lm 1,400–1,600 lm
DA-LTL28WA543 28W L543 × W22 × H45mm 1,900–2,200 lm 1,600–1,900 lm
