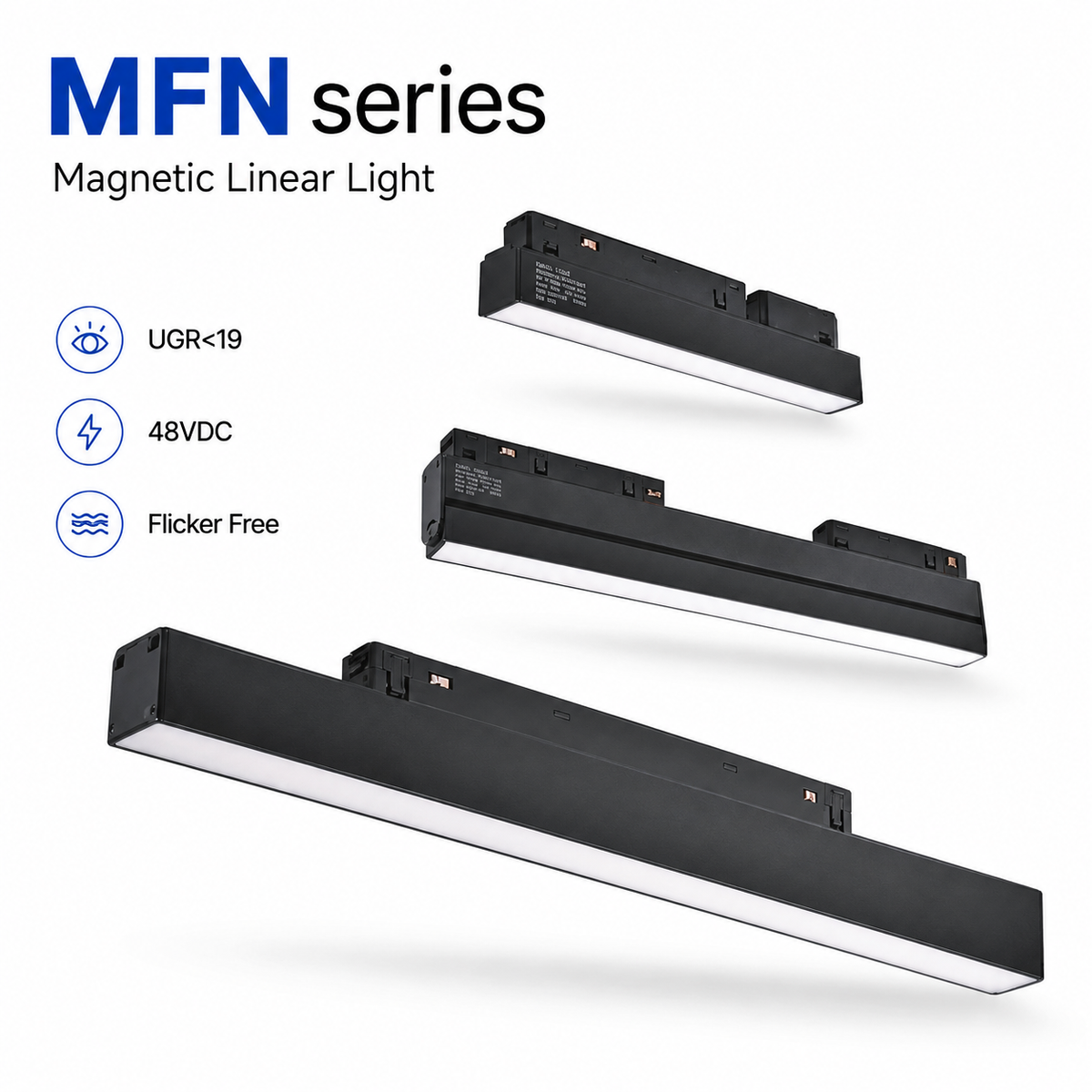

MFN Series Magnetic Linear Light - three sizes L300 L600 L900mm black body UGR<19 48VDC Flicker Free hero product shot on white background
  • MFN Series Magnetic Linear Light - three sizes L300 L600 L900mm black body UGR<19 48VDC Flicker Free hero product shot on white background

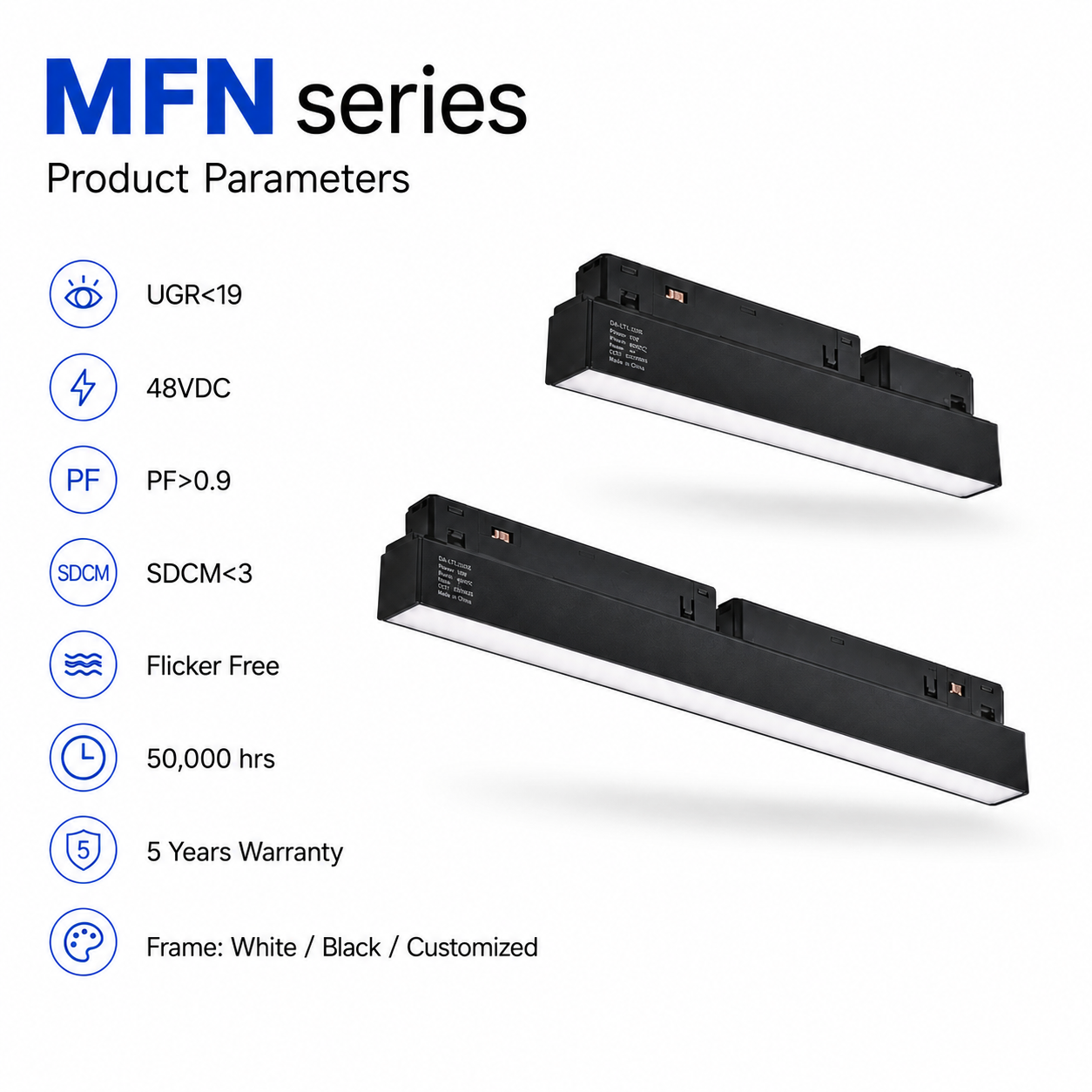

  • MFN Series Product Parameters - UGR<19 48VDC PF>0.9 SDCM<3 Flicker Free 50000hrs 5 Years Warranty Frame White Black Customized two sizes black body

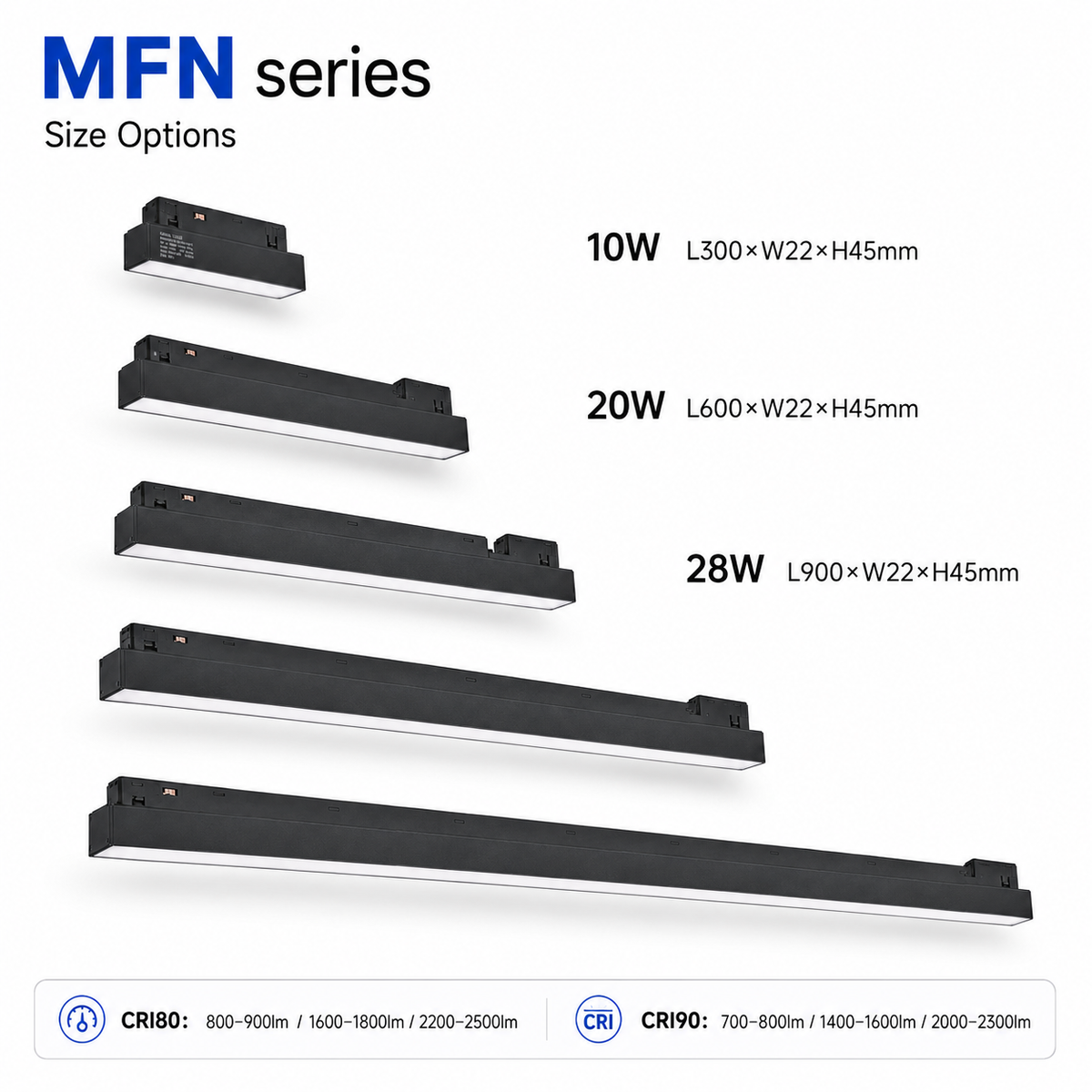

  • MFN Series Size Options - 10W L300xW22xH45mm 20W L600xW22xH45mm 28W L900xW22xH45mm CRI80 800-900 1600-1800 2200-2500lm CRI90 700-800 1400-1600 2000-2300lm five sizes comparison

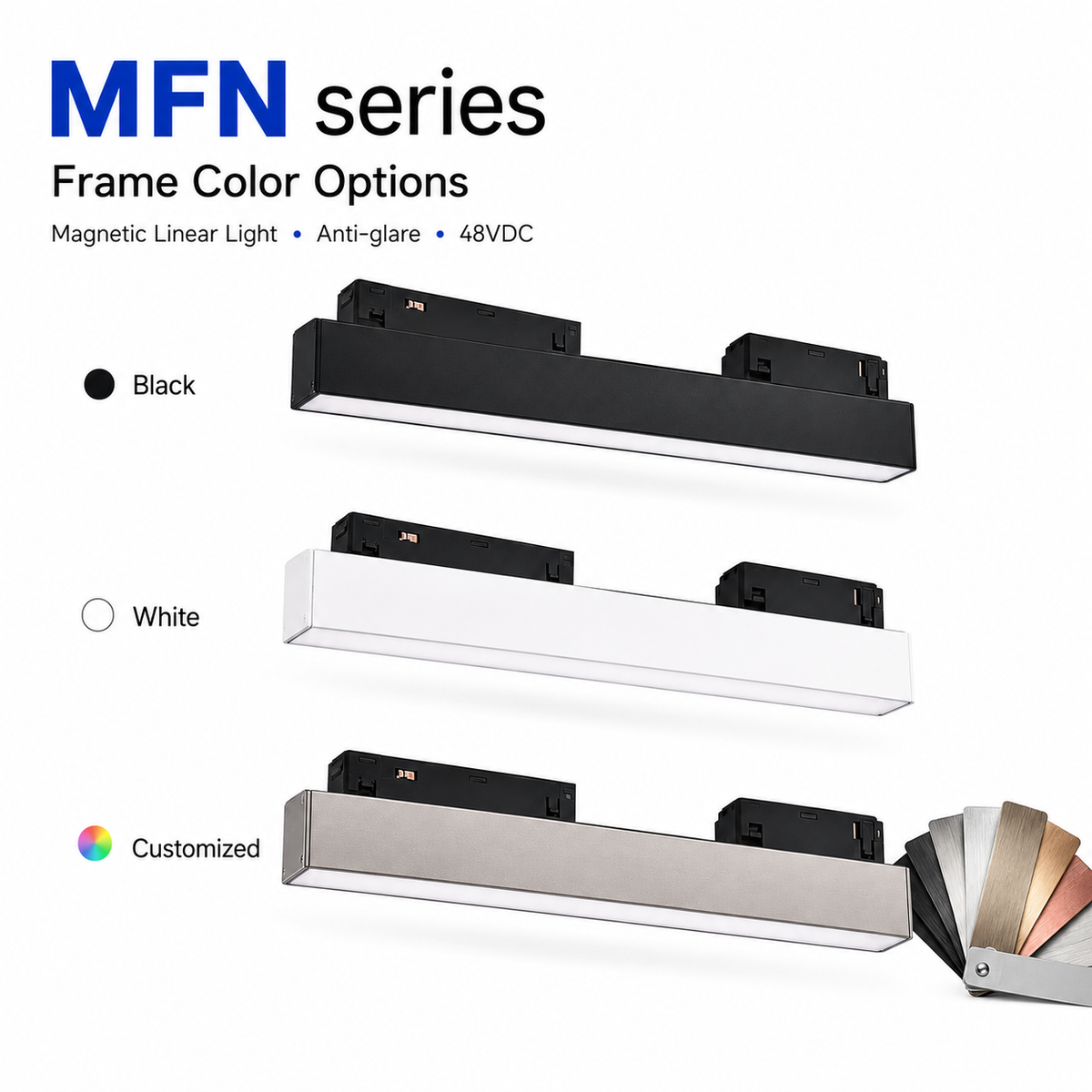

  • MFN Series Frame Color Options - Magnetic Linear Light Anti-glare 48VDC Black White Customized frame with color fan swatch

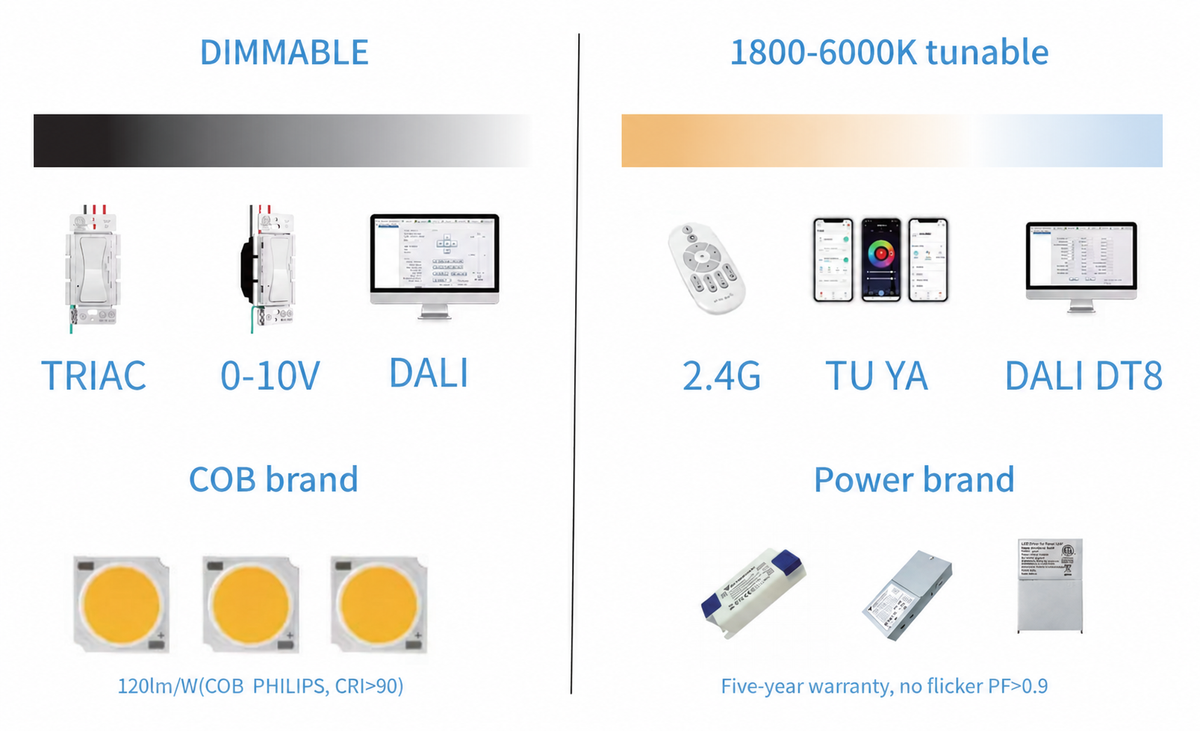

  • MFN Series Dimmable TRIAC 0-10V DALI and 1800-6000K tunable with 2.4G TU YA DALI DT8 smart control COB Philips 120lm/W CRI>90 and power brand

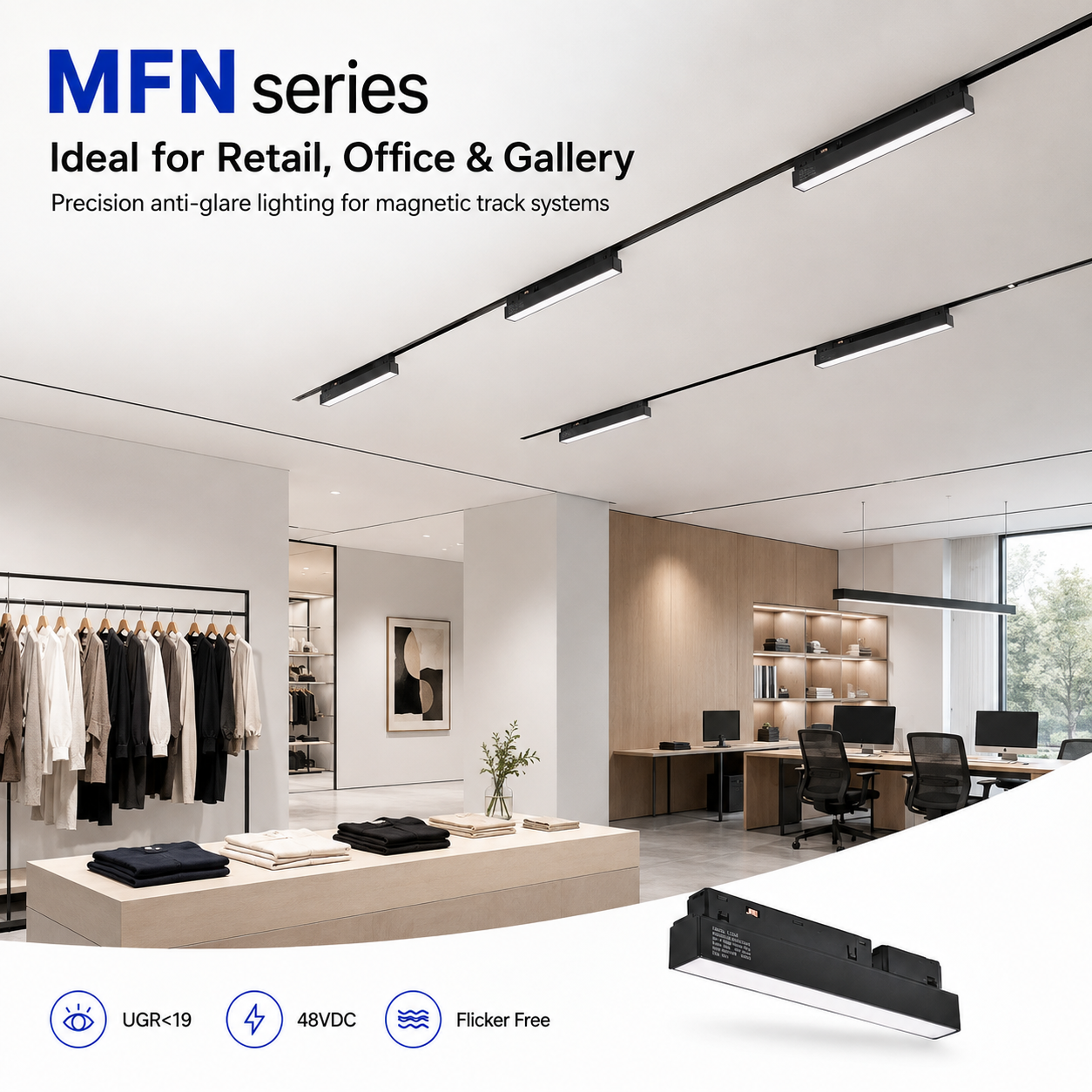

  • MFN Series Ideal for Retail Office Gallery - precision anti-glare lighting for magnetic track systems black linear modules on white ceiling in fashion retail and office space
  • MFN Series Magnetic Linear Light - three sizes L300 L600 L900mm black body UGR<19 48VDC Flicker Free hero product shot on white background
  • MFN Series Product Parameters - UGR<19 48VDC PF>0.9 SDCM<3 Flicker Free 50000hrs 5 Years Warranty Frame White Black Customized two sizes black body
  • MFN Series Size Options - 10W L300xW22xH45mm 20W L600xW22xH45mm 28W L900xW22xH45mm CRI80 800-900 1600-1800 2200-2500lm CRI90 700-800 1400-1600 2000-2300lm five sizes comparison
  • MFN Series Frame Color Options - Magnetic Linear Light Anti-glare 48VDC Black White Customized frame with color fan swatch
  • MFN Series Dimmable TRIAC 0-10V DALI and 1800-6000K tunable with 2.4G TU YA DALI DT8 smart control COB Philips 120lm/W CRI>90 and power brand
  • MFN Series Ideal for Retail Office Gallery - precision anti-glare lighting for magnetic track systems black linear modules on white ceiling in fashion retail and office space
MFN Series | 48V Magnetic Linear Panel Light

MFN Series | 48V Magnetic Linear Panel Light

$0.00

MFN Series — 48V Magnetic Linear Panel Light

The MFN Series is a premium 48V DC magnetic linear panel light engineered for large-scale commercial and architectural installations that demand seamless, continuous linear illumination. Available in three standard lengths — 300mm, 600mm, and 900mm — the MFN Series delivers powerful, uniform, glare-free illumination across open-plan offices, retail floors, showrooms, and hospitality spaces from a single, elegant magnetic track module.

With power outputs from 10W to 28W, CRI80 and CRI90 options, and TRIAC, 0-10V, and DALI dimming compatibility, the MFN Series provides the optical performance and control flexibility required by the most demanding architectural lighting specifications. SDCM<3 color consistency and flicker-free performance ensure a premium visual environment across every installation.

Features & Benefits

  • Large-Format Linear Panel: 300mm, 600mm, and 900mm lengths for seamless, continuous linear illumination at scale
  • Diffused Panel Output: High-transmission diffuser for soft, uniform, shadow-free illumination across wide areas
  • 48V DC Magnetic Mounting: Tool-free snap-on installation onto any compatible 48V magnetic track
  • UGR<19 Anti-Glare: Superior visual comfort for office, retail, and hospitality environments
  • CRI80 & CRI90 Options: Choose the right color rendering index for your application
  • Three Dimming Protocols: TRIAC, 0-10V, and DALI — compatible with all major building management systems
  • Wide CCT Range: 1800K, 3000K, 3500K, 4000K, 5000K, 6000K — plus 1800K/4000K/5700K DIP selectable
  • Superior Color Consistency: SDCM<3 ensures uniform color appearance across all fixtures
  • Flicker-Free Technology: Flicker index 0.002
  • Frame Options: White, Black, and Custom colors
  • Long Service Life: 50,000 hours rated lifespan
  • 5-Year Warranty: Backed by DansLED’s comprehensive guarantee

Typical Applications

  • Open-plan offices — UGR<19 continuous linear illumination for large workspaces
  • Retail floors & showrooms — powerful, uniform panel lighting for merchandise and vehicle display
  • Hotels & hospitality — elegant linear lighting for lobbies, corridors, and dining areas
  • Healthcare facilities — flicker-free, glare-controlled illumination for patient and staff environments
  • High-end residential — kitchen, living room, and dining area linear lighting

Specifications

Anti-Glare UGR < 19
Input Voltage 48V DC
Power Factor PF > 0.9
SDCM < 3
CCT 1800K / 3000K / 3500K / 4000K / 5000K / 6000K
1800K / 4000K / 5700K (DIP selectable)
Dimming TRIAC / 0-10V / DALI
Color of Frame White / Black / Customized
Flicker Free 0.002 (Flicker Index)
Life Span 50,000 hrs
Warranty 5 Years

Model Options

Model Power Size CRI80 Output CRI90 Output
DA-LTL10WF300 10W L300 × W22 × H45mm 800–900 lm 700–800 lm
DA-LTL20WF600 20W L600 × W22 × H45mm 1,600–1,800 lm 1,400–1,600 lm
DA-LTL28WF900 28W L900 × W22 × H45mm 2,200–2,500 lm 2,000–2,300 lm
