NDL Series | Pre-Embedded Ring Recessed Downlight

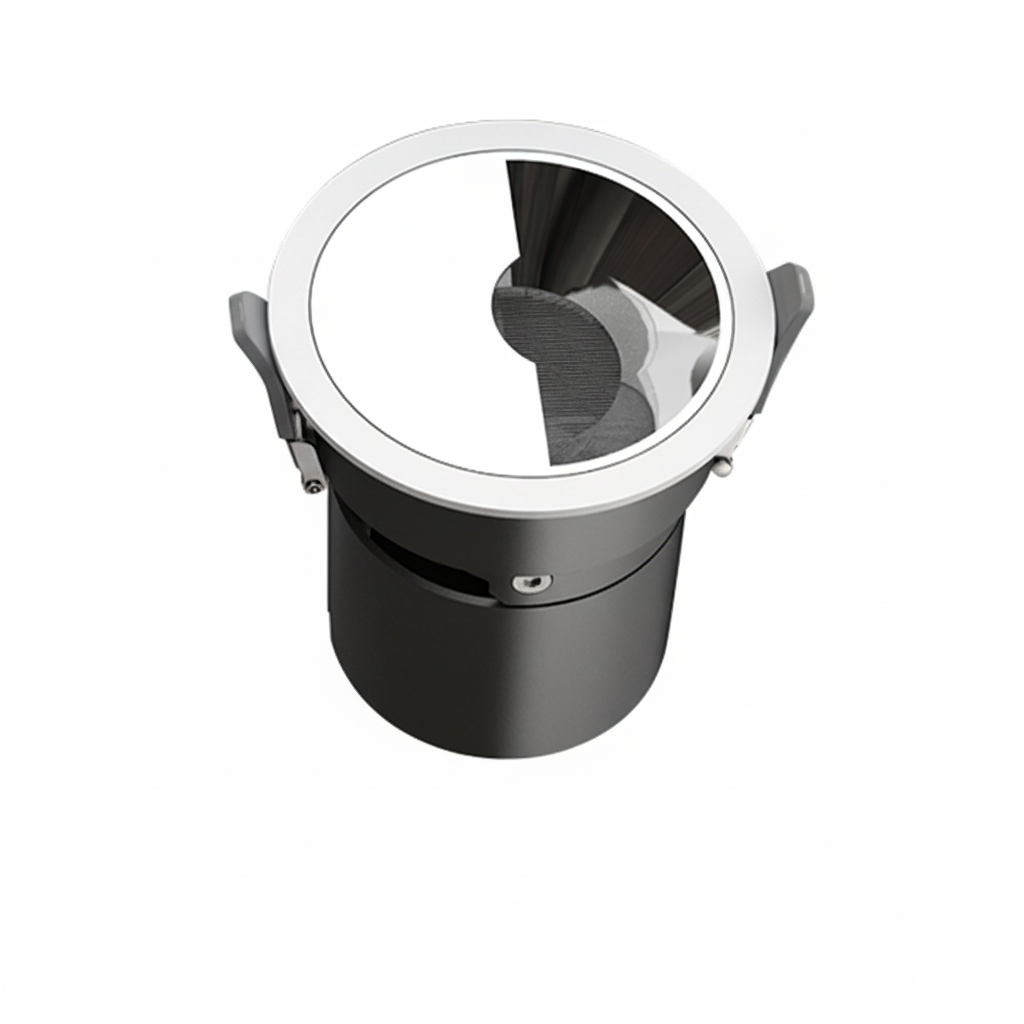

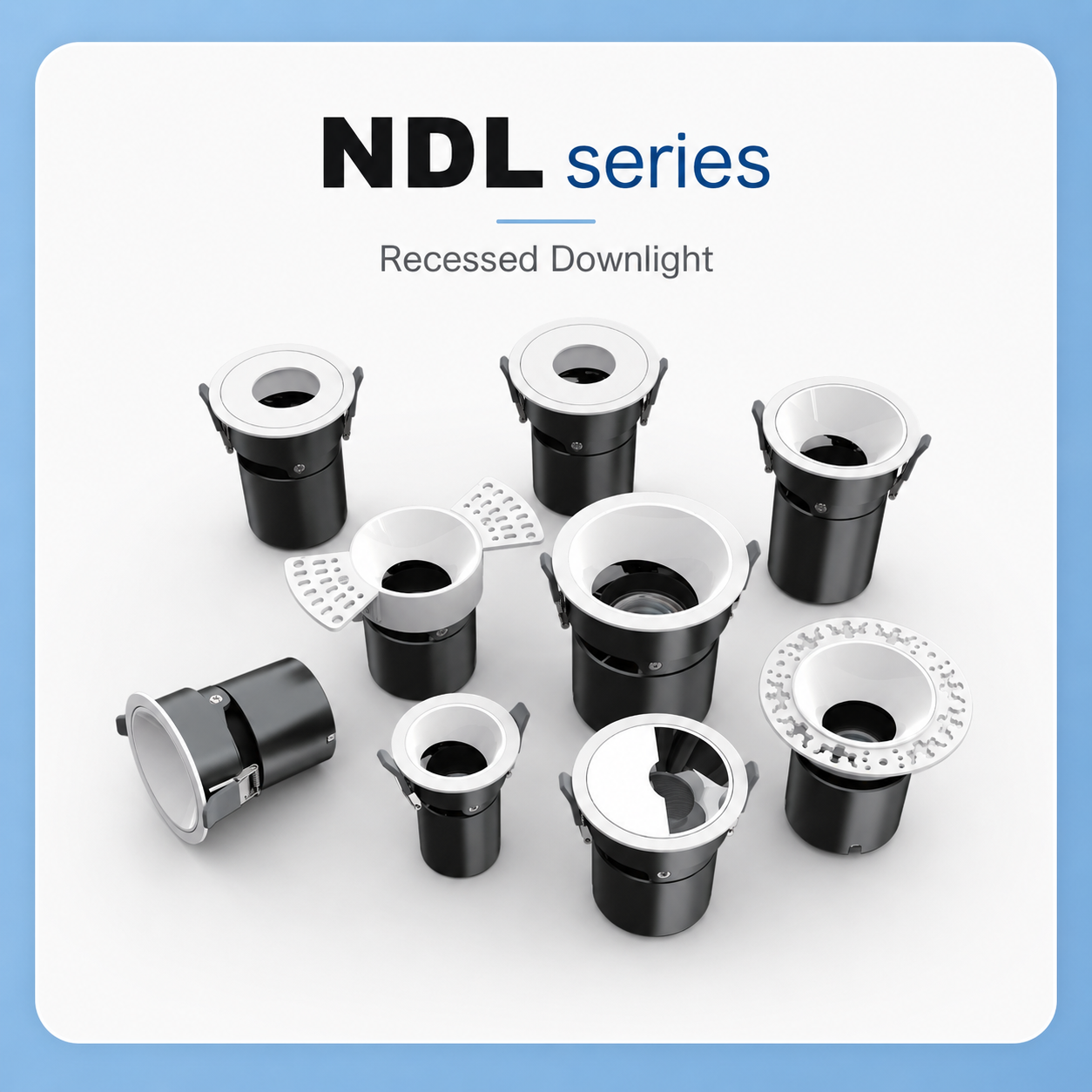

NDL Series — Pre-Embedded Ring Recessed Downlight

The NDL Series is a premium architectural recessed downlight system engineered for projects where ceiling aesthetics and installation precision are paramount. Uniquely designed to accept optional pre-embedded face rings and offset light cups, the NDL Series allows lighting designers to achieve a perfectly flush, seamless ceiling appearance — with the light source precisely positioned for wall-wash, accent, or general illumination as required.

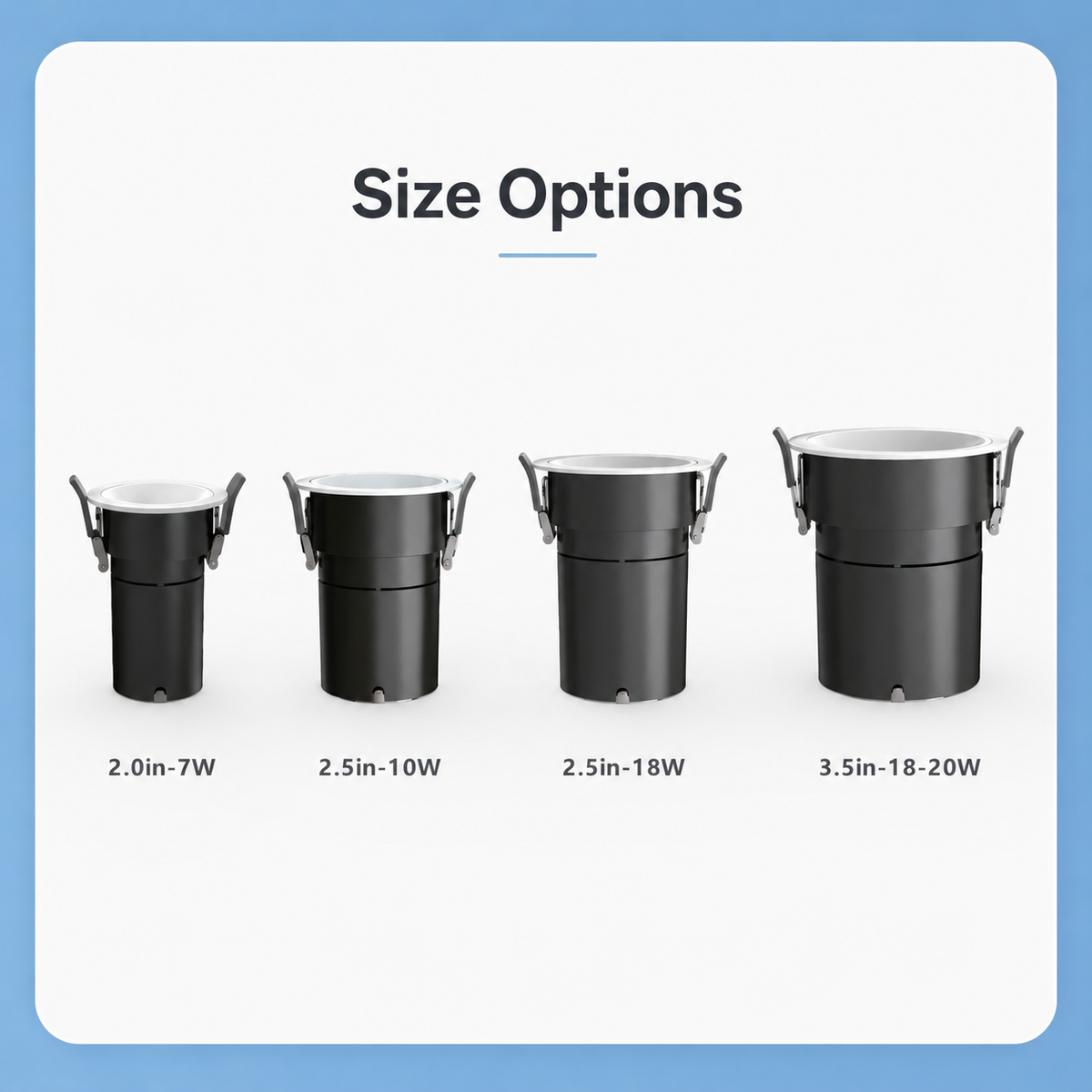

Available in four power configurations from 7W to 20W, with beam angle options from 15° to 55°, the NDL Series provides exceptional flexibility for high-specification commercial and hospitality projects. With TRIAC, 0-10V, and DALI dimming support, SDCM<3 color consistency, and a full CCT range from 2700K to 5000K, it delivers the optical precision and installation quality demanded by the most exacting architectural specifications.

Features & Benefits

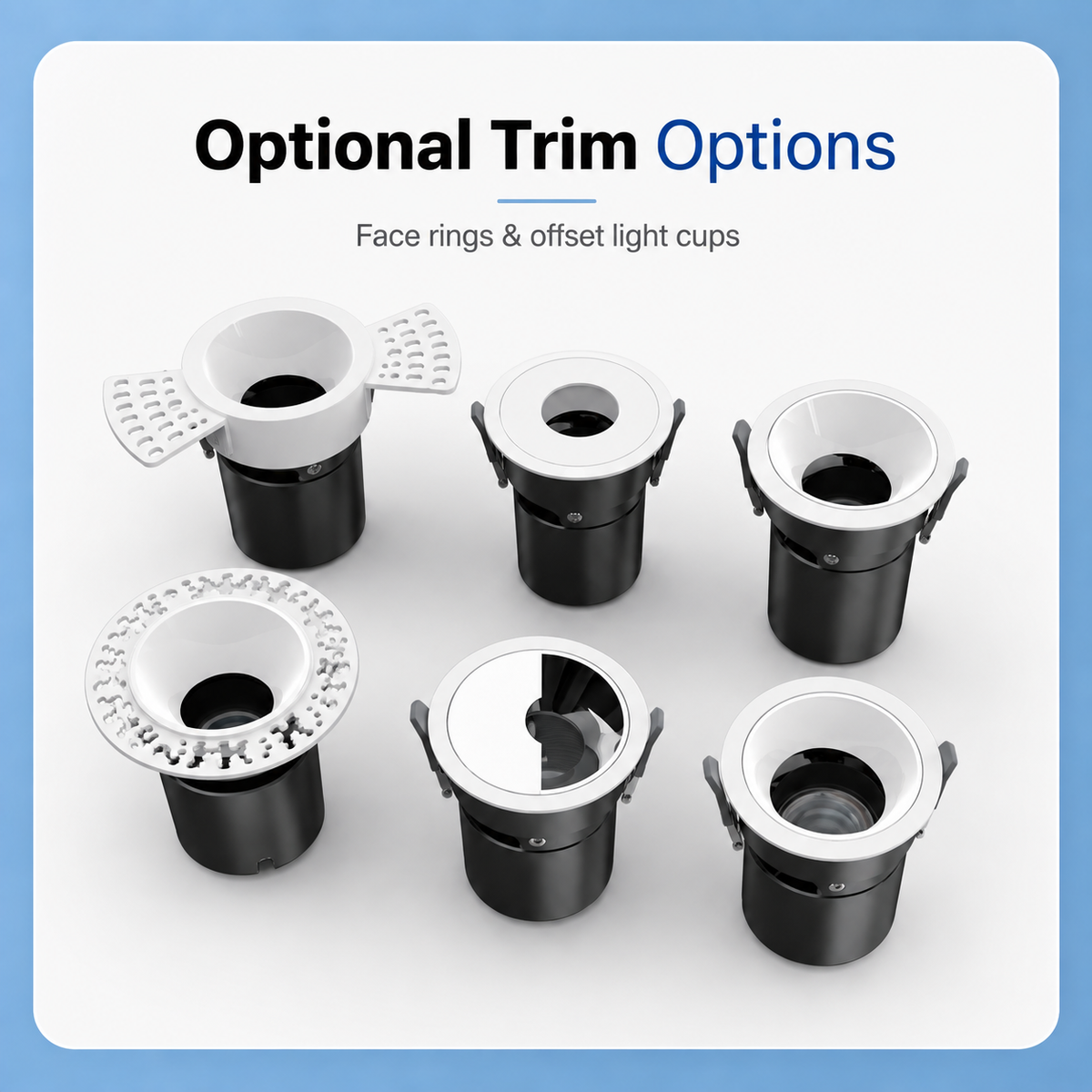

• Pre-Embedded Face Ring System: Optional pre-embedded face rings for a perfectly flush, seamless ceiling finish — the definitive solution for high-specification architectural projects
• Offset Light Cup Option: Adjustable offset light cups allow precise beam positioning for wall-wash and accent lighting without moving the ceiling aperture

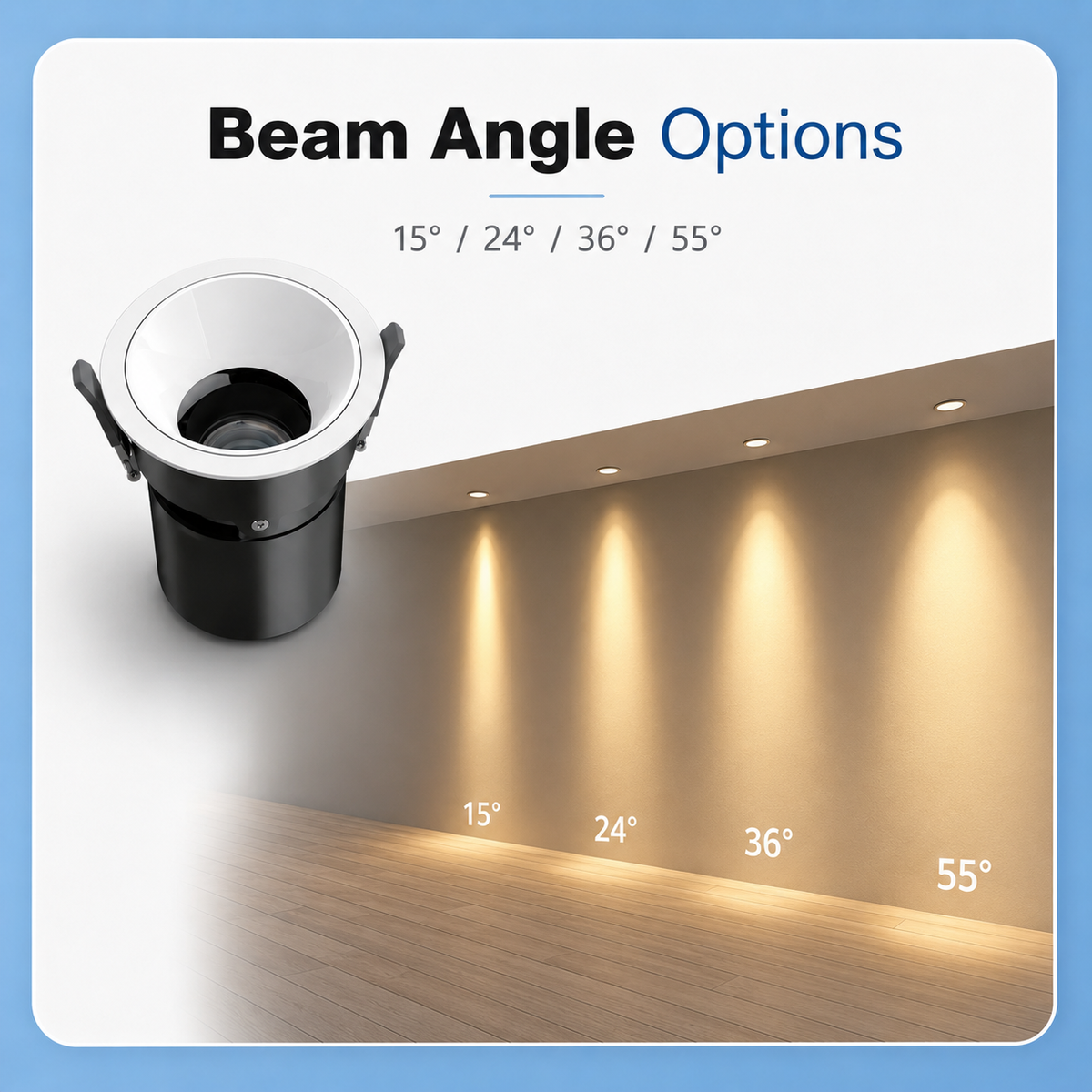

• Multiple Beam Angles: 15°, 24°, 36°, and 55° options — specify the right beam for every application

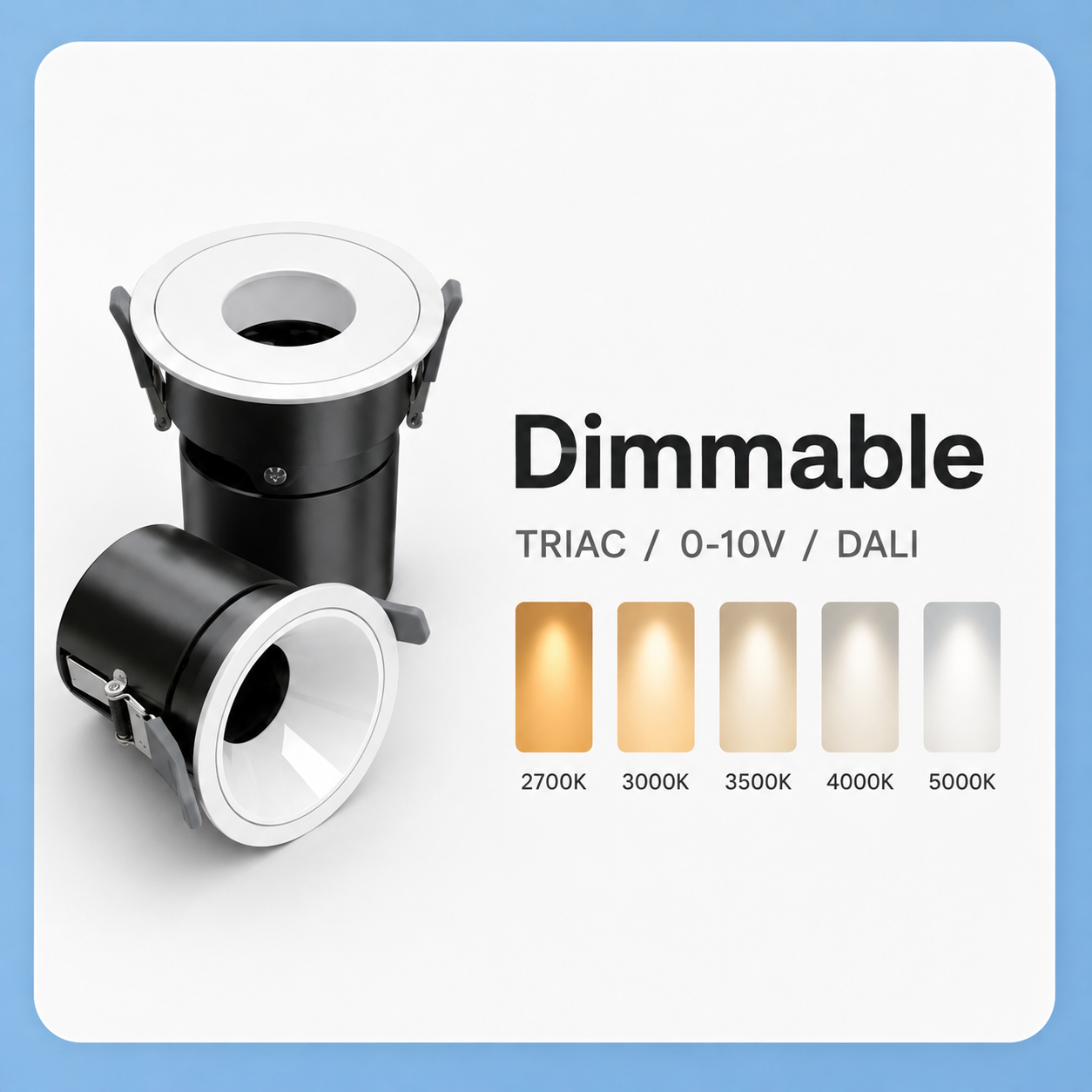

• Three Dimming Protocols: TRIAC, 0-10V, and DALI — compatible with all major building management and smart lighting systems
• Wide CCT Range: 2700K, 3000K, 3500K, 4000K, and 5000K to suit any design intent

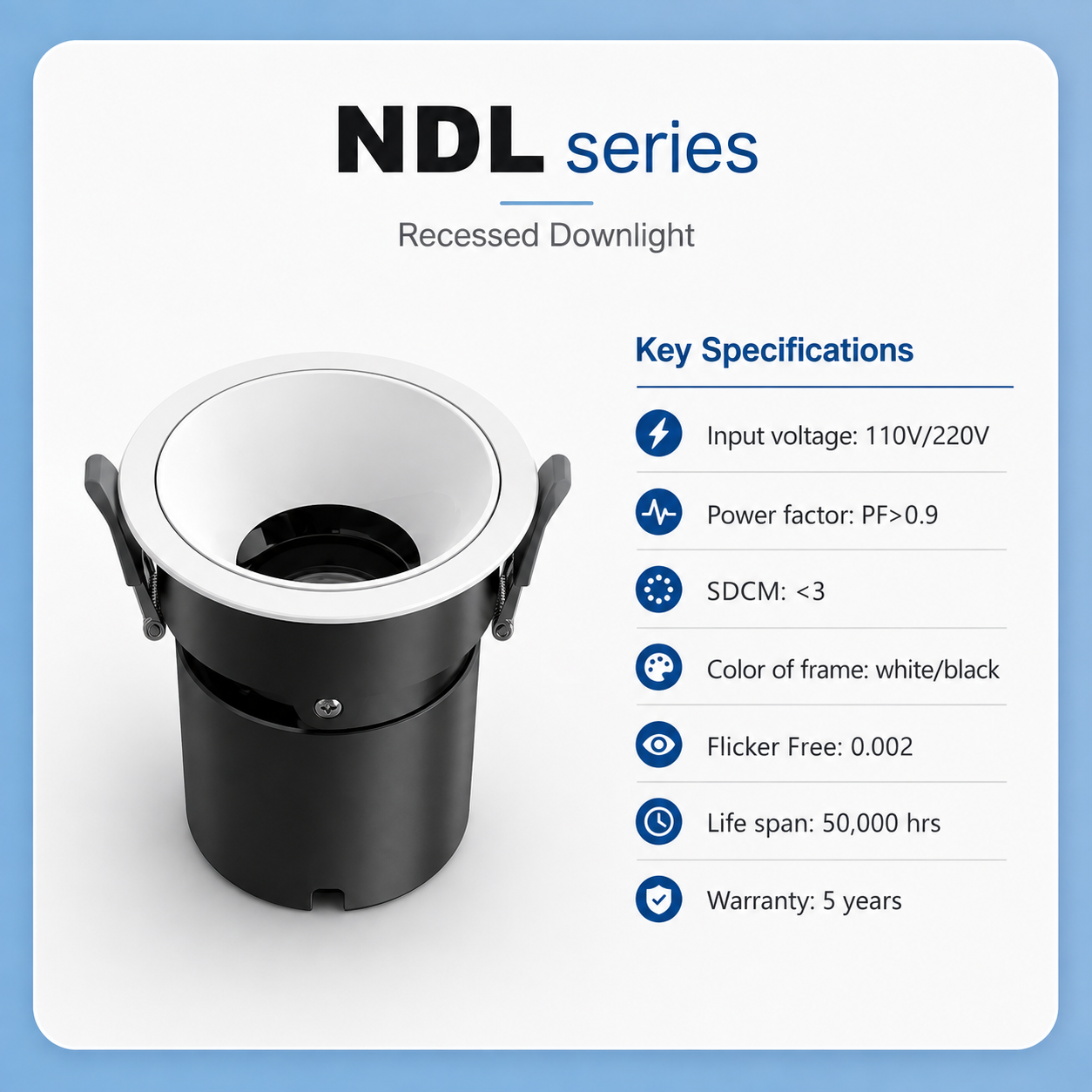

• Superior Color Consistency: SDCM<3 ensures uniform color appearance across all fixtures in an installation
• Flicker-Free Technology: Flicker index 0.002 — protects occupant eye health and comfort
• High Power Factor: PF>0.9 for energy-efficient operation
• Two Frame Colors: White and Black to complement any interior aesthetic
• Universal Voltage: 110V/220V for global compatibility
• Long Service Life: 50,000 hours rated lifespan
• 5-Year Warranty: Backed by DansLED’s comprehensive guarantee

Typical Applications

• High-specification commercial interiors — where a seamless, flush ceiling finish is a design requirement
• Luxury hotels & hospitality — pre-embedded rings for a premium, plaster-in aesthetic
• Art galleries & museums — offset cups for precise beam positioning without ceiling modification
• Corporate headquarters & boardrooms — architectural lighting with maximum design flexibility
• High-end residential — living rooms, dining areas, and feature lighting with a bespoke finish

Specifications

Power & Size Options
