SET Series — Surface-Mounted Cylinder Spotlight

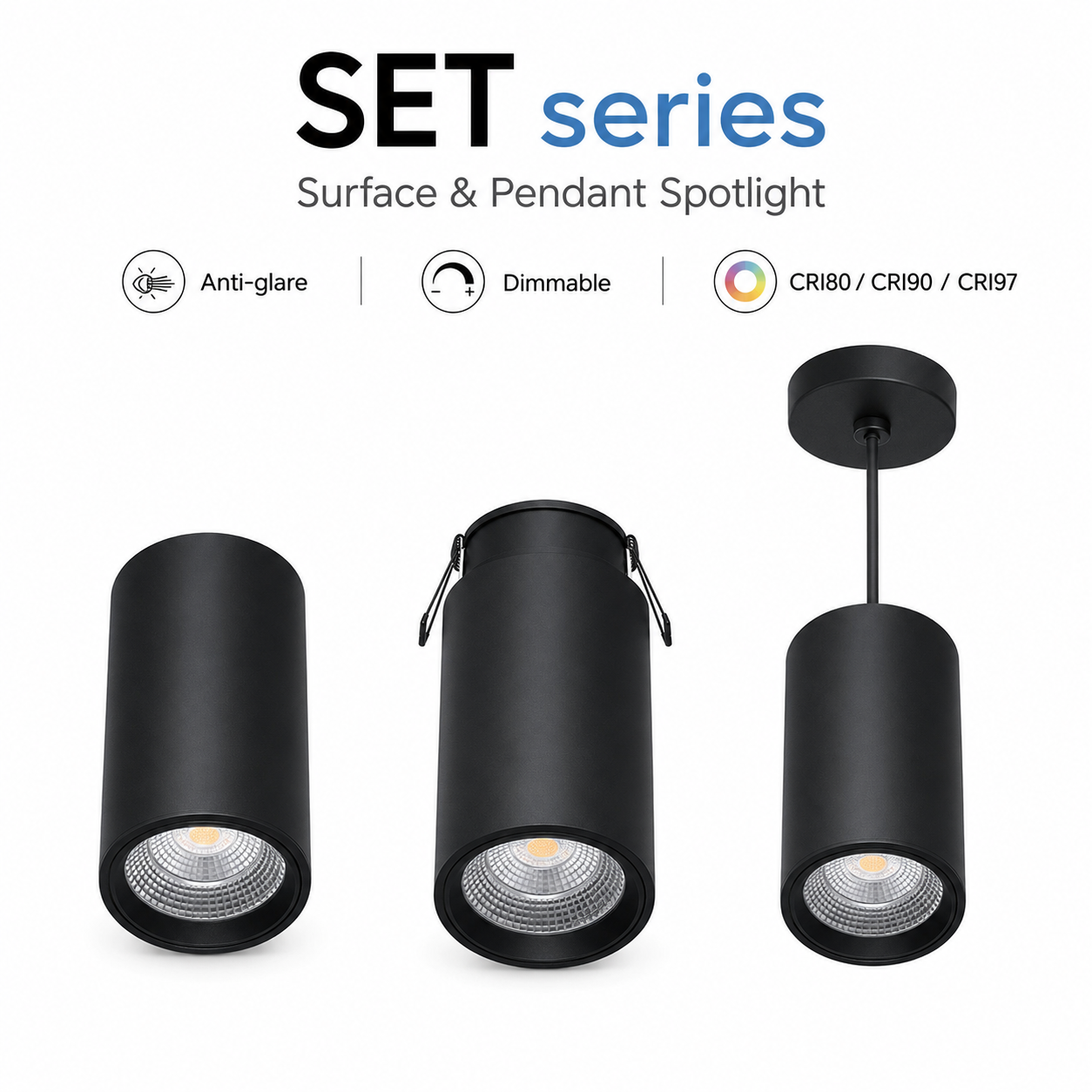

The SET Series is a premium surface-mounted cylinder spotlight engineered for architects and interior designers who demand the highest levels of optical precision and color rendering in a clean, minimal ceiling-mounted form. Directly surface-mounted to the ceiling without the need for a recess or pendant suspension, the SET Series delivers powerful, directional illumination with a refined cylindrical profile that integrates seamlessly into any contemporary interior — from luxury retail and hospitality to corporate offices and residential spaces.

Available in four power configurations from 8W to 32W, with CRI80, CRI90, and CRI97 options, the SET Series provides the color rendering performance required by the most demanding specifications. Beam angle flexibility is achieved through interchangeable Reflector (30°/40°/60°) and Lens (15°/24°/36°/60°) optics, enabling precise control of light distribution for any application. Two installation configurations (Type A and Type B) accommodate a wide range of ceiling requirements.

Features & Benefits

  • Surface-Mounted Installation: No ceiling recess required — clean, minimal profile suitable for any ceiling type including concrete, timber, and plasterboard
  • CRI80 / CRI90 / CRI97 Options: Industry-leading color rendering for luxury retail, hospitality, and art gallery applications

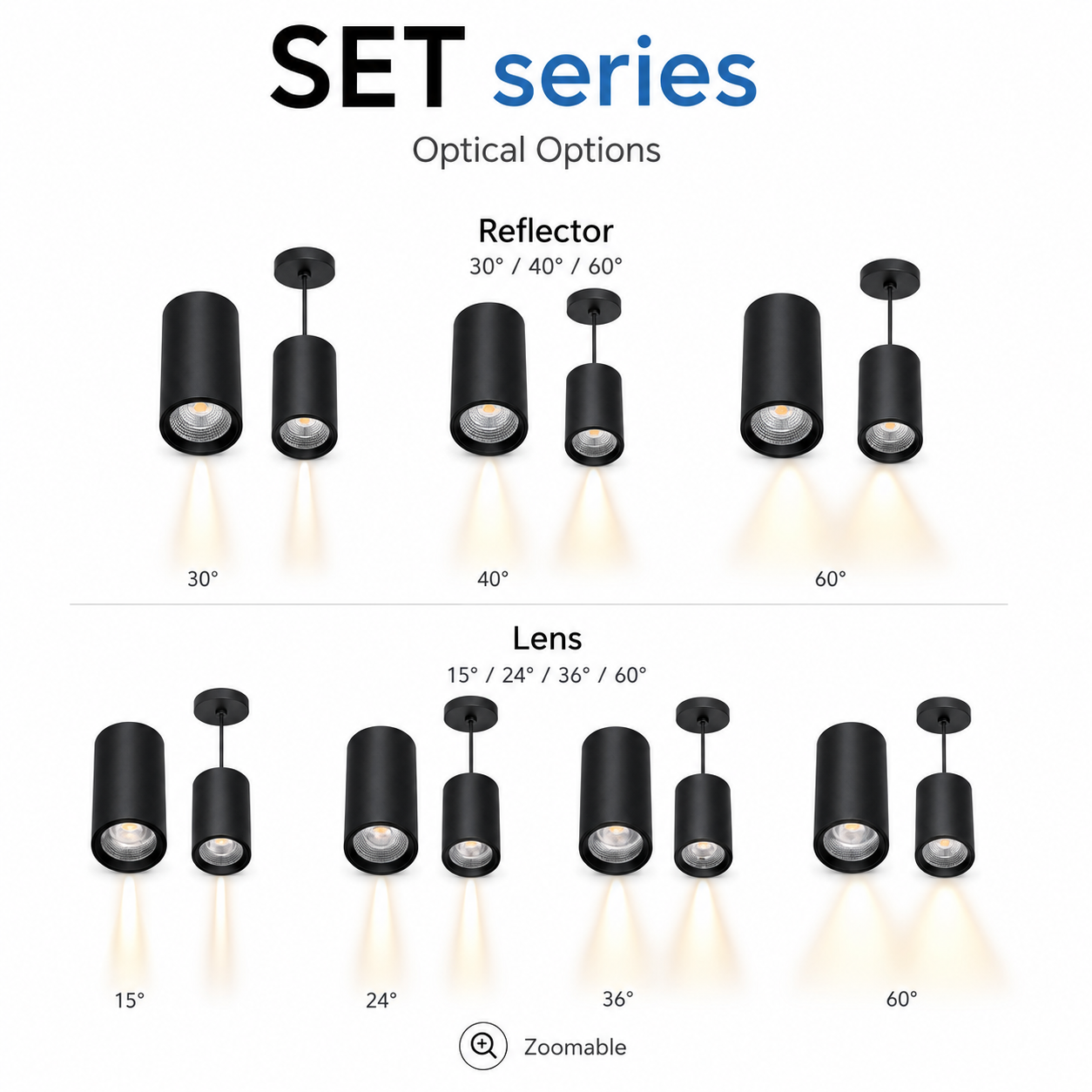

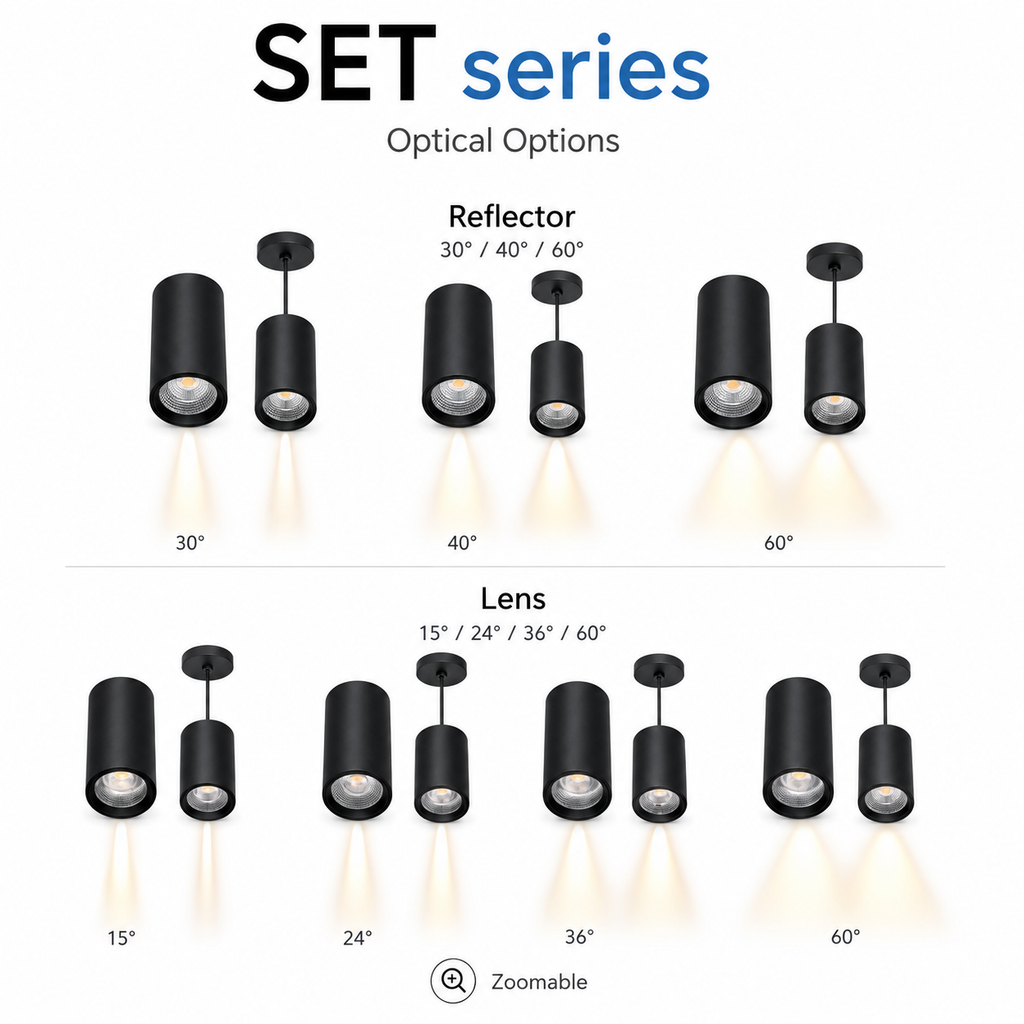

  • Flexible Beam Optics: Reflector 30°/40°/60° and Lens 15°/24°/36°/60° — precise beam control for accent, general, and wash lighting
  • Two Installation Types: Type A and Type B configurations for maximum ceiling flexibility
  • UGR Anti-Glare Performance: UGR L12-15 / R15-19 for superior visual comfort in occupied spaces
  • Wide Voltage Range: 200-240VAC / 100-277VAC — compatible with global electrical standards

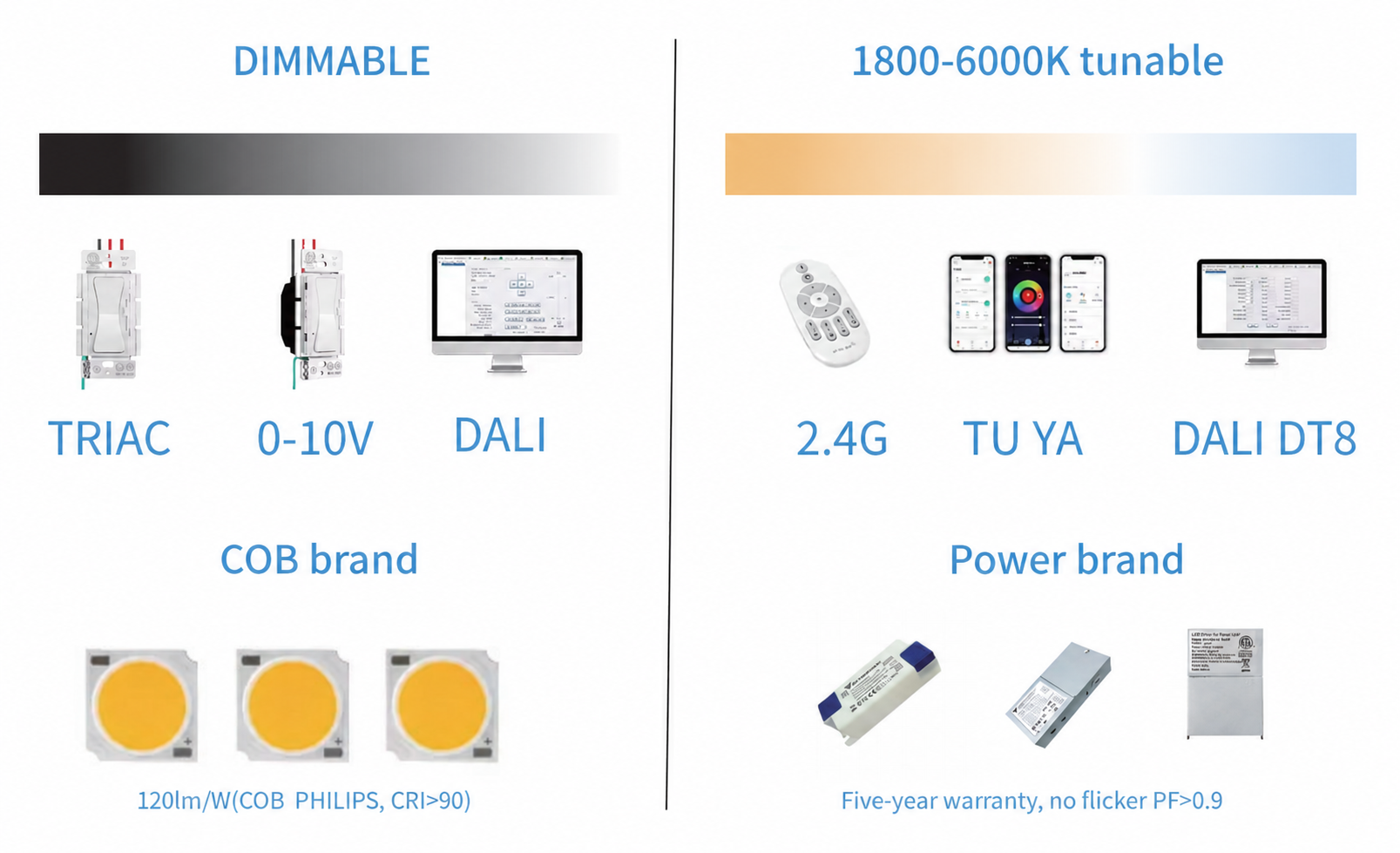

  • Three Dimming Protocols: TRIAC, 0-10V, and DALI — compatible with all major building management and smart lighting systems
  • Wide CCT Range: 1800K, 3000K, 3500K, 4000K, 5000K, 6000K — plus 1800K/4000K/5700K DIP selectable
  • Superior Color Consistency: SDCM<3 ensures uniform color appearance across all fixtures
  • Flicker-Free Technology: Flicker index 0.002
  • Frame Options: White, Black, and Custom colors
  • Long Service Life: 50,000 hours rated lifespan
  • 5-Year Warranty: Backed by DansLED’s comprehensive guarantee

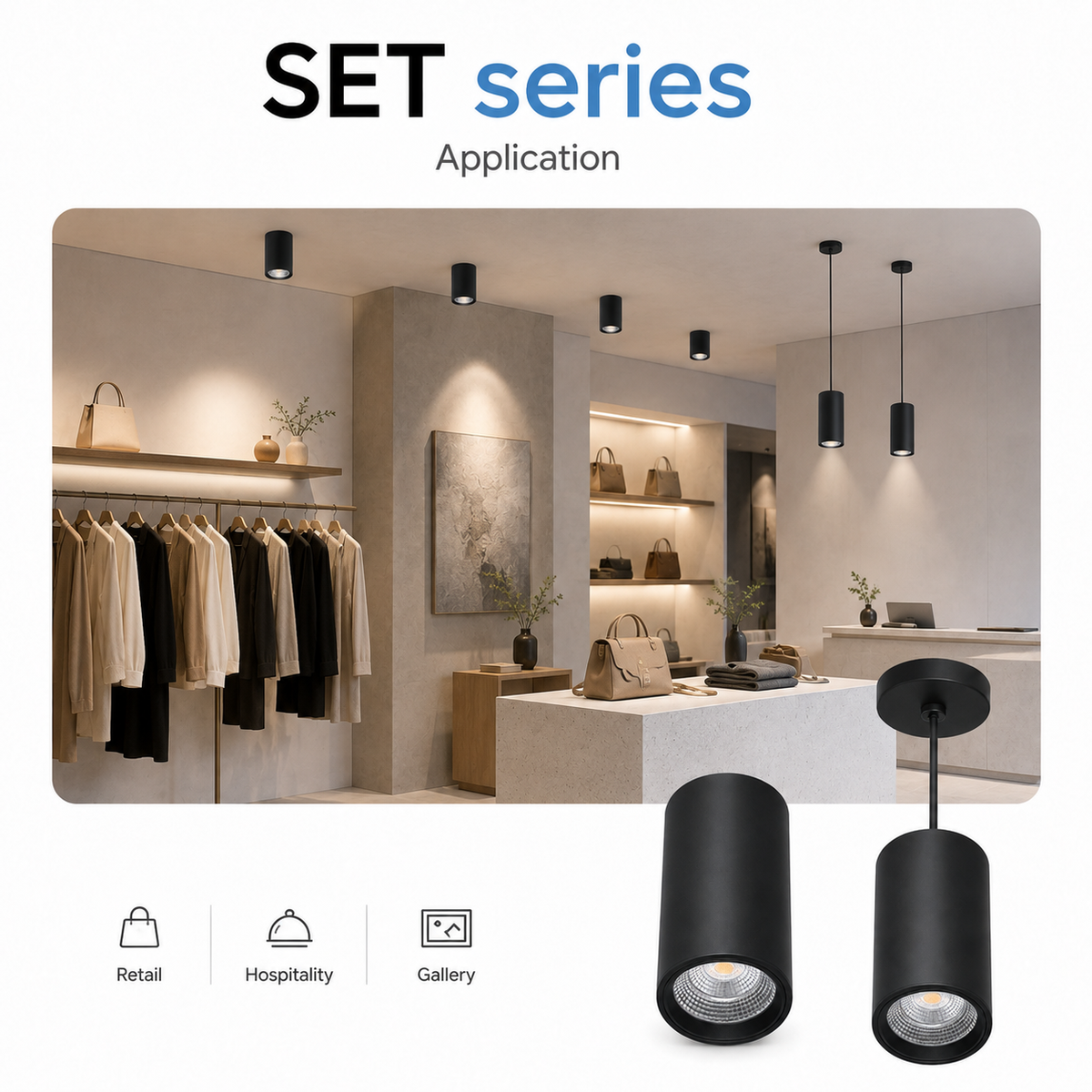

Typical Applications

  • Luxury retail & boutiques — CRI97 surface-mounted spotlights for accurate merchandise color rendering
  • Hotels & fine dining — warm, dimmable ceiling spotlights for premium guest experience
  • Art galleries & museums — precise beam control with CRI97 for faithful artwork illumination
  • Corporate offices & reception areas — UGR anti-glare surface-mounted lighting for visual comfort
  • High-end residential — living room, dining area, and kitchen surface-mounted accent lighting

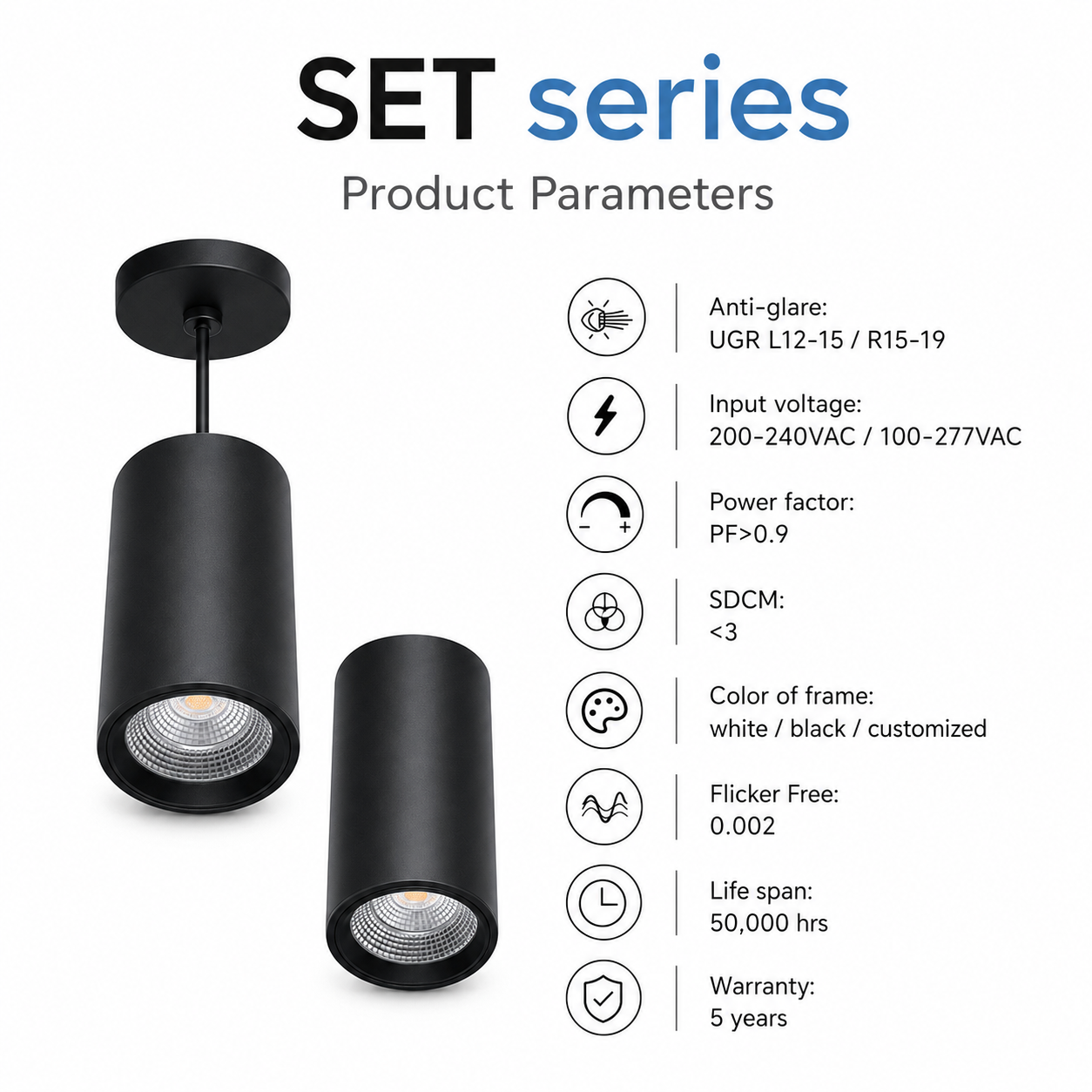

Specifications

Anti-Glare UGR L12-15 / R15-19
Input Voltage 200-240VAC / 100-277VAC
Power Factor PF > 0.9
SDCM < 3
CCT 1800K / 3000K / 3500K / 4000K / 5000K / 6000K
1800K / 4000K / 5700K (DIP selectable)
Dimming TRIAC / 0-10V / DALI
Beam Angle (Reflector) 30° / 40° / 60°
Beam Angle (Lens) 15° / 24° / 36° / 60°
Color of Frame White / Black / Customized
Flicker Free 0.002 (Flicker Index)
Life Span 50,000 hrs
Warranty 5 Years

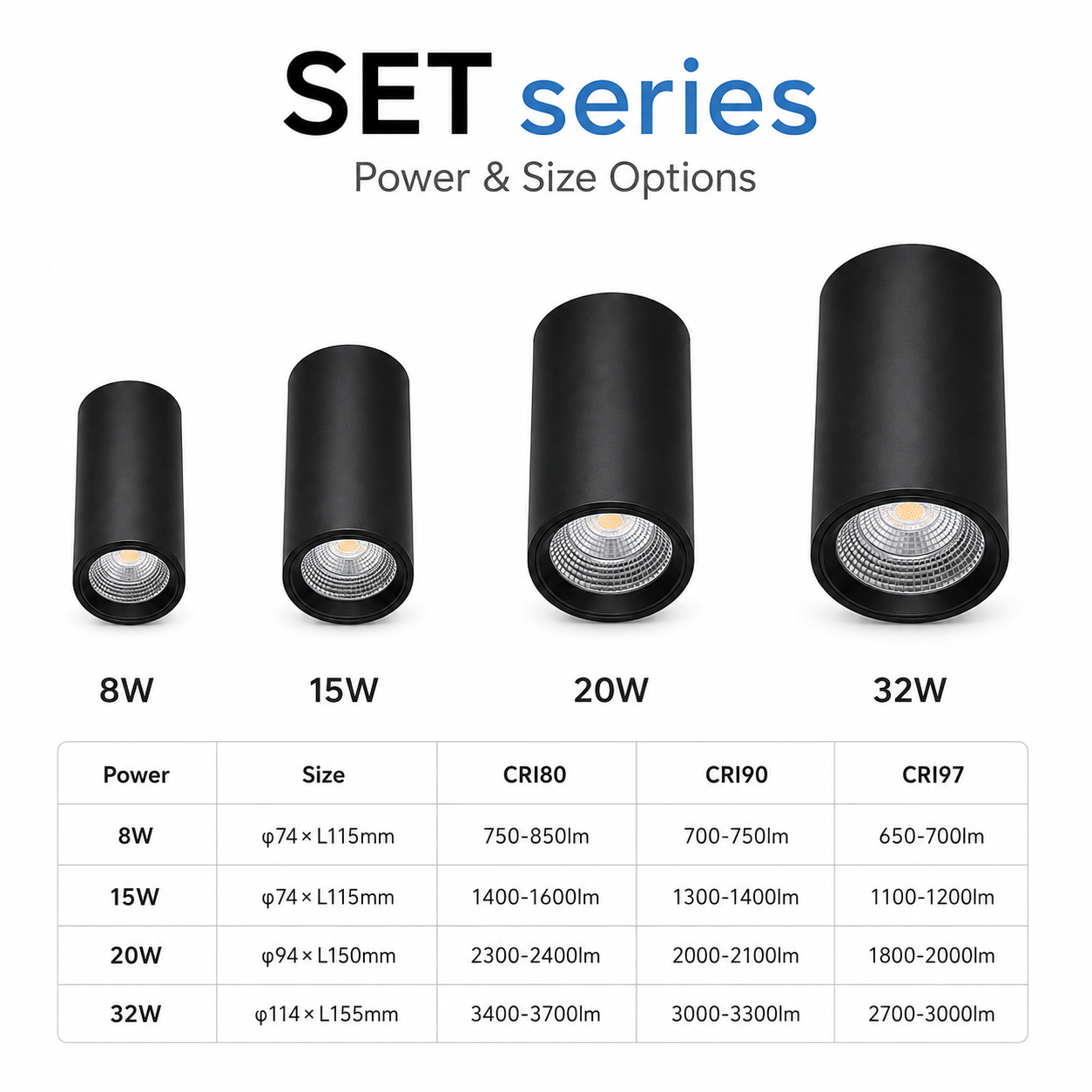

Model Options

Model Power Size CRI80 CRI90 CRI97
DA-FL8WS74 8W φ74 × L115mm 750–850 lm 700–750 lm 650–700 lm
DA-FL15WS74 15W φ74 × L115mm 1,400–1,600 lm 1,300–1,400 lm 1,100–1,200 lm
DA-FL20WS94 20W φ94 × L150mm 2,300–2,400 lm 2,000–2,100 lm 1,800–2,000 lm
DA-FL32WS114 32W φ114 × L155mm 3,400–3,700 lm 3,000–3,300 lm 2,700–3,000 lm
