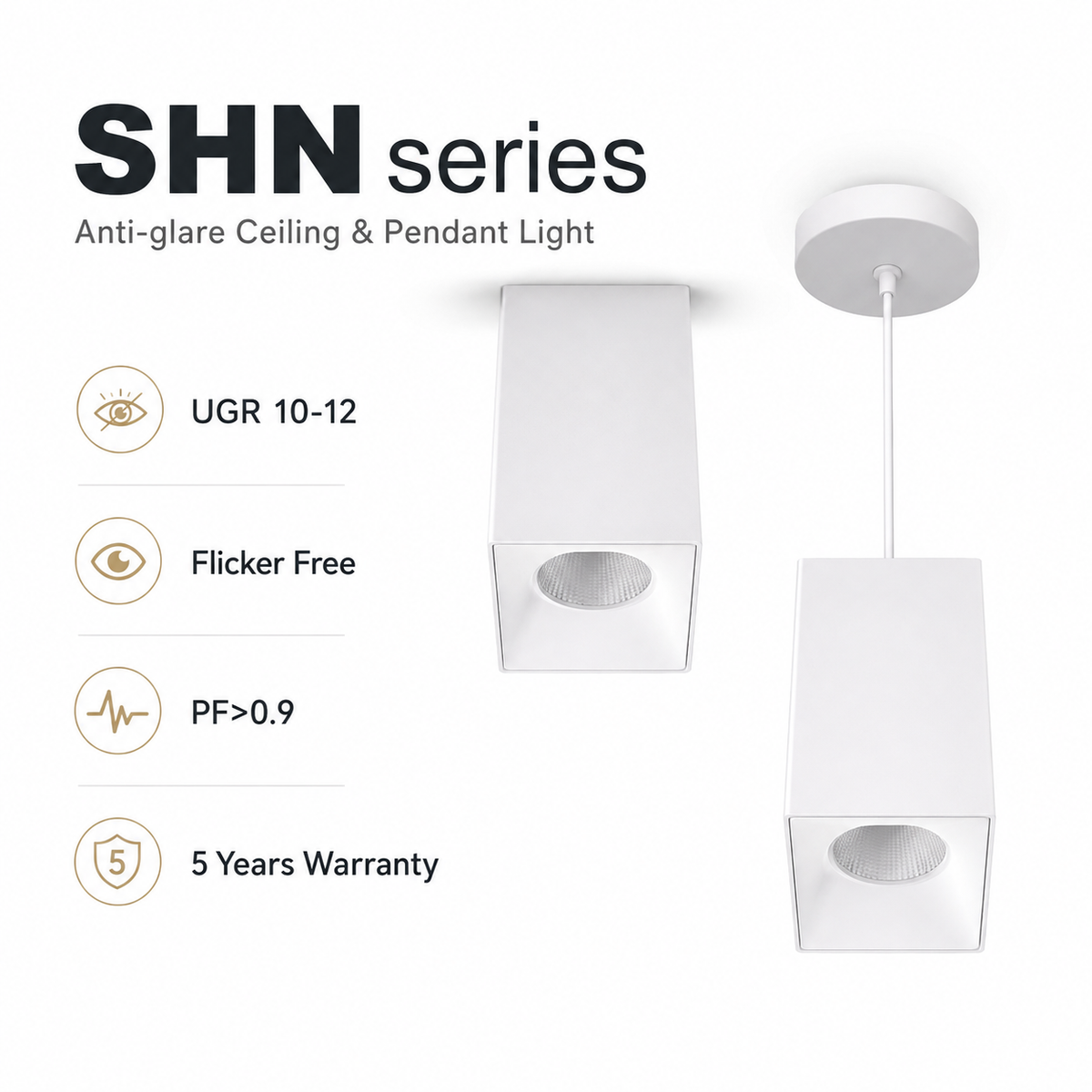

SHN Series Anti-glare Ceiling and Pendant Light - white square surface-mounted and pendant versions UGR 10-12 Flicker Free PF>0.9 5 Years Warranty
  • SHN Series Anti-glare Ceiling and Pendant Light - white square surface-mounted and pendant versions UGR 10-12 Flicker Free PF>0.9 5 Years Warranty

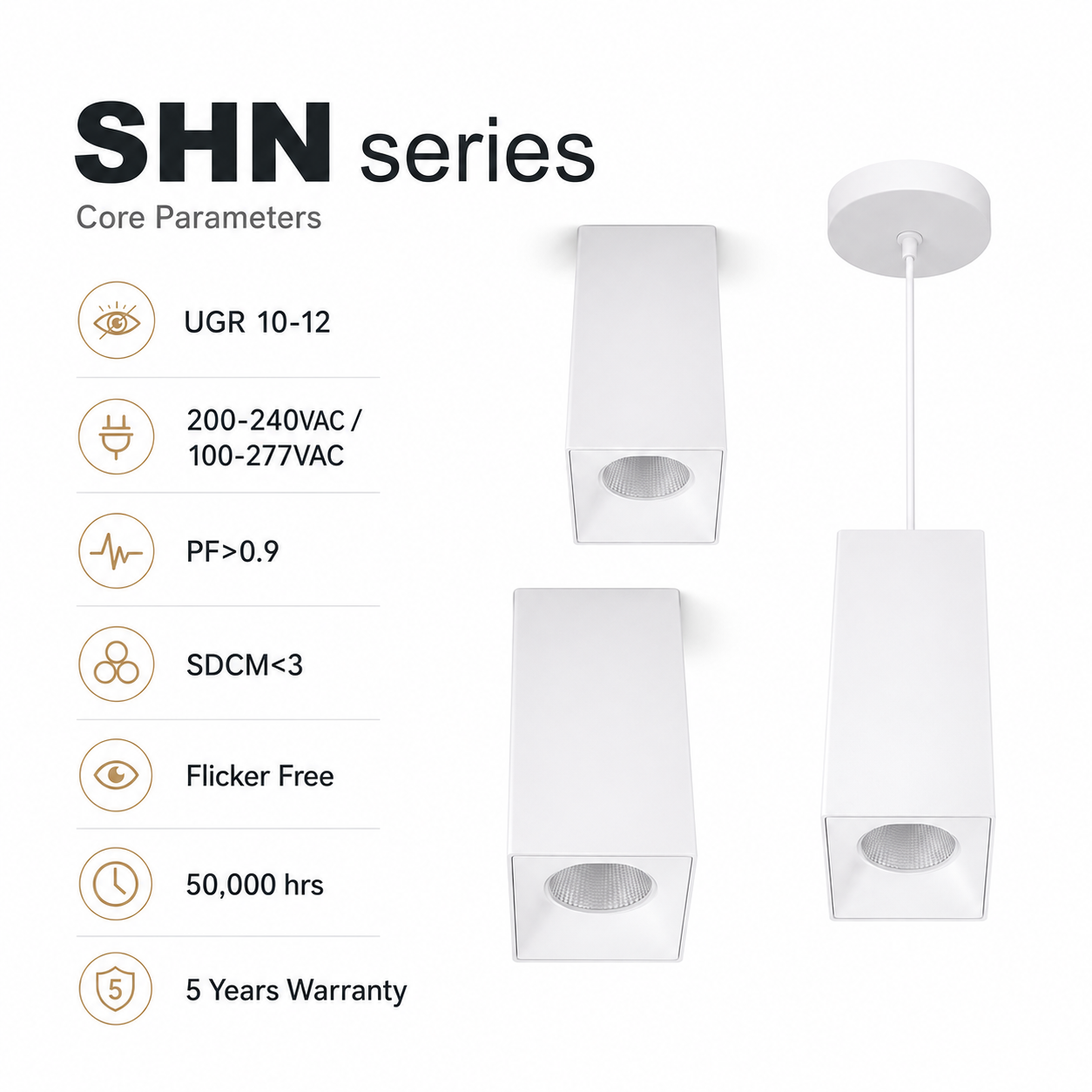

  • SHN Series Core Parameters - white square surface-mounted small and large pendant cylinder UGR 10-12 200-240VAC 100-277VAC PF>0.9 SDCM<3 Flicker Free 50000hrs 5 Years Warranty

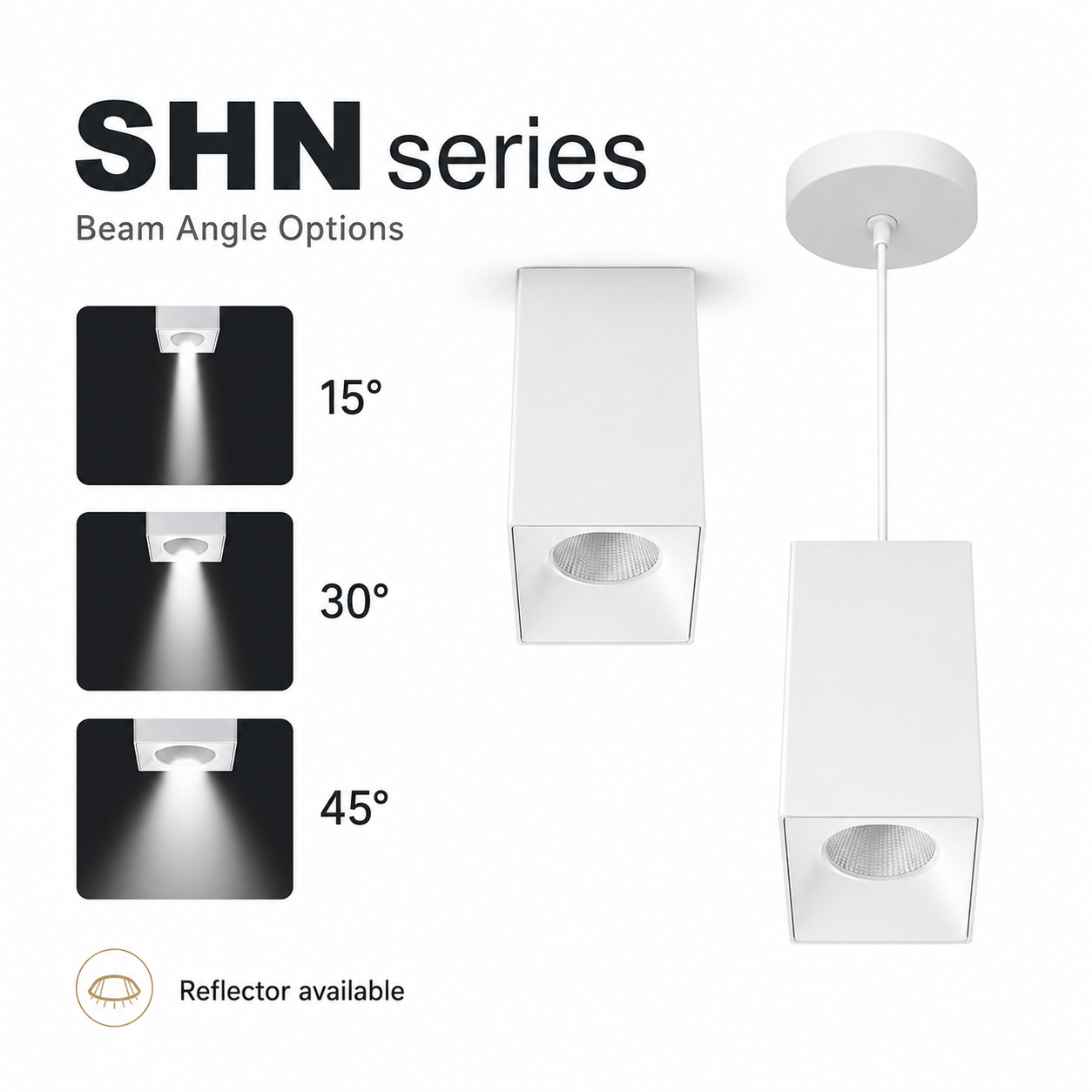

  • SHN Series Beam Angle Options - Reflector 15 degree 30 degree 45 degree beam pattern comparison white square surface-mounted and pendant spotlight

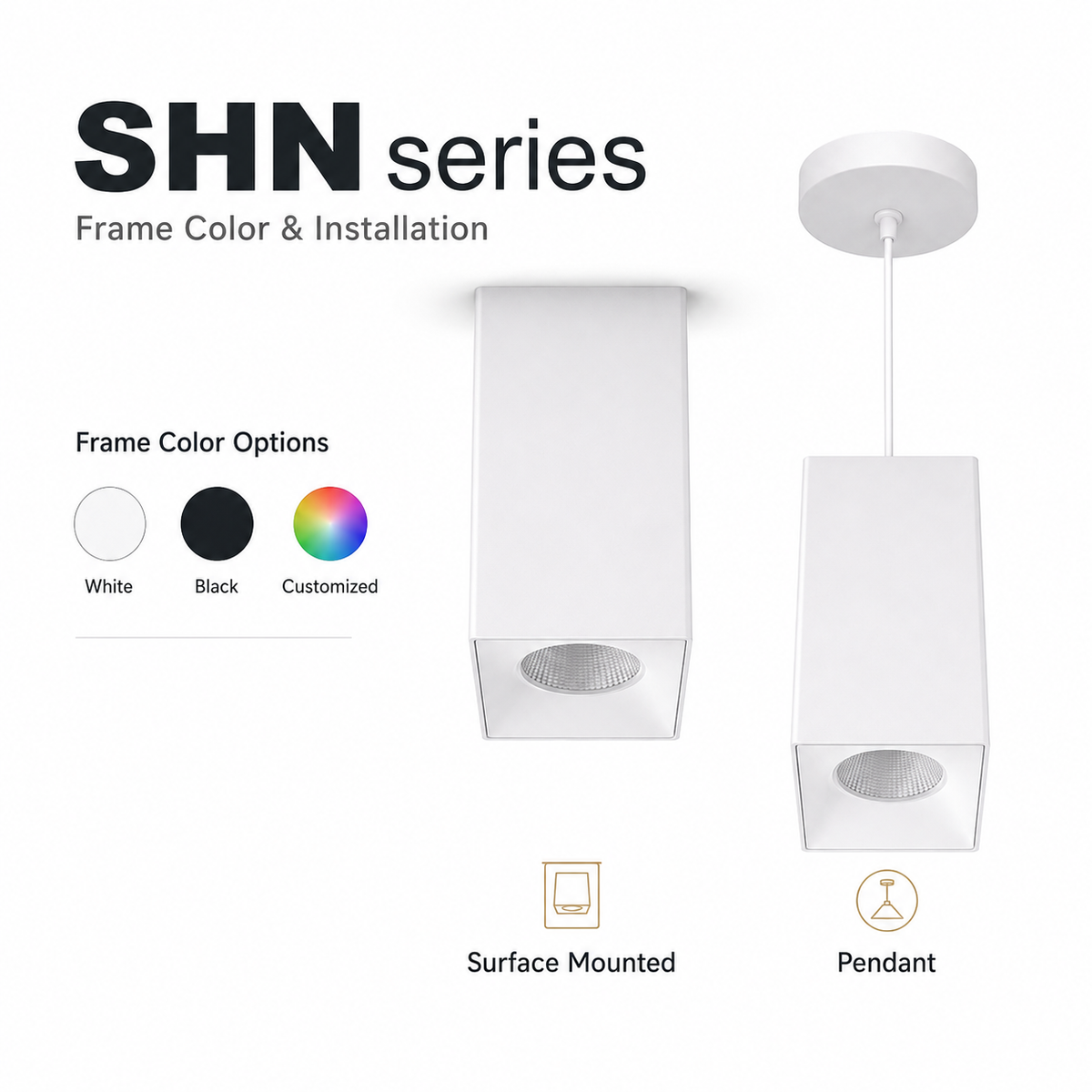

  • SHN Series Frame Color and Installation - Frame Color Options White Black Customized Surface Mounted and Pendant installation white square cylinder spotlight

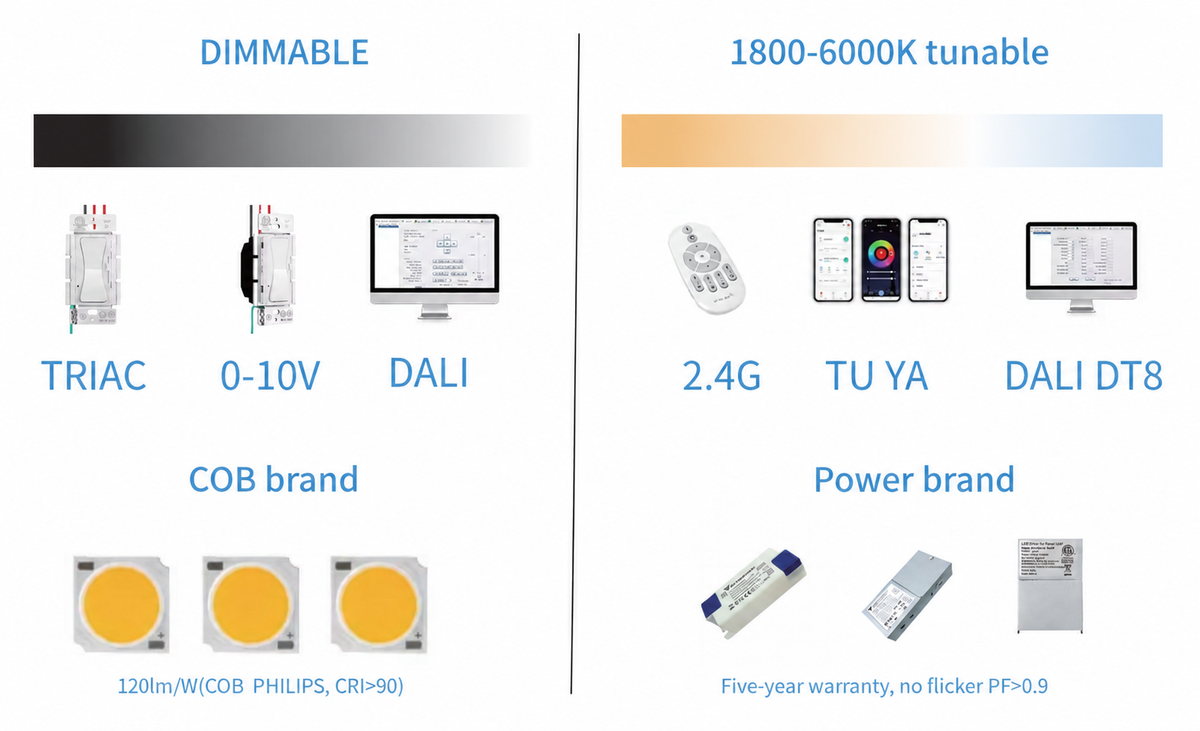

  • SHN Series Dimmable TRIAC 0-10V DALI and 1800-6000K tunable 2.4G TU YA DALI DT8 COB Philips 120lm/W CRI>90 five-year warranty no flicker PF>0.9

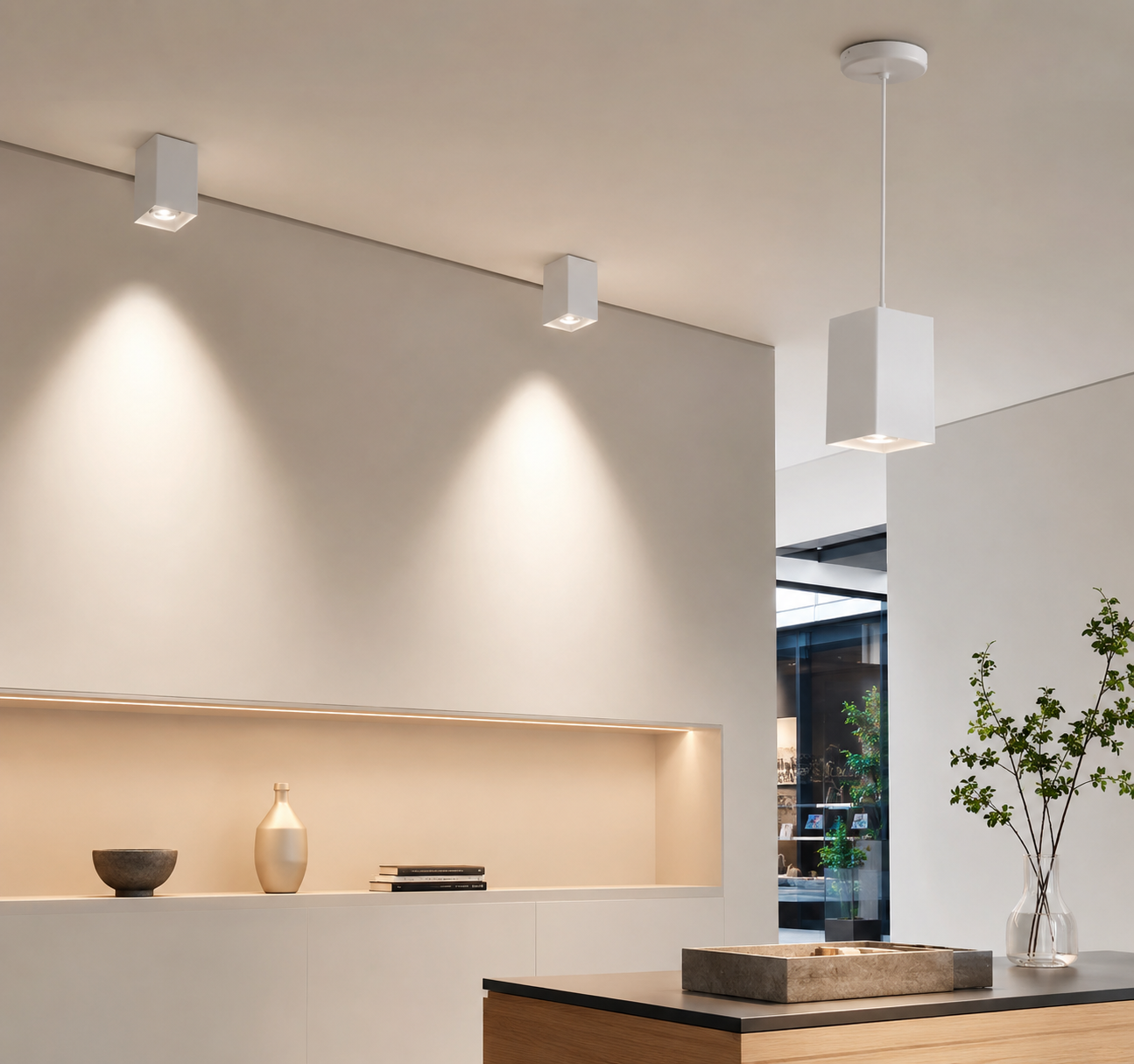

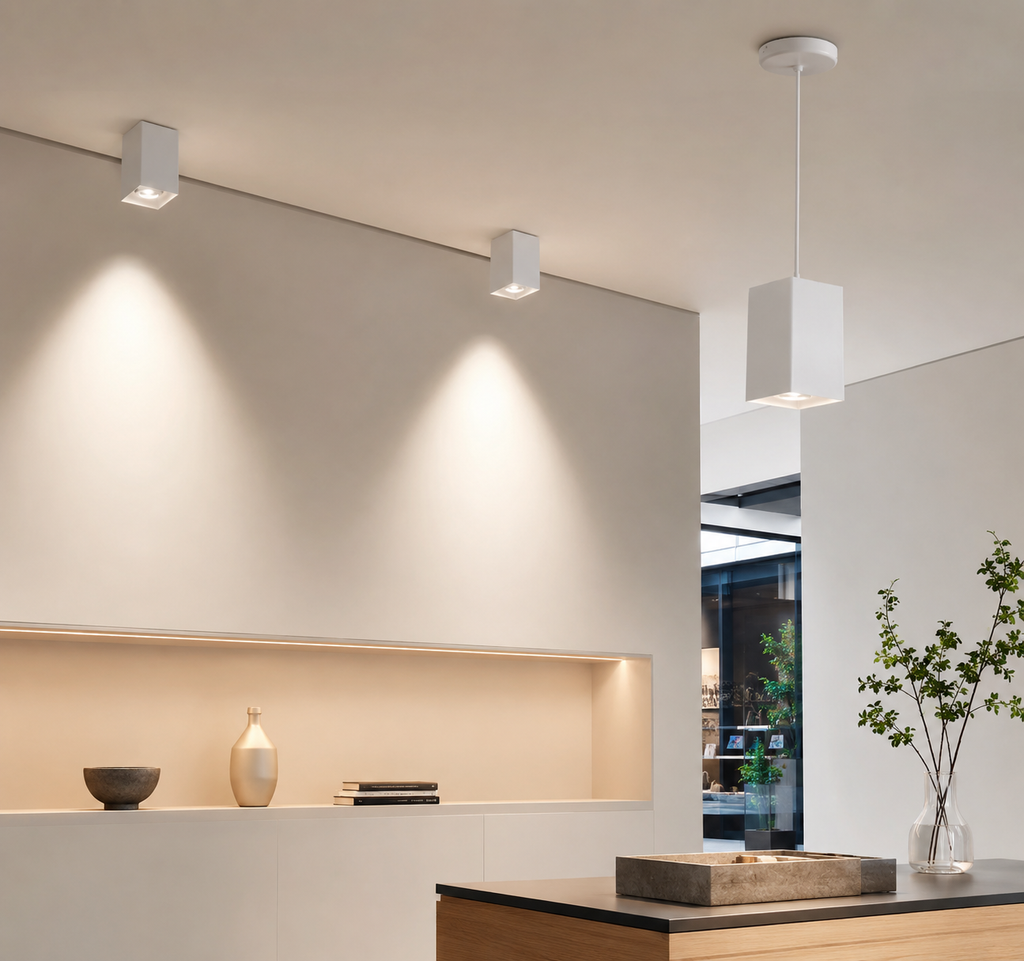

  • SHN Series Application - minimalist interior design showroom with white square surface-mounted spotlights on ceiling and white square pendant spotlight over reception desk warm 3000K
  • SHN Series Anti-glare Ceiling and Pendant Light - white square surface-mounted and pendant versions UGR 10-12 Flicker Free PF>0.9 5 Years Warranty
  • SHN Series Core Parameters - white square surface-mounted small and large pendant cylinder UGR 10-12 200-240VAC 100-277VAC PF>0.9 SDCM<3 Flicker Free 50000hrs 5 Years Warranty
  • SHN Series Beam Angle Options - Reflector 15 degree 30 degree 45 degree beam pattern comparison white square surface-mounted and pendant spotlight
  • SHN Series Frame Color and Installation - Frame Color Options White Black Customized Surface Mounted and Pendant installation white square cylinder spotlight
  • SHN Series Dimmable TRIAC 0-10V DALI and 1800-6000K tunable 2.4G TU YA DALI DT8 COB Philips 120lm/W CRI>90 five-year warranty no flicker PF>0.9
  • SHN Series Application - minimalist interior design showroom with white square surface-mounted spotlights on ceiling and white square pendant spotlight over reception desk warm 3000K
SHN Series | Square Surface & Pendant Spotlight

SHN Series | Square Surface & Pendant Spotlight

$0.00

SHN Series — Square Surface & Pendant Spotlight

The SHN Series is a premium square-form surface-mounted and pendant spotlight engineered for architects and interior designers who demand the highest levels of anti-glare performance, optical precision, and color rendering in a distinctive square cylindrical form. With an exceptional UGR of 10–12 — among the lowest available in commercial LED spotlights — the SHN Series delivers virtually glare-free illumination that is ideal for the most visually sensitive environments, including luxury retail, art galleries, healthcare, and high-end hospitality.

Available in six power configurations from 14W to 66W, with CRI80, CRI90, and CRI97 options, and Reflector optics in 15°/30°/45° beam angles, the SHN Series provides the optical performance and control flexibility required by the most demanding architectural lighting specifications. The square form factor offers a distinctive alternative to conventional round cylinder spotlights, creating a refined geometric aesthetic that complements contemporary and minimalist interior design.

Features & Benefits

  • UGR 10–12 Ultra-Low Glare: Exceptional anti-glare performance for the most visually sensitive environments
  • Square Form Factor: Distinctive geometric aesthetic for contemporary and minimalist interiors
  • CRI80 / CRI90 / CRI97 Options: Industry-leading color rendering for luxury retail, hospitality, and art gallery applications
  • Reflector Optics: 15°/30°/45° beam angles for precise control of light distribution
  • Surface & Pendant Installation: Dual-mode installation — surface-mount or pendant suspension without changing the fixture body
  • Wide Voltage Range: 200-240VAC / 100-277VAC — compatible with global electrical standards
  • Three Dimming Protocols: TRIAC, 0-10V, and DALI — compatible with all major building management and smart lighting systems
  • Wide CCT Range: 1800K, 3000K, 3500K, 4000K, 5000K, 6000K — plus 1800K/4000K/5700K DIP selectable
  • Superior Color Consistency: SDCM<3 ensures uniform color appearance across all fixtures
  • Flicker-Free Technology: Flicker index 0.002
  • Frame Options: White, Black, and Custom colors
  • Long Service Life: 50,000 hours rated lifespan
  • 5-Year Warranty: Backed by DansLED’s comprehensive guarantee

Typical Applications

  • Luxury retail & boutiques — ultra-low glare CRI97 spotlights for accurate merchandise color rendering
  • Art galleries & museums — UGR10 precision lighting for faithful artwork illumination
  • Healthcare facilities — flicker-free, ultra-low glare illumination for patient and clinical environments
  • Hotels & fine dining — warm, dimmable square pendant lighting for premium guest experience
  • High-end residential — dining room, kitchen island, and living area square pendant lighting

Specifications

Anti-Glare UGR 10–12
Input Voltage 200-240VAC / 100-277VAC
Power Factor PF > 0.9
SDCM < 3
CCT 1800K / 3000K / 3500K / 4000K / 5000K / 6000K
1800K / 4000K / 5700K (DIP selectable)
Dimming TRIAC / 0-10V / DALI
Beam Angle (Reflector) 15° / 30° / 45°
Color of Frame White / Black / Customized
Flicker Free 0.002 (Flicker Index)
Life Span 50,000 hrs
Warranty 5 Years

Model Options

Model Power Size CRI80 CRI90 CRI97
DA-FL14WD76 14W φ76 × L150mm 1,400–1,600 lm 1,300–1,400 lm 1,100–1,200 lm
DA-FL20WD96 20W φ96 × L150mm 2,300–2,400 lm 2,000–2,100 lm 1,800–2,000 lm
DA-FL32WD116 32W φ116 × L150mm 3,400–3,700 lm 3,000–3,300 lm 2,700–3,000 lm
DA-FL42WD142 42W φ142 × L160mm 4,400–4,800 lm 3,800–4,200 lm 3,400–3,700 lm
DA-FL52WD171 52W φ171 × L180mm 5,200–5,500 lm 4,800–5,000 lm 4,400–4,600 lm
DA-FL66WD205 66W φ205 × L210mm 6,500–7,000 lm 5,500–6,000 lm 5,100–5,500 lm
DA-FL14WDS76 14W φ76 × L150mm 1,400–1,600 lm 1,300–1,400 lm 1,100–1,200 lm
DA-FL20WDS96 20W φ96 × L150mm 2,300–2,400 lm 2,000–2,100 lm 1,800–2,000 lm
DA-FL32WDS116 32W φ116 × L150mm 3,400–3,700 lm 3,000–3,300 lm 2,700–3,000 lm
