SQE Series Pendant Spotlight - four variants white small white large black small black large on white background with Reflector/Lens TRIAC/0-10V/DALI 2700K-6000K 5 Years icons

SQE Series | Pendant Cylinder Spotlight

$0.00
Skip to product information
SQE Series Pendant Spotlight - four variants white small white large black small black large on white background with Reflector/Lens TRIAC/0-10V/DALI 2700K-6000K 5 Years icons

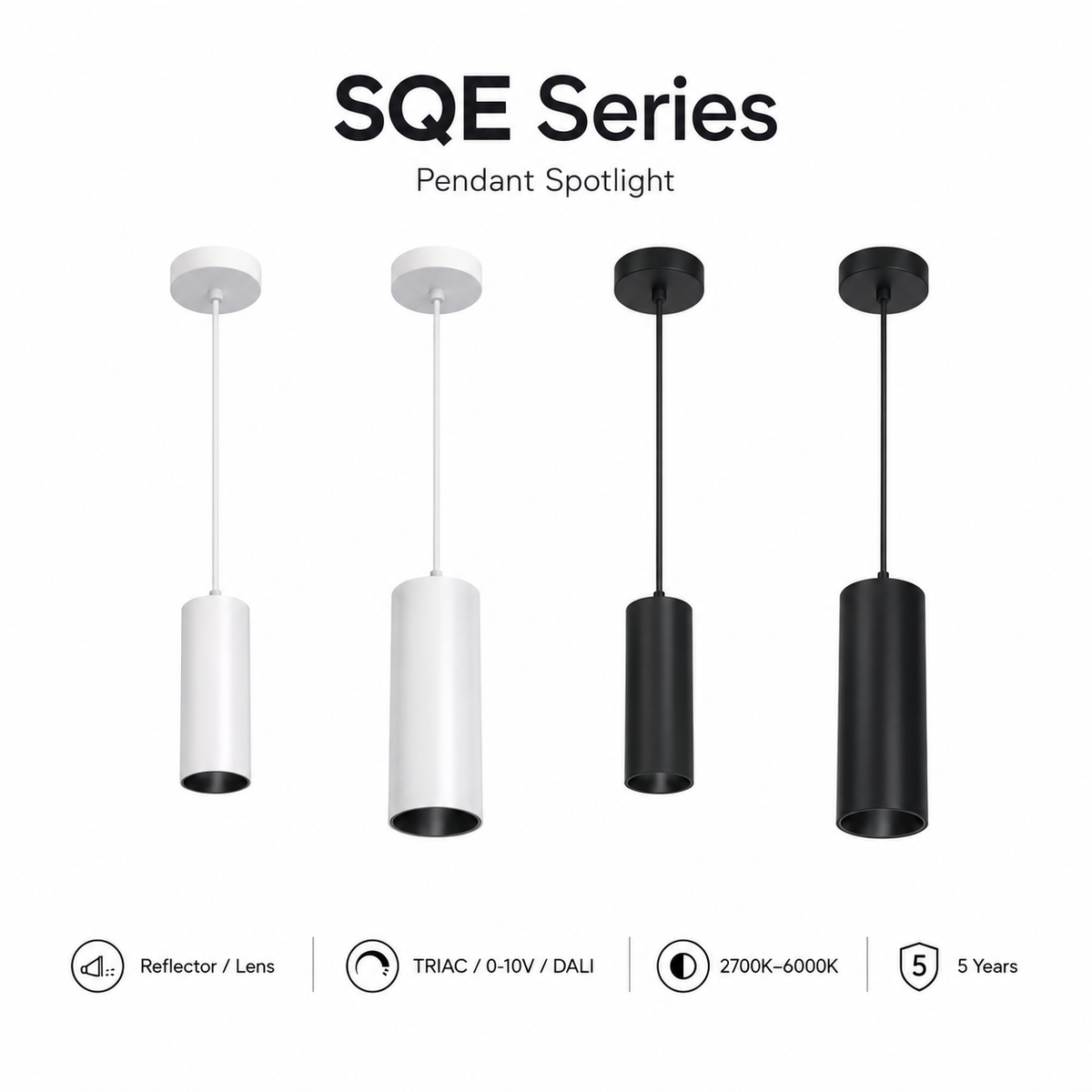

  • SQE Series Pendant Spotlight - four variants white small white large black small black large on white background with Reflector/Lens TRIAC/0-10V/DALI 2700K-6000K 5 Years icons

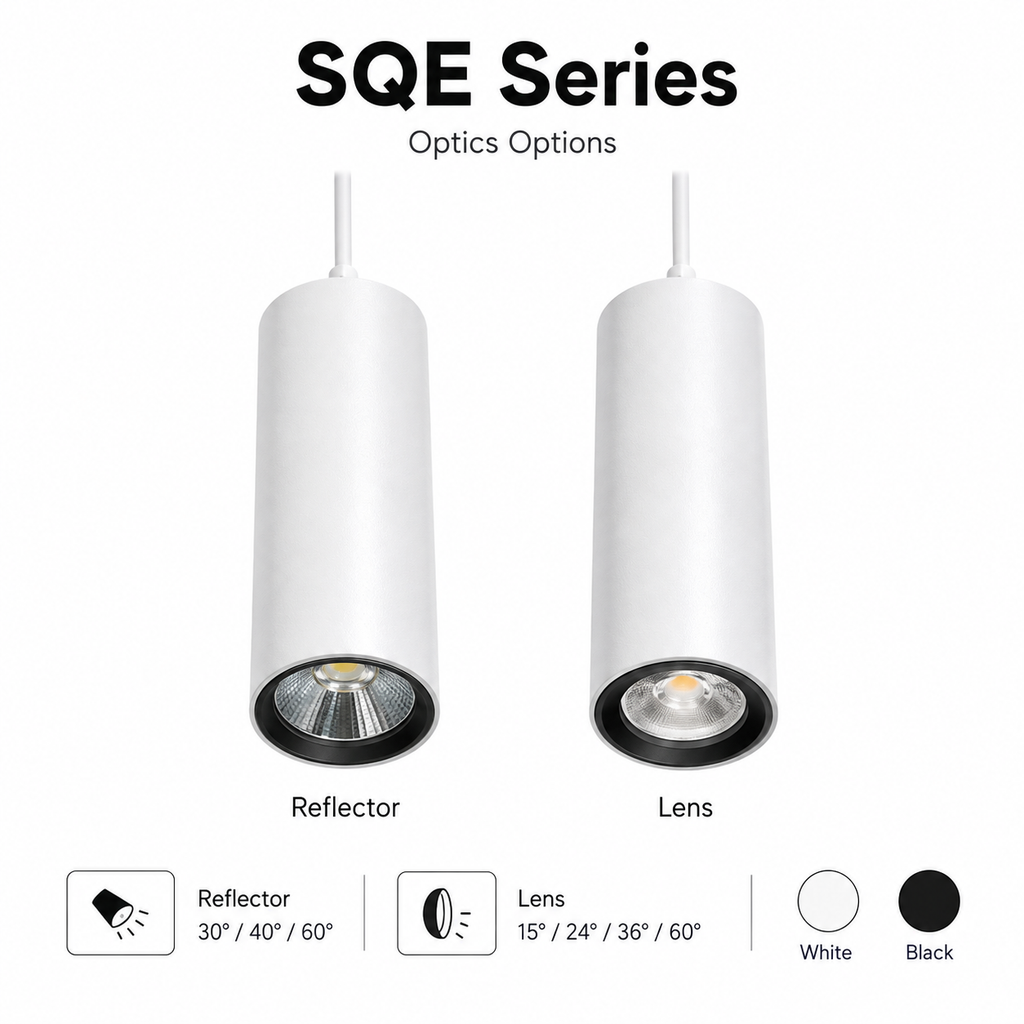

  • SQE Series Optics Options - Reflector 30/40/60 degree and Lens 15/24/36/60 degree white body close-up showing COB light source interior black ring White Black color options

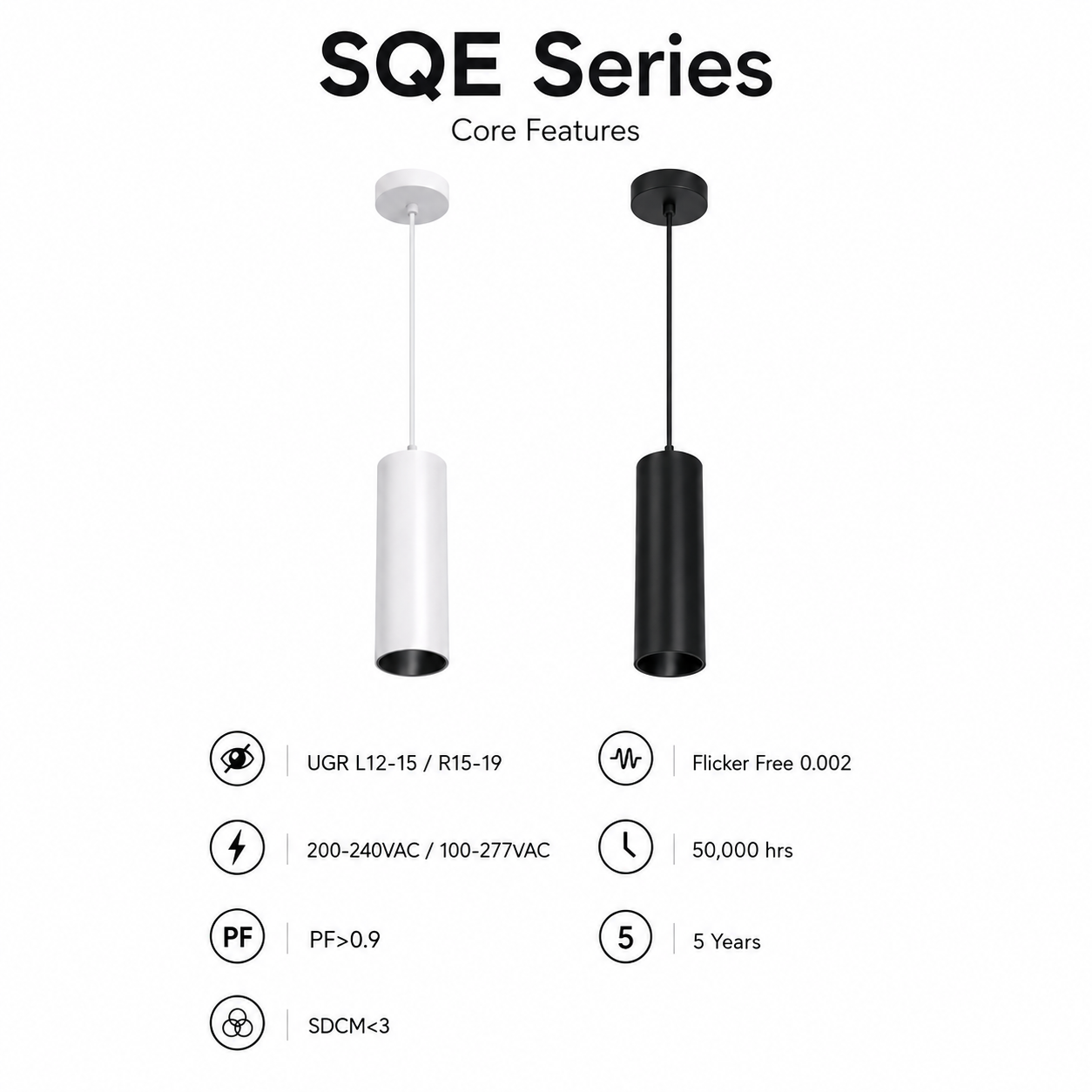

  • SQE Series Core Features - white and black pendant cylinder spotlight UGR L12-15 R15-19 Flicker Free 0.002 200-240VAC 100-277VAC 50000hrs PF>0.9 5 Years SDCM<3

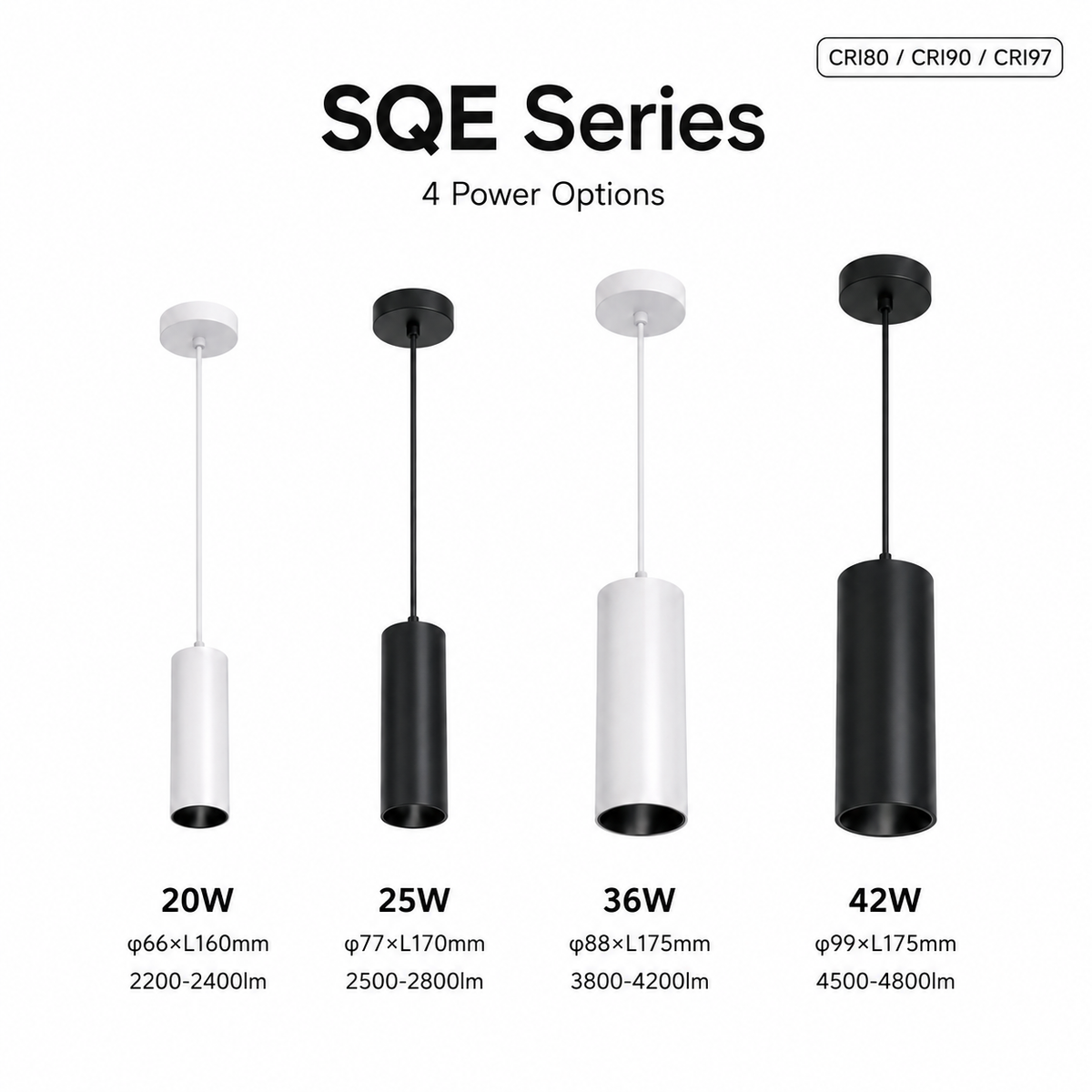

  • SQE Series 4 Power Options - 20W phi66xL160mm 2200-2400lm 25W phi77xL170mm 2500-2800lm 36W phi88xL175mm 3800-4200lm 42W phi99xL175mm 4500-4800lm CRI80 CRI90 CRI97 white and black variants

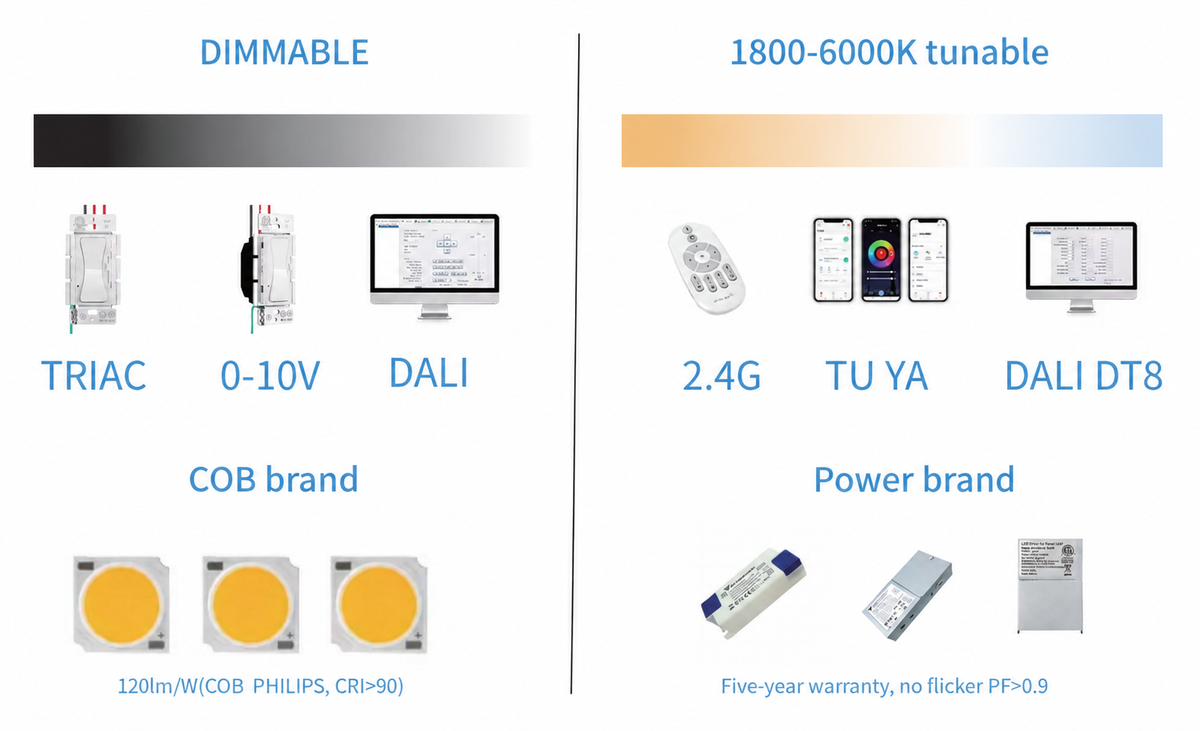

  • SQE Series Dimmable TRIAC 0-10V DALI and 1800-6000K tunable with 2.4G TU YA DALI DT8 smart control COB Philips 120lm/W CRI>90 and power brand five-year warranty no flicker PF>0.9

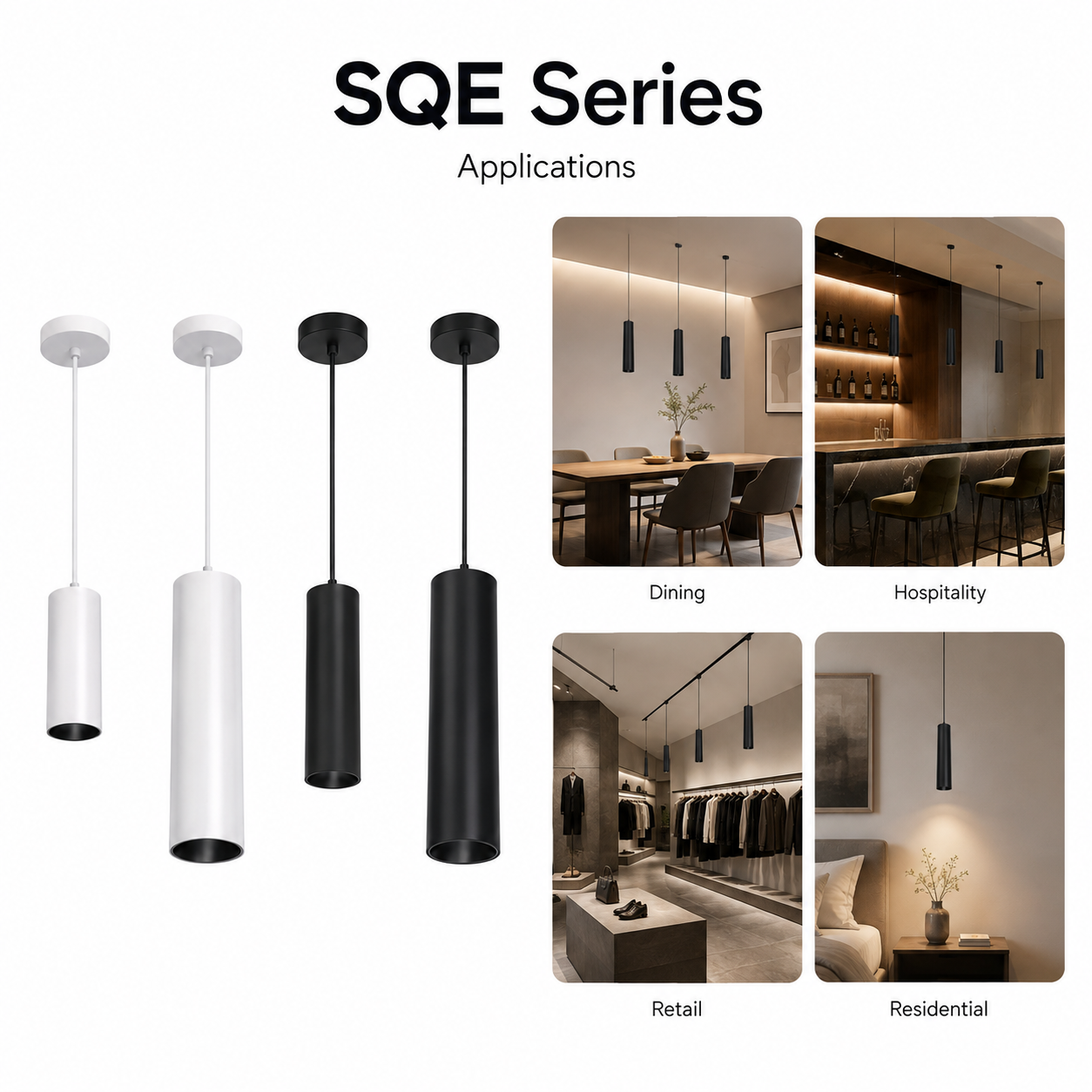

  • SQE Series Applications - Dining room hospitality bar retail store residential bedroom with white and black pendant cylinder spotlights in real installation scenes
  • SQE Series Pendant Spotlight - four variants white small white large black small black large on white background with Reflector/Lens TRIAC/0-10V/DALI 2700K-6000K 5 Years icons

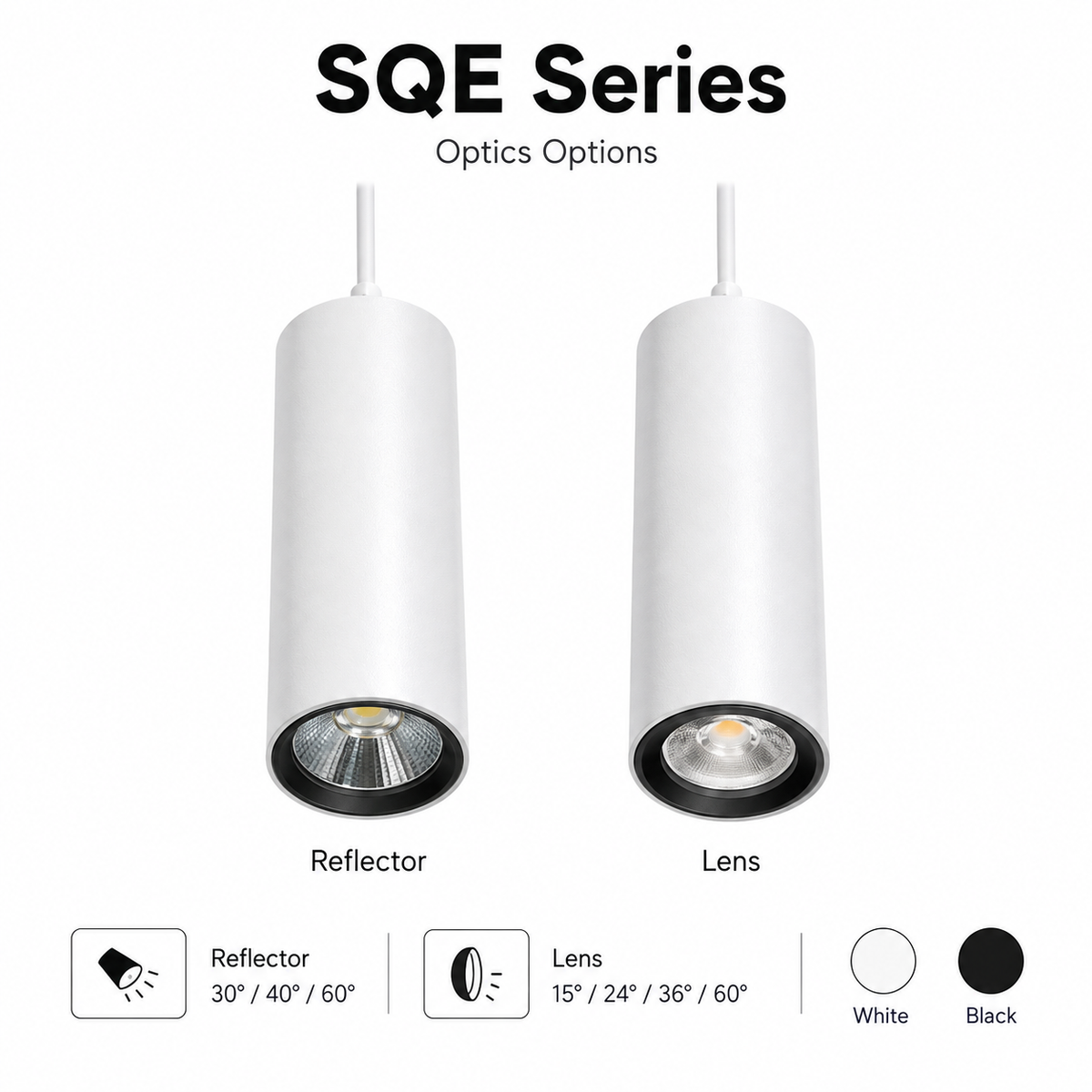

  • SQE Series Optics Options - Reflector 30/40/60 degree and Lens 15/24/36/60 degree white body close-up showing COB light source interior black ring White Black color options
  • SQE Series Core Features - white and black pendant cylinder spotlight UGR L12-15 R15-19 Flicker Free 0.002 200-240VAC 100-277VAC 50000hrs PF>0.9 5 Years SDCM<3
  • SQE Series 4 Power Options - 20W phi66xL160mm 2200-2400lm 25W phi77xL170mm 2500-2800lm 36W phi88xL175mm 3800-4200lm 42W phi99xL175mm 4500-4800lm CRI80 CRI90 CRI97 white and black variants
  • SQE Series Dimmable TRIAC 0-10V DALI and 1800-6000K tunable with 2.4G TU YA DALI DT8 smart control COB Philips 120lm/W CRI>90 and power brand five-year warranty no flicker PF>0.9
  • SQE Series Applications - Dining room hospitality bar retail store residential bedroom with white and black pendant cylinder spotlights in real installation scenes
SQE Series | Pendant Cylinder Spotlight

SQE Series | Pendant Cylinder Spotlight

$0.00

SQE Series — Pendant Cylinder Spotlight

The SQE Series is a premium pendant cylinder spotlight engineered for architects and interior designers who demand the highest levels of optical precision, color rendering, and installation elegance. Suspended from the ceiling on a pendant cable, the SQE Series delivers powerful, directional illumination with a refined cylindrical form that complements any contemporary interior aesthetic — from luxury retail and hospitality to corporate offices and art galleries.

Available in four power configurations from 20W to 42W, with CRI80, CRI90, and CRI97 options, the SQE Series provides the color rendering performance required by the most demanding retail and hospitality specifications. Beam angle flexibility is achieved through interchangeable Reflector (30°/40°/60°) and Lens (15°/24°/36°/60°) optics, enabling precise control of light distribution for any application. Two installation configurations (Type A and Type B) accommodate a wide range of ceiling and suspension requirements.

Features & Benefits

  • CRI80 / CRI90 / CRI97 Options: Industry-leading color rendering for luxury retail, hospitality, and art gallery applications where accurate color appearance is critical
  • Flexible Beam Optics: Reflector 30°/40°/60° and Lens 15°/24°/36°/60° — precise beam control for accent, general, and wash lighting
  • Two Installation Types: Type A and Type B configurations for maximum ceiling and suspension flexibility
  • UGR Anti-Glare Performance: UGR L12-15 / R15-19 for superior visual comfort in occupied spaces
  • Wide Voltage Range: 200-240VAC / 100-277VAC — compatible with global electrical standards
  • Three Dimming Protocols: TRIAC, 0-10V, and DALI — compatible with all major building management and smart lighting systems
  • Wide CCT Range: 1800K, 3000K, 3500K, 4000K, 5000K, 6000K — plus 1800K/4000K/5700K DIP selectable
  • Superior Color Consistency: SDCM<3 ensures uniform color appearance across all fixtures
  • Flicker-Free Technology: Flicker index 0.002
  • Frame Options: White, Black, and Custom colors
  • Long Service Life: 50,000 hours rated lifespan
  • 5-Year Warranty: Backed by DansLED’s comprehensive guarantee

Typical Applications

  • Luxury retail & boutiques — CRI97 pendant spotlights for accurate merchandise color rendering
  • Hotels & fine dining — warm, dimmable pendant lighting for premium guest experience
  • Art galleries & museums — precise beam control with CRI97 for faithful artwork illumination
  • Corporate offices & reception areas — UGR anti-glare pendant lighting for visual comfort
  • High-end residential — dining room, kitchen island, and living area pendant lighting

Specifications

Anti-Glare UGR L12-15 / R15-19
Input Voltage 200-240VAC / 100-277VAC
Power Factor PF > 0.9
SDCM < 3
CCT 1800K / 3000K / 3500K / 4000K / 5000K / 6000K
1800K / 4000K / 5700K (DIP selectable)
Dimming TRIAC / 0-10V / DALI
Beam Angle (Reflector) 30° / 40° / 60°
Beam Angle (Lens) 15° / 24° / 36° / 60°
Color of Frame White / Black / Customized
Flicker Free 0.002 (Flicker Index)
Life Span 50,000 hrs
Warranty 5 Years

Model Options

Model Power Size CRI80 CRI90 CRI97 Package
DA-PL20WE66 20W φ66 × L160mm 2200–2400 lm 2000–2100 lm 1800–2000 lm 44×29×33cm / 17.5kg ×20pcs
DA-PL25WE77 25W φ77 × L170mm 2500–2800 lm 2300–2600 lm 2100–2300 lm 50×30×39cm / 20.8kg ×20pcs
DA-PL36WE88 36W φ88 × L175mm 3800–4200 lm 3500–3800 lm 3200–3400 lm 56×31×33cm / 15.3kg ×15pcs
DA-PL42WE99 42W φ99 × L175mm 4500–4800 lm 4100–4400 lm 3700–4000 lm 56×31×33cm / 15.3kg ×15pcs
