XDL Series — IP65 Brushed Aluminum Deep Cylinder Downlight
The XDL Series is a premium brushed aluminum deep cylinder downlight engineered for environments that demand both architectural elegance and robust weatherproof performance. Featuring a full-body brushed aluminum cylinder construction with IP44 and IP65 waterproof ratings, the XDL Series installs confidently in bathrooms, covered outdoor areas, and damp commercial environments — without compromising on the premium aesthetic expected in high-end interiors.
Available in three standard sizes — 2″, 3″, and 3.5″ — with power configurations from 7W to 20W, the XDL Series provides a scalable solution for residential and commercial projects. With SDCM<3 color consistency, flicker-free performance, and a choice of 3000K, 4000K, and 6000K color temperatures, it delivers premium light quality in a distinctive, specification-grade package.
Features & Benefits
- Brushed Aluminum Construction: Full-body brushed aluminum cylinder for a premium architectural aesthetic and superior heat dissipation

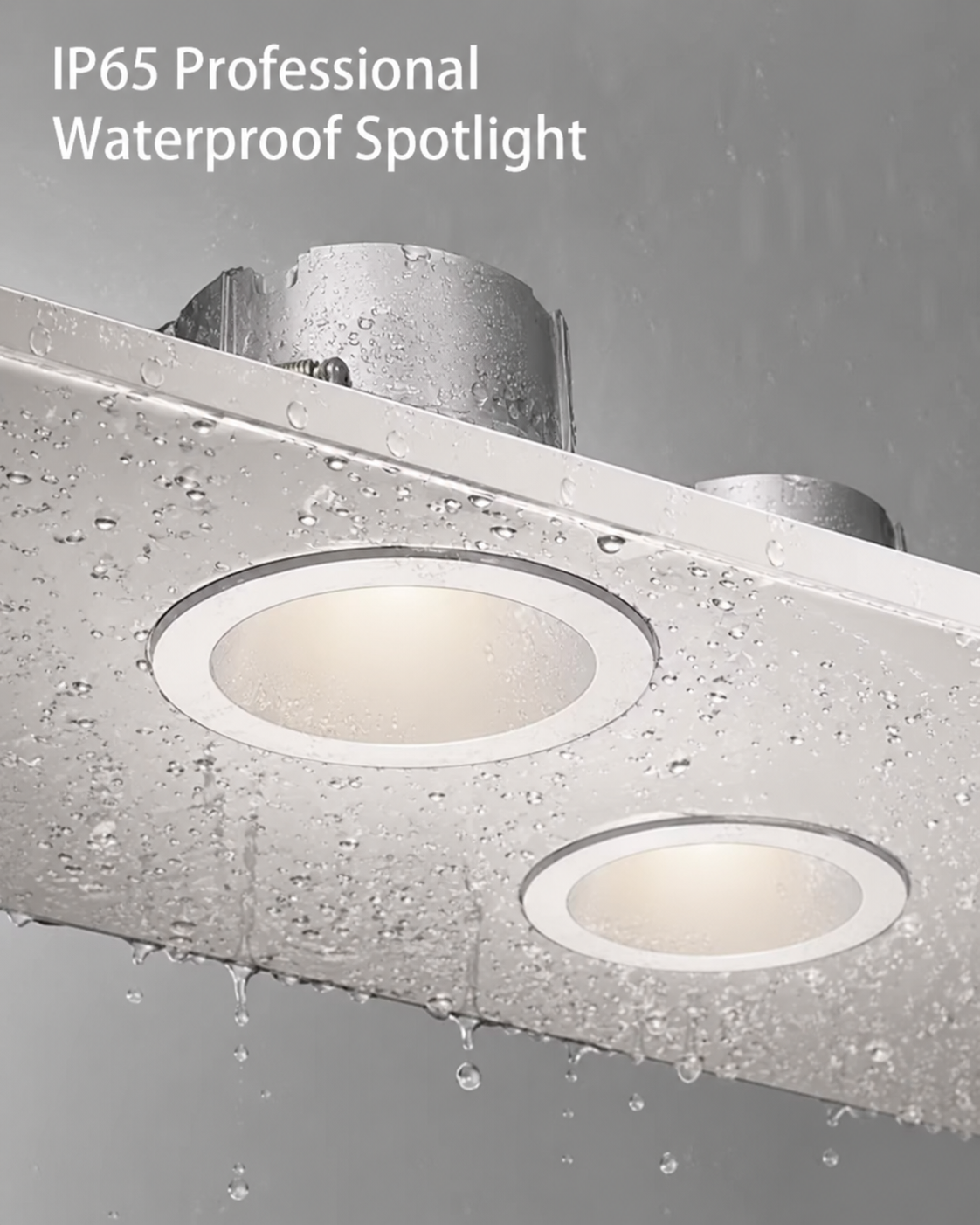

- IP44 / IP65 Waterproof: Dual waterproof rating options — suitable for bathrooms, wet rooms, and covered outdoor installations

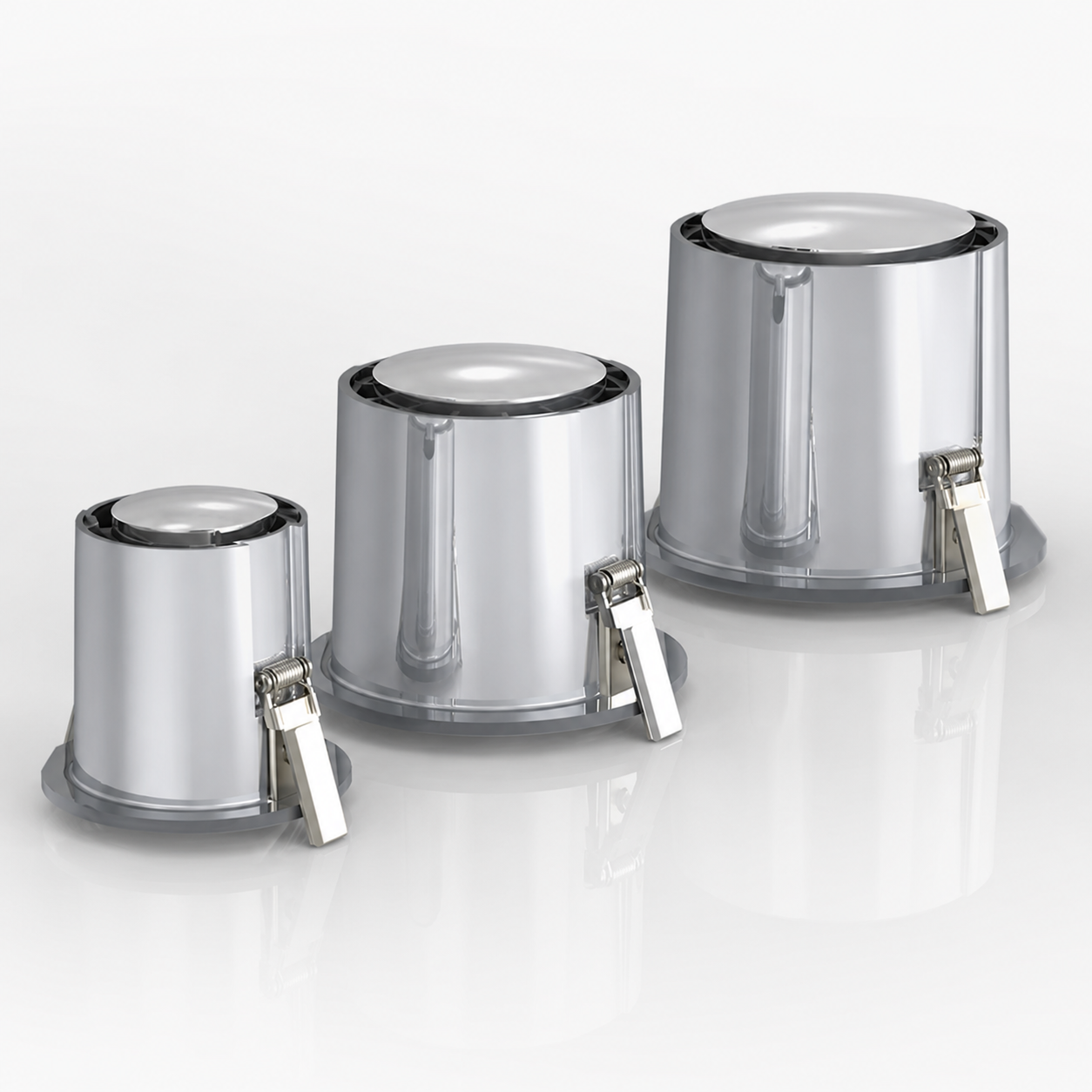

- Three Standard Sizes: 2″, 3″, and 3.5″ to suit any ceiling opening and project specification
- Superior Color Consistency: SDCM<3 ensures uniform color appearance across all fixtures in an installation
- Flicker-Free Technology: Flicker index 0.002 — protects occupant eye health and comfort
- High Power Factor: PF>0.9 for energy-efficient operation

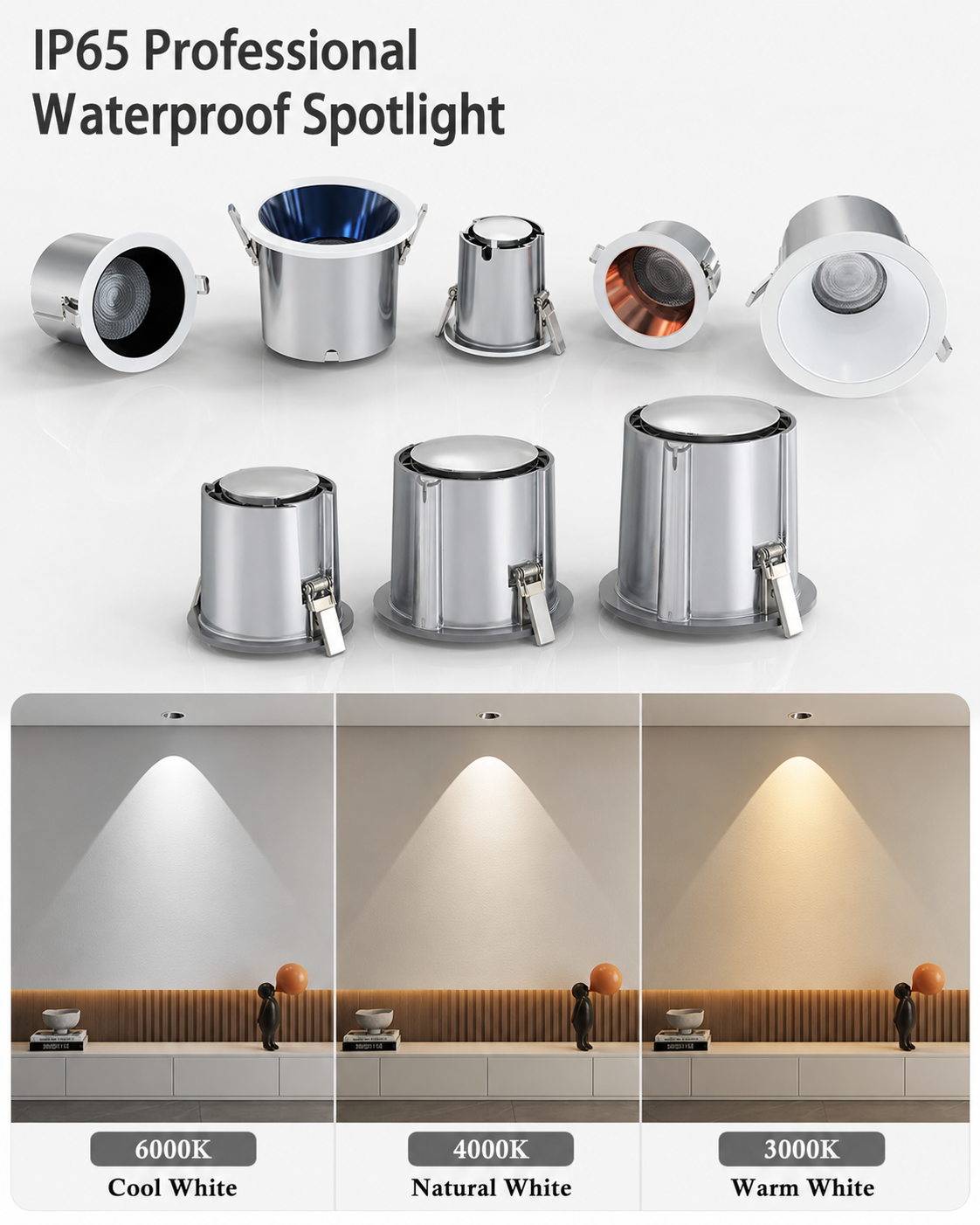

- Three CCT Options: 3000K, 4000K, and 6000K to suit any design intent
- Universal Voltage: 110V/220V for global compatibility
- Long Service Life: 50,000 hours rated lifespan
- 5-Year Warranty: Backed by DansLED’s comprehensive guarantee
Typical Applications

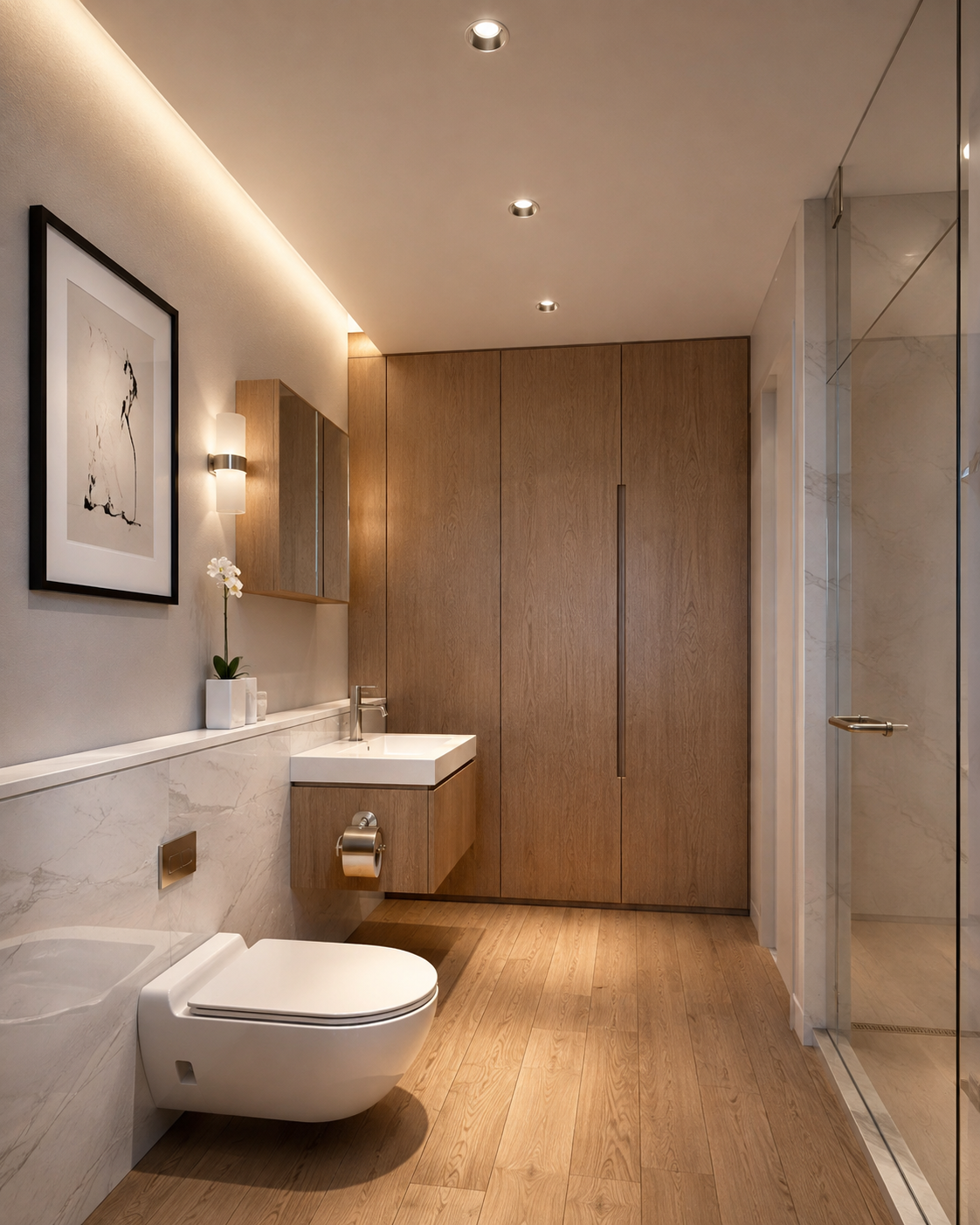

- Bathrooms & wet rooms — IP65-rated safe illumination for shower areas and steam rooms
- Covered outdoor areas — eaves, pergolas, and covered terraces requiring weather-resistant fixtures
- Luxury retail & hospitality — brushed aluminum aesthetic for premium interior environments
- Spa & wellness facilities — reliable, elegant lighting in high-humidity environments
- High-end residential — kitchens, bathrooms, and architectural feature lighting
Specifications
| Input Voltage | 110V / 220V |
|---|---|
| Power Factor | PF > 0.9 |
| SDCM | < 3 |
| Waterproof | IP44 / IP65 |
| CCT | 3000K / 4000K / 6000K |
| Flicker Free | 0.002 (Flicker Index) |
| Life Span | 50,000 hrs |
| Warranty | 5 Years |
Power & Size Options
| Model | Power | Size | Cut-out | Waterproof | CCT |
|---|---|---|---|---|---|
| 2in | 7–9W | φ63 × H70mm | φ55mm | IP44 / IP65 | 3000K / 4000K / 6000K |
| 3in | 9–12W | φ85 × H70mm | φ75mm | IP44 / IP65 | 3000K / 4000K / 6000K |
| 3.5in | 12–20W | φ105 × H83mm | φ95mm | IP44 / IP65 | 3000K / 4000K / 6000K |
