CDL Series | Trimless Adjustable Recessed Downlight
$0.00

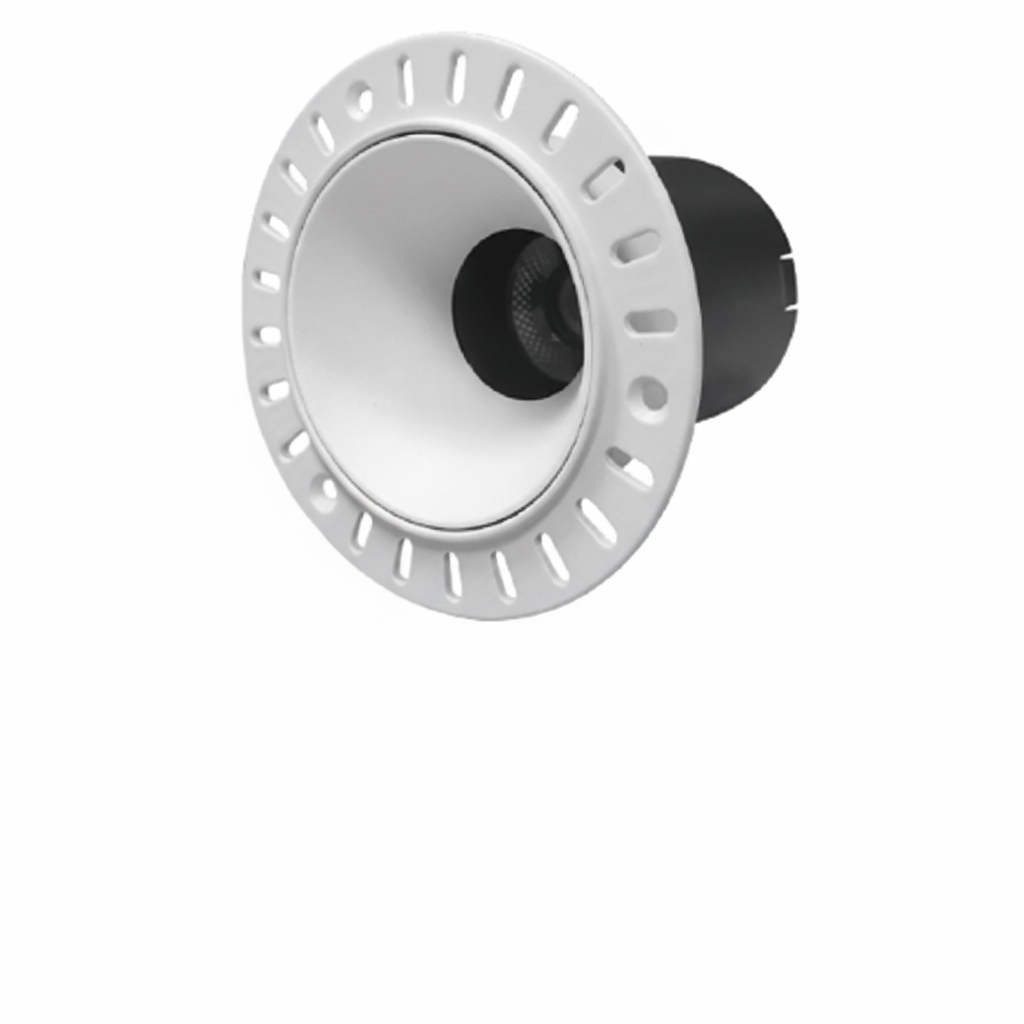

CDL Series — Trimless Adjustable Recessed Downlight
The CDL Series redefines architectural recessed lighting with its seamless trimless design and precision-engineered COB light source. Engineered to disappear into the ceiling plane, the CDL Series creates a clean, uninterrupted surface while delivering focused, high-quality light exactly where it is needed.
Available in four power options from 5W to 12W, and compatible with both circular and square ceiling cutouts, the CDL Series offers exceptional installation flexibility. With SDCM<3 color consistency, flicker-free performance, and a choice of Black Cup or White Cup inner reflectors, it is the preferred solution for premium hospitality, retail, and residential environments where aesthetics and performance are equally critical.
Features & Benefits
- Trimless Design: Flush ceiling integration for a seamless, architectural finish
- Dual Cup Options: Black Cup or White Cup inner reflector to match any interior palette
- Dual Installation Modes: Compatible with both circular and square embedded ceiling cutouts
- Superior Color Consistency: SDCM<3 ensures uniform appearance across all fixtures in an installation
- Flicker-Free Technology: Flicker index 0.002 — protects occupant eye health and comfort
- Multi-CCT Options: 3000K, 4000K, and 6000K to suit any design intent
- High Power Factor: PF>0.9 for energy-efficient operation
- Two Frame Colors: White and Black to complement any interior aesthetic
- Universal Voltage: 110V/220V for global compatibility
- Long Service Life: 50,000 hours rated lifespan
- 5-Year Warranty: Backed by DansLED’s comprehensive guarantee
Typical Applications
- Luxury hotels & resorts — seamless ceiling aesthetics with precision accent lighting
- High-end retail & boutiques — merchandise accent with invisible fixture presence
- Art galleries & museums — precise beam control without visual distraction
- Premium residential — living rooms, bedrooms, and corridors
- Restaurant & hospitality — intimate, layered atmosphere with clean ceiling lines
Specifications
| Input Voltage | 110V / 220V |
|---|---|
| Power Factor | PF > 0.9 |
| SDCM | < 3 |
| CCT | 3000K / 4000K / 6000K |
| Cup Color | Black / White |
| Color of Frame | White / Black |
| Installation Type | Circular & Square Embedded |
| Flicker Free | 0.002 (Flicker Index) |
| Life Span | 50,000 hrs |
| Warranty | 5 Years |
Power & Size Options
| Power | Dimension | Cut-out | Lumen Output |
|---|---|---|---|
| 5W | φ70 × H55mm | φ75mm | 600 lm |
| 7W | φ70 × H55mm | φ75mm | 840 lm |
| 9W | φ100 × H85mm | φ95mm | 1,080 lm |
| 12W | φ100 × H85mm | φ95mm | 1,440 lm |
